Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
LANBOO
-
Model Number:
-
LB22B2
-
Product name:
-
LB22B2
-
Product type:
-
Metal Push Button Switch
-
Operation type:
-
Self-locking / Self-resetting
-
Head shape:
-
Flat head/High head
-
Mounting Hole Size:
-
22mm
-
LED color:
-
Red/Green/Blue/Yellow/White
-
LED Voltage:
-
2V/3V/6V/12V/24V/36V/110V/220V/others
-
Mechanical Life:
-
300000 Times
-
Electrical Life:
-
100000 Times
-
Application:
-
Low Power Equipment
-
Certification:
-
CCC CE ROHS ISO9001
Quick Details
-
Protection Level:
-
IP65
-
Max. Current:
-
3A/5A/7A
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
China
-
Brand Name:
-
LANBOO
-
Model Number:
-
LB22B2
-
Product name:
-
LB22B2
-
Product type:
-
Metal Push Button Switch
-
Operation type:
-
Self-locking / Self-resetting
-
Head shape:
-
Flat head/High head
-
Mounting Hole Size:
-
22mm
-
LED color:
-
Red/Green/Blue/Yellow/White
-
LED Voltage:
-
2V/3V/6V/12V/24V/36V/110V/220V/others
-
Mechanical Life:
-
300000 Times
-
Electrical Life:
-
100000 Times
-
Application:
-
Low Power Equipment
-
Certification:
-
CCC CE ROHS ISO9001
| Mounting Aperture | 22mm |

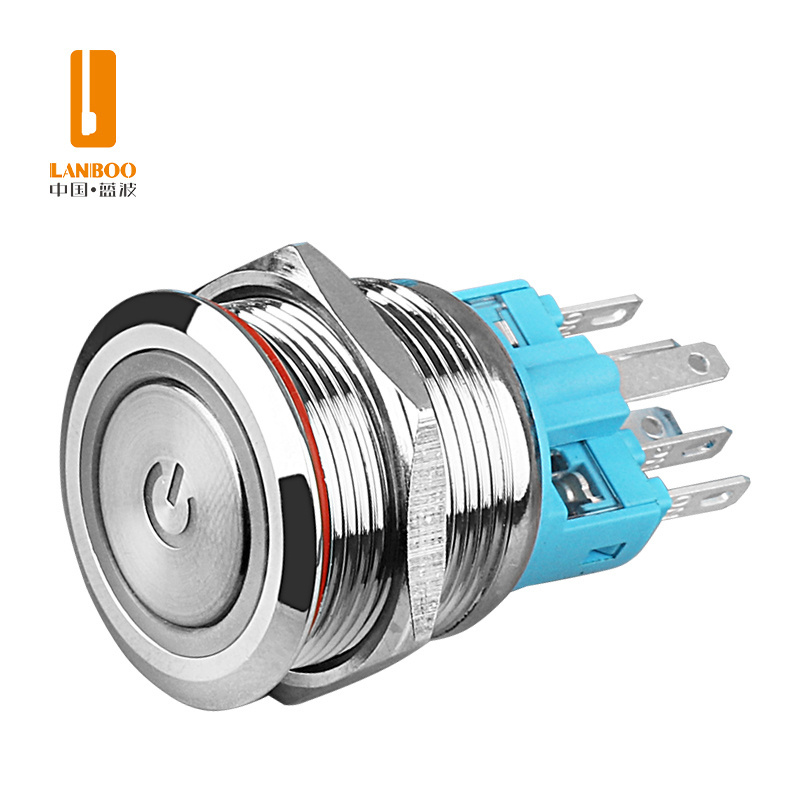

| Serial Number | LB22B2 Metal push button switch |
| Head shape | Flat Head |
| Switch combination | Self-locking / Self-recovering |
| Action form |
1NO1NC-1 Normally Open And 1 Normally Closed Contact, Quick Acting Single Contact |
| Waterproof level | IP65, anti-collision IK10 (refer to GB/T 20138) |
| Heating current | Ith: 10A/250VAC |
| Working environment | -40°C~+80°C (non-vacuum state, without freezing) |
| Insulation resistance | ≥1000MΩ |
| Contact resistance | ≤50mΩ |
| LED voltage | 9-24V, 220V / Customized: 3-8V,25-48V,110V |
| Resistive load |
AC-15:110V:7A, 220V:7A, DC-13:12V/24V:7A |
| Inductive load |
AC-15:110V/220V:2.5A, DC-13:110V:2.5A |
| Glowing shape | Ring/Ring+Power Symbol / Customized: Custom Pattern Symbol |
| Glow color | Red, Green, Blue / Customized: Yellow, White |
