Quick Details
-
Material:
-
other
-
Function:
-
other, 2A Fast Charging
-
Brand Name:
-
vapcell
-
Model Number:
-
U2
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
VAPCELL U2 charge
-
Output:
-
0.5A/1A/2A
-
Warranty:
-
12Mouths
-
Certificate:
-
FCC CE ROHS
-
Color:
-
black
-
weight:
-
380g
-
Keywords:
-
vapcell charger
-
Package:
-
USB
-
Use:
-
BATTERY
Quick Details
-
Type:
-
Electric
-
Port:
-
1 x USB
-
Usage:
-
for battery
-
Material:
-
other
-
Function:
-
other, 2A Fast Charging
-
Brand Name:
-
vapcell
-
Model Number:
-
U2
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
VAPCELL U2 charge
-
Output:
-
0.5A/1A/2A
-
Warranty:
-
12Mouths
-
Certificate:
-
FCC CE ROHS
-
Color:
-
black
-
weight:
-
380g
-
Keywords:
-
vapcell charger
-
Package:
-
USB
-
Use:
-
BATTERY
1) Parameters:
|
Model |
U2 |
|
Input |
5V 2A |
|
|
0.5A/1A/2A |
|
DC 4.35V 0.5A × 2 / 1A × 2 / 2A × 1 |
|
|
DC 3.65V 0.5A × 2 / 1A × 2 / 2A × 1 |
|
|
DC 4.20V 0.5A × 2 / 1A × 2 / 2A × 1 |
|
|
DC 1.48V 0.5A × 2 |
|
|
USB 5V 1A |
|
|
Package Content |
Charger, USB cable, Manual |
|
Notes :Batteries are excluded |
|
Apply to (battery diameter:10-26mm,length:34-75mm)
Li-ion/Lifepo4:
10340,10440,14500,16340,16650,17500,17650,17670,
18350,18490,18500,18650,20700,21700,22650,26500,26650
Ni-MH/Ni-Cd:
AAAA,AAA,SC,C,D
1) Features:
l Easy to use,smart 2A charger
l USB output to charge mobile phone
l Top surface have a button top ty p e feature to make contact in recessed battery
l Sliding chute is long enough for 21700.20700 size ,including button top or PCB 20700/21700
l It is compatible with every type of rechargeable battery.
l Two batteries and USB products can be simultaneously charged.
l Three charging current parameters (0.5A/1.0A/2.0A)
l Four LED indicators show the charging status (25%, 50%, 75%, 100%), and also shows the battery type, if inserted into the battery (1.2 V in Ni-Mh, 3.2V in IFR,3.7V in Li-Ion, 3.8V in li-ion)
l It is automatically able to identify li-ion, Ni-Mh, But, you need to adjust the charging mode for 3.2V IFR(lifepo4) and 3.8V in the li-ion battery.
l Charging protection, over-discharge protection and protection of polar reverse.also, it can detect a broken battery.
l Certified by FC C CE ROHS
3. Precaution
l I ndoor condition only !!
l Don’t take apart your charger.
l Keep it dry when you don’t use it .
l Please don’t charge leakage, corrosion or dead battery
l Please remember to cut off the power when you don’t use
l Please don’t be exposed your charger to rain or water or snow.
l Charger are getting hot during operation for a long time, handle with care!
l T his charge r is only for charging the cylindrical lithium-ion ( li-ion 3.7 v , 3.8 v ), Ni-Mh / Ni-Cd, LiFePO4 ( IFR ) batteries.
l Please read these instructions before use; pay attention to the recommended charging current, never choose the wrong charging current .
l W hen the charge with 5V USB AC adapter, 2A-current AC adapter recommended
l P lease cut off the electricity and remove the battery from the charger when charging is complete.
l Data guideline of chargers are for your reference only ; please refer to professional instrumentation, if you need accurate data .
l In order to reduce shock, please cut off the power when you clean the charger.
l Don’t repair yourself. Please contact the professional maintenance person when you need.
l Please make sure the correct program and setting are chosen and set . Incorrect program or setting may damage the charger or case fire or explosion
Do not misuse in any way! Use for intended purpose and function only

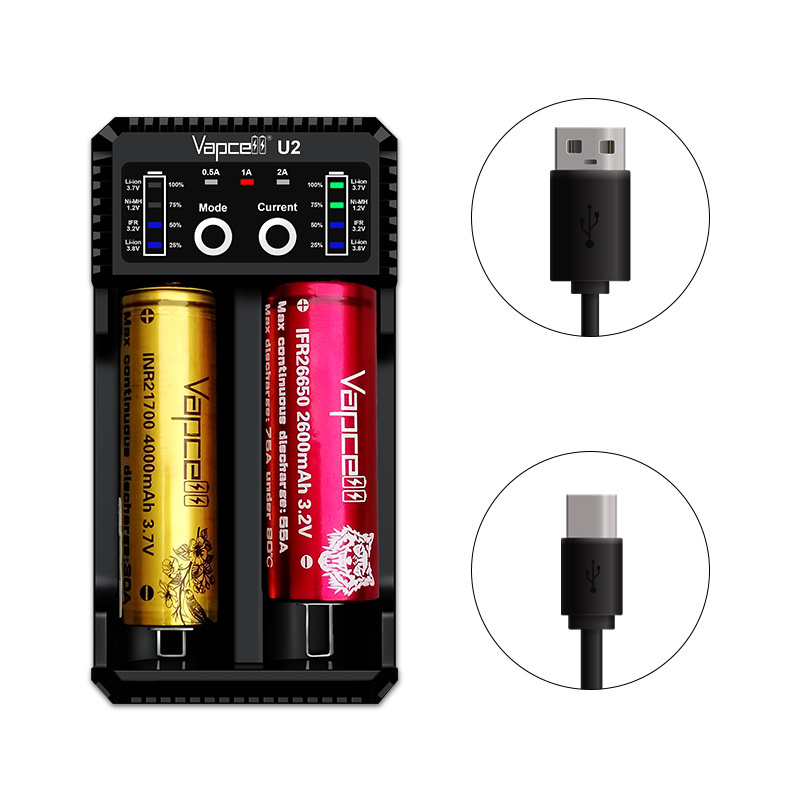

Real pictures:
Natural Packing
Each 2 batter ies packed in one Vapcell zipper box or plastic case , 10kg batteries in standard Vapcell export carton.
