Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
Medium Duty 01 Series-Orange PU
-
Size:
-
3 inch/4 inch/5 inch
-
Function:
-
Fix/Swivel/Screw/Bolt hole/Dual Brake/Side Brake
-
Wheel Material:
-
Orange PU tread+Gray PP core
-
Rack Material:
-
Pressed steel (Zinc plated)
-
Bearing:
-
Without Bearing
-
Size of Plate:
-
93*62 mm
-
Screw Size:
-
M10*30/M12x30/M16x30
-
Load Capacity:
-
80 kg/100 kg/120 kg
-
Installation:
-
Install with nut, axle and bush
Quick Details
-
Material:
-
Polypropylene, POLYURETHANE, Steel
-
Type:
-
Plate Casters, Stem Casters, Bolt-Hole Casters, Side-Mount Casters, Fix Casters
-
Model Number:
-
MD01-OPU
-
Warranty:
-
1 year
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
Medium Duty 01 Series-Orange PU
-
Size:
-
3 inch/4 inch/5 inch
-
Function:
-
Fix/Swivel/Screw/Bolt hole/Dual Brake/Side Brake
-
Wheel Material:
-
Orange PU tread+Gray PP core
-
Rack Material:
-
Pressed steel (Zinc plated)
-
Bearing:
-
Without Bearing
-
Size of Plate:
-
93*62 mm
-
Screw Size:
-
M10*30/M12x30/M16x30
-
Load Capacity:
-
80 kg/100 kg/120 kg
-
Installation:
-
Install with nut, axle and bush
Company Introduction
Details Images
Products Description

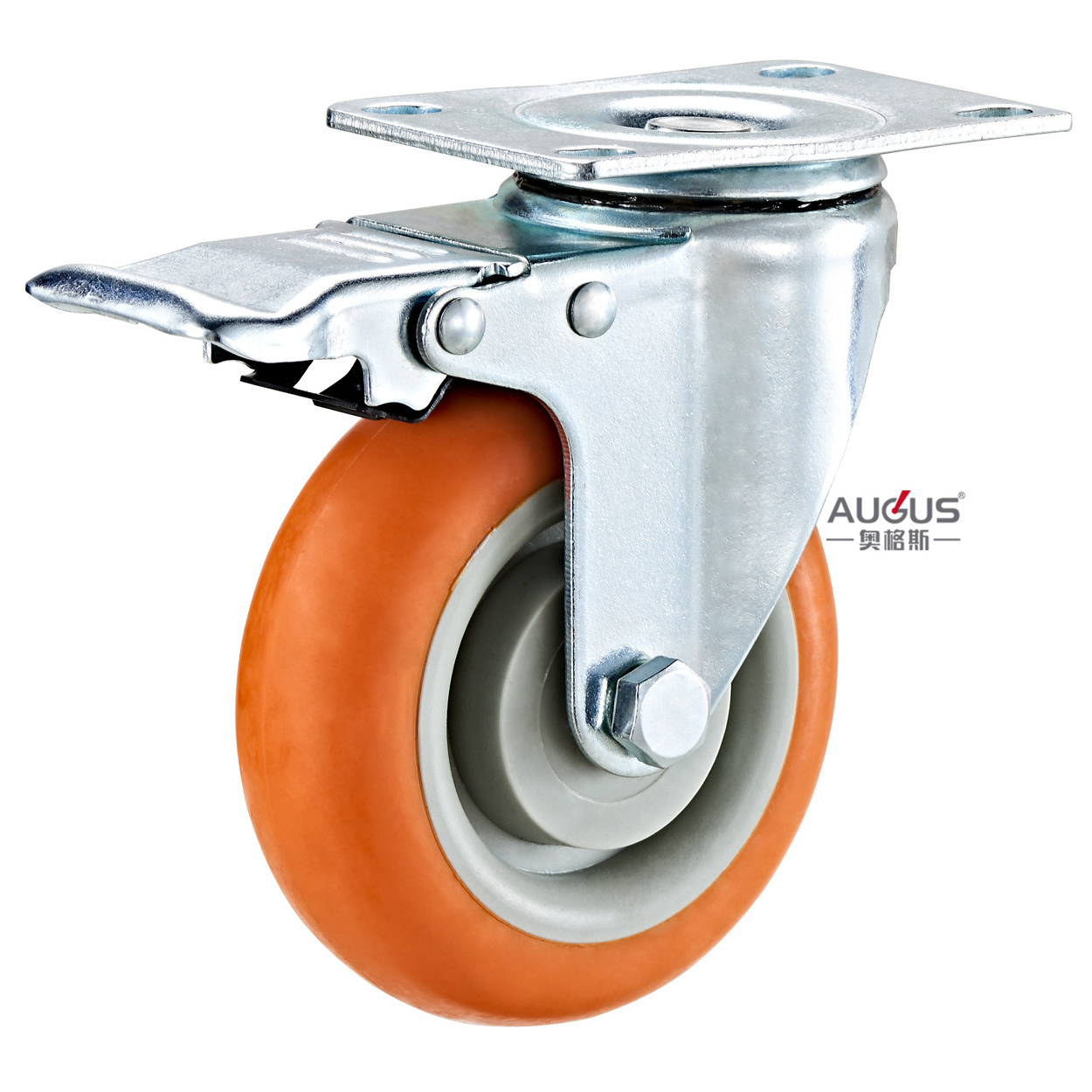

Medium Duty 01 Series-Orange PU
Description: Fix, Swivel, Screw, Bolt hole
Brake mode: Total brake, Side brake, Plastic brake
Bracket mode: Housing made of Pressed Steel, bright zinc plated, blue zinc plated, black lacquer, chrome plated.
Install with nut, axle and bush, the wheel tread is made of PU (Polyurethane), the wheel center is made of PP (Polypropylene), without bearing
Product Paramenters
|
Details
|
3 Inch
|
4 Inch
|
5 Inch
|
|
Wheel Diameter (mm)
|
75
|
100
|
125
|
|
Tread Width (mm)
|
32
|
32
|
32
|
|
Overall Height (mm)
|
105
|
130
|
155
|
|
Offset (mm)
|
30
|
30
|
30
|
|
Load Capacity (kgs)
|
80
|
100
|
120
|
|
Size of Plate (mm)
|
93x62
|
93x62
|
93x62
|
|
Hole Centre Distance (mm)
|
73.5x44.5
|
73.5x44.5
|
73.5x44.5
|
|
Screw Size (mm)
|
M12x30
|
M12x30
|
M12x30
|
