Quick Details
-
Voltage:
-
380-440V
-
Disc Dia.:
-
N/A
-
No Load Speed:
-
0.25m/s
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Amerigo
-
Model Number:
-
A-900E
-
Heating System:
-
Diesel Burner
-
Color:
-
Gray or Orange
-
Product name:
-

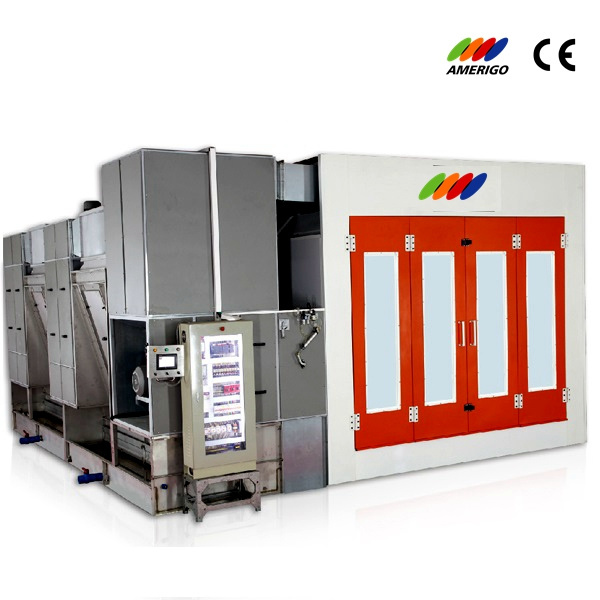

Amerigo CE ECO Water Based Paint Car Spray Booth/Car Painting Oven
-
Lighting System:
-
Led light with reflective stain steel plate
-
Warranty:
-
1 Year
-
Filters:
-
America Purafil purification system
-
Control System:
-
PLC control
-
Usage:
-
Auto Spray Booth
-
Character:
-
ECO Friendly
-
Motor:
-
Centrifugal insulated fans
Quick Details
-
Power:
-
24.8KW
-
External Size:
-
7000*6200*3610mm
-
Internal Size:
-
6900*4000*2800mm
-
Voltage:
-
380-440V
-
Disc Dia.:
-
N/A
-
No Load Speed:
-
0.25m/s
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Amerigo
-
Model Number:
-
A-900E
-
Heating System:
-
Diesel Burner
-
Color:
-
Gray or Orange
-
Product name:
-
Amerigo CE ECO Water Based Paint Car Spray Booth/Car Painting Oven
-
Lighting System:
-
Led light with reflective stain steel plate
-
Warranty:
-
1 Year
-
Filters:
-
America Purafil purification system
-
Control System:
-
PLC control
-
Usage:
-
Auto Spray Booth
-
Character:
-
ECO Friendly
-
Motor:
-
Centrifugal insulated fans
| Model | A900E |
| External dimension/mm | 7000*6200*3610 (L*B*H) |
| Internal dimension/mm | 7000*6200 *361 0 (L*B*H) |
Foundation and floor
| Loading capacity of galvanized grating | 700Kg/each wheel |
| Surface area of rear exhaust box | 27m2 full grid |
| Metal basement | Metal basement of 350mm galvanized |
| Drive-in ramps | Optional |
| Cabin system | Wallboard |
Good heating-insulation and soundproof. Contruction was European style design. Two layer thick rock-wool panel, EPS colorful steel skin board, wall panel 60mm. |
| Main door | Front door EPS steel 80mm with tongue& groove style compound contruction. 4 folded with safety glass window. Door size 3300(B)*2700(H)mm | |
| Escape door | 1 unit, 700*1800mm (W*H), with safety glass windows, aluminum alloy frame | |
| Basement | Galvanized steel sheet metal basement | |
| Ceiling | 50mm thickness of rock wool insulation board | |
| Personnel door | 800*2000mm (B*H) with door shutter | |
| Moveable hanger | 3M moveable system, special for spare parts painting (optional) | |
| Moveable curing lamp | Ceiling mounted, 3 head track curing lamp (optional) | |
| Circulation system | Intake fan | 2 sets of double-intake centrifugal fans for intake air, 4kw each, air capacity 25000m3/h in total |
| Exhaust fan | 1 set of double-intake centrifugal fans for intake air, 5.5kw , air flow 15000m3/h in total | |
| Purification system | Pre-filter, 600g high efficiency filter (ceiling filter), floor filter (fiberglass filter) | |
| Heating system | Italy riello G20 diesel burner, 200000k cal/h. stailess stell heat exchanger, argon arc welding. auto-damper for changing spraying and baking | |
| Lighting system |
Ceiling: 8 group, each group 4*36w, total 1152w. LED light with reflective stainless steel plate. toughened glass, protection class can reach IP65. Side lights: 10 group, each group 2*36W, total 720w. |
|
| Brightness: >1400 LUX, IP66 level | ||
| Purification |
Prefilter: G4 level filter, can capture granules larger than 5mm, filter efficiency readh to 90>E≥70% (USA L6 standard) F7 belt-filter can heat-resistant to 90 . C, is EUR DIN 53438-F1 & USA UL 900-class 2 standard Ceiling: 6 gropu of EU5 high efficiency filters Exhaust filter: Bottom G3 level fiber glass paint leakage-proof cotton blanket Outlet filtration : 2 set patent water rotation device, 2 set of American Purafil VOC absorber system |
|
| Ventilation system | Direct deive motor (fresh air) | 1×7.5KW, 970rpm, 380V, 50Hz, Simens motor, Germany Reiz draught fan CE certified |
| Direct drive motor (exhaust air) | 1 ×7.5KW, 970rpm, 380V, 50Hz, Simens motor, Germany Reiz draught fan CE certified | |
| Duct configuration | 5 section exhaust tube | |
| Fan capacity | 28000m 3 /h | |
| Air flow speed | No-load +/-0.25m/s | |
| Heating system | Install position: Left side | |
| Heating exchanger | Stainless steel 1Gr18Ni9ti (Electric/CNG heating optional) | |
| Heating exhanger capacity | 232KW (26000k cal/h) | |
| Max. drying temperature | 80 . C | |
| Heating time | 3-6 (from 2 0 . C to 6 0 . C ) Max tem. 80 . C | |
| Heating type | RG5D (260.000kcao/H) | |
| Control box | Control system | IC MCU control system, AC control system, pressure self-balancing control, power saving 30%-50% |
| Overpressure manometer | √ | |
| Function | Equipped with light switch, temperature, time settings, painting, spray pait, paint up thermostat gateway fault alrm, auto power-off function etc. | |
| With PLC Programmable logic computer control (Touch screen), 3D display, easy operation | ||
| Frequency converting control | √ | |
| Overpressure manometerr | √ | |
| Suspend control system | √ | |
Packaging: Metal frame
Delivery time: 30 days
1 year warranty after container arrive at port of destination
OEM & ODM service
Spare parts will be replaced within one week, buyer bear the shipping cost
