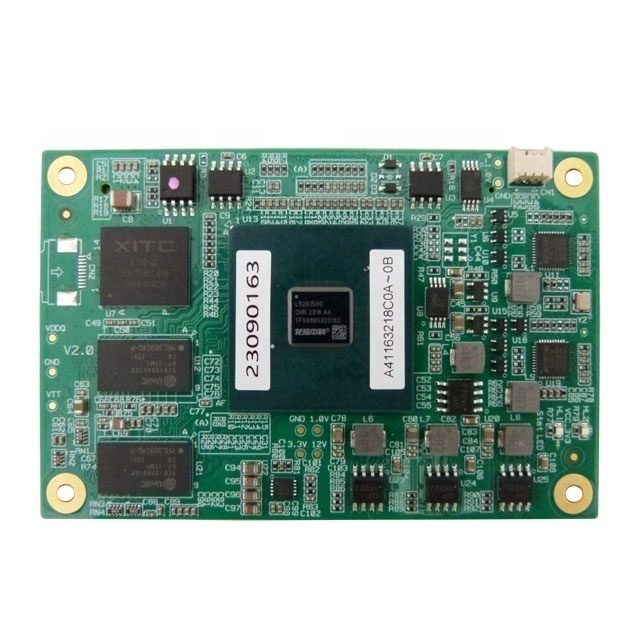

New Dual-Core 2K1500 Processor Industrial Mini Module 84mm*55mm COM-Express Single DDR3 SATA PCIE Embedded Desktop

New Dual-Core 2K1500 Processor Industrial Mini Module 84mm*55mm COM-Express Single DDR3 SATA PCIE Embedded Desktop

FOB Reference Price: Get Latest Price

≥1 Pieces

US $257

≥50 Pieces

US $252

≥100 Pieces

US $244

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Memory Type:: DDR3

Chipset:: Loongson 2K1500

FSB / HT:: 1.2GHz

Place of Origin:: Tianjin, China

Quick Details

Maximum Ram Capacity:: <2 GB

Application:: Desktop

Form Factor:: COM-Express

Memory Type:: DDR3

Chipset:: Loongson 2K1500

FSB / HT:: 1.2GHz

Place of Origin:: Tianjin, China

Product Description

Product Specification	SMLS_2K1500_AI_OV
Dimensions	84mm×55mm
Memory	On-board DDR3 2GB
EMMC	8GB
Design specifications	referring to the PICMG COM Express Type10 pin definition
Package	Static Electricity Bag+foam+carton

Product Features

* Processor: Loongson 2K1500 dual-core processor, with a maximum clock frequency of 1.1GHz.
* Memory: On-board 2GB DDR3 industrial-grade domestic memory chips, optional 4GB.
* Storage: On-board 8GB eMMC, optionally expandable up to 128GB.
* Power supply options of 12V or 5V, supporting a wide voltage range of 4.5V to 16V with auto-start on power-up.
* All electronic components sourced from Chinese brands.

Product Specification

Item	Description
Processor/Chipset	CPU	Loongson 2K1500
		Number of Cores	2 cores
		Clock Frequency	1.1GHz（TDP，subject to final release by the manufacturer）
Memory	Type	On-board DDR3
Memory		Capacity	Standard 2GB, optional 4GB
Storage	FLASH	On-board SPI NOR FLASH, 16MB capacity
Storage		EMMC	Standard 8GB, optional up to 128GB
Expansion Interfaces	USB	4 USB 2.0 HOST, 1 USB 2.0 OTG
		SATA	1 SATA 3.0 interface
		PCIE	Default configuration: 1 PCI-E 2.0 x4 (PCIE0) and 4 PCI-E 2.0 x1 (PCIE1); Optional configurations: 6 PCI-E 2.0 x1 or 2 PCI-E 2.0 x4; PCIE1 can be configured as EP Mode;
		RGMII	2 Gigabit Ethernet interfaces, with the option for Gbe1 to support 1 RGMII;
		Serial Ports/ Local Bus Interface	Default 12 TTL serial ports, with 1 designated as a debug port; Optionally, 8 serial ports can be multiplexed with the Local Bus, supporting FPGA expansion
		I2C	Supports 3 independent I2C interfaces
		SPI	2 independent SPI ports, with 1 supporting 2 chip selects, accommodating 3 external devices
		CAN	6 CAN 2.0 interfaces
		SDIO	1 SDIO, default configuration for 4 GPI and 2 GPO
		RTC	Supports external RTC
		GPIO	Standard 22 GPIOs (including GPIOs reused from SDIO pins)
Power	Power-On Modes	AT mode: auto-start on incoming call;
		Input Voltage	Typical DC12V or DC5V, supports input range of 4.5V to 16V
		Power Consumption	5W (typical power consumption)
Physical Parameters	Dimensions (W×D)	84mm×55mm (module)
Environmental Adaptability	Industrial Grade	Wide operating temperature: -40℃ to 70℃, 5% to 95% RH, non-condensing
Environmental Adaptability	Industrial Grade			Wide storage temperature: -55℃ to 80℃, 5% to 95% RH, non-condensing
