Quick Details
-
Product name:
-
8 Channels HDMI H.264 Video Encoder
-
Input:
-
8 HDMI
-
Output:
-
2 RJ45 Ethernet
-
Video encoding:
-
H.264
-
Audio encoding:
-
AAC MP3
-
Resolution:
-
3840*2160@30HZ\1080P\1080i\720P
-
Code Rate Control:
-
16kbps- 25Mbps
-
Protocol:
-
HTTP/RTSP//RTMP/RTMPS/UDP/ONVIF2.4
-
Size:
-
W:440mm*D:210mm*H:45mm
-
Weight:
-
1.75kg
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Orivision
-
Model Number:
-
ZY-EH408
-
Product name:
-
8 Channels HDMI H.264 Video Encoder
-
Input:
-
8 HDMI
-
Output:
-
2 RJ45 Ethernet
-
Video encoding:
-
H.264
-
Audio encoding:
-
AAC MP3
-
Resolution:
-
3840*2160@30HZ\1080P\1080i\720P
-
Code Rate Control:
-
16kbps- 25Mbps
-
Protocol:
-
HTTP/RTSP//RTMP/RTMPS/UDP/ONVIF2.4
-
Size:
-
W:440mm*D:210mm*H:45mm
-
Weight:
-
1.75kg
|
Name
|
H.264 8CH HDMI 4K Video Encoder
|
|
Model
|
ZY-EH408
|
|
Input Interface
|
HDMI*8; Audio In*8
|
|
Output Interface
|
LAN Port*2
|
|
Video Encoding
|
H.264
|
|
Max.Input Resolution
|
3840*2160@30hz*8
|
|
HDCP
|
√
|
|
DHCP
|
√
|
|
Audio Input Terminal
|
HDMI-IN/Stereo Line-in
|
|
Audio Encoding
|
AAC-LC/EAAC/EAACPLUS/G711
|
|
Video Bit Rate
|
CVR/VBR: 16kbps~12Mbps
|
|
Audio Bit Rate
|
48kbps~256kbps
|
|
Simultaneous Streams
|
Max. 2CH Streams at the same time per channel
|
|
Protocol Support
|
HTTP(TS/FLV)/RTMP/RTMPS/RTSP(ES/TS)/ FLS/Multicast(UDP/RTP) /SRT/ Onvif
|
|
OSD Setting
|
Txt/Picture
|
|
Output Interface
|
RJ45*2; Ethernet(10base-t/100base-tx)
|
|
Output Resolution
|
3840*2160,1920*1080,1920*960, 1680*1200,1600*900,1440*1050,
1440*900,1360*768,1280*720, 1280*800,1280*768,1024*768, 1024*576,960*540,850*480,800*600, 720*576,720*540,720*480,720*404, 704*576,640*480,640*360,480*270, Auto |
|
Live Streaming Platform
|
YouTube, Facebook, Wowoza…
|
|
Management
|
Web Opreation, remote upgrade
|
|
Language
|
English/Chinese
|
|
Power
|
12V/DC 1A
|
|
Size
|
W:440mm*D:210mm*H:45mm
|
|
Net Weight
|
1.75kg
|

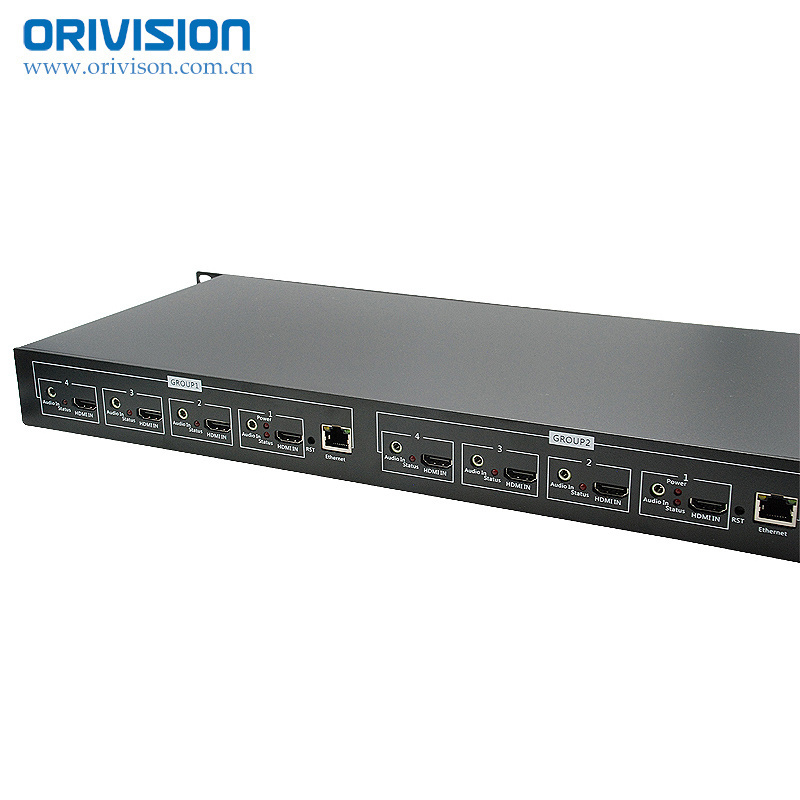

HD 8ch HDMI video encoder is a high-definition video encoding and multiplexing professional product, the product has 8channels HDMI video input and audio input, each channel HDMI input support 1 main-stream and 1 sub-stream ouput, support H.264 encoding format, and encoding of video and audio. Output TS dual bitstream design, according to different requirement to set the output of each channel resolution, Support for maximum resolution of 4K . The device has a high integration, low cost advantages, can be widely used in various digital television broadcast system. Support 1U structure.
H.264, Baseline, Profile encoding
H.264, Main, Profile encoding
H.264, High, Profile encoding
Audio encoding supports AAC/MP3
CBR/VBR/ABR rate control, 16kbit/s ~ 25Mbit/s
Network interface adopts 100/1000M adaptive / full duplex mode
8 channel HDMI input, 8 channel audio input
Supports high-definition video input of up to 4K@30hz for 2 channels, the other channels up to 1080P@60hz
Supports image parameter settings
Supports the HDCP protocol and supports Blu ray HD
Supports HTTP, UTP, RTSP, RTMP, RTMPS and ONVIF protocols
WEB interface, Chinese and English configuration interface optional
WEB interface authority management
Supports WAN Remote Administration (WEB)
Supports dual bitstream output
Main bitstream and sub bit stream can be transmitted using different network protocols
Supports streaming resolution settings
Supports the GOP frame rate setting
Supports bit stream to increase watermark function, XY axis can be set
Supports a key recovery default configuration
Supports set-top box decoding
Design of L low power consumption power
Q1: Where is your Factory located?
A1: Our factory is located in Nantong, Jiangsu, China, about 1.5~2 hours distance from Shanghai .
Q2: How does your factory do regarding Quality Control?
A2: Quality is very important and always be put at the first place. Our team members always pay great attention to quality controlling from the very beginning to the end.
Inspections of each step will be done during the production process.
Q3: Can I get some Samples?
A3: Yes, sure, we are honored to offer you samples to test, but sample is not free.
Q4: What is your Delivery date and method of Transportation?
A4: All goods in stock , just need 100%QC testing and Aging testing again before delivery.So delivery within 5~7 days after confirm payment !
We deliver goods via International Express like FedEx, UPS, DHL, TNT, EMS etc, take 3-6 days to your address!
Q5: Could you please make OEM for us?
A5: Surely yes. We provide the service of replacing your logo and company name on box and software interface of the device.
Q6: What's your Payment method supported?
A6: We accept T/T, Paypal, Western Union, MoneyGram , Alibaba Trade Assurance etc.
Q7: What about your Warranty?
A7: It's 1 year warranty for free repair or replacement.
