Quick Details
-
Brand Name:
-
GOOTU
-
Model Number:
-
JSH-SM40
-
Work Time (h):
-
24h
-
Max PV Power:
-
12V(550W)/24V(1100W)/48V(2650W)
-
Max PV Voltage:
-
12V(DC20V~230V)/24V(DC38V~230V)/ 48V(DC70V~230V), 12V(550W)/24V(1100W)/48V(2650W)
-
Certificate:
-
CE
-
Warranty:
-
1 Year
-
Product Name:
-

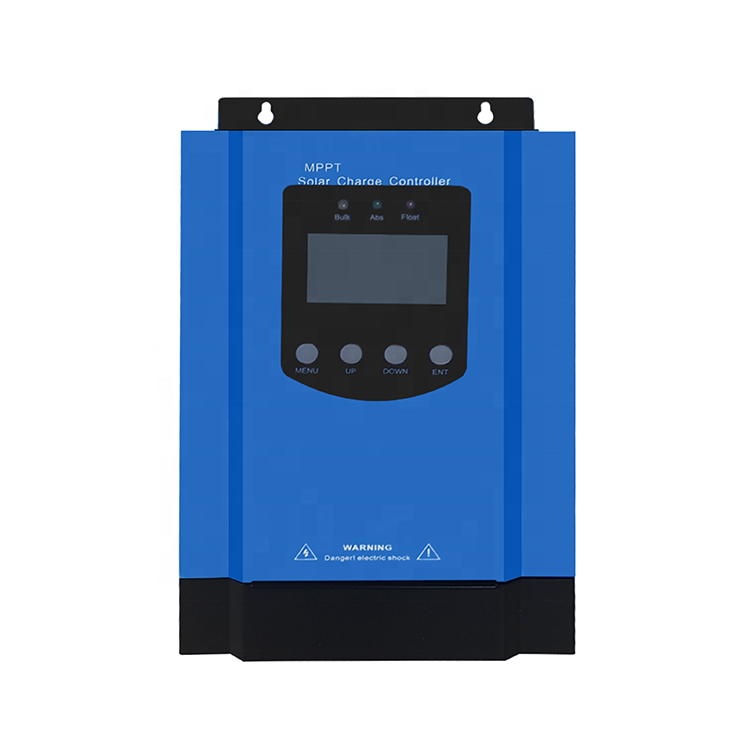

Low Frequency MPPT Controller
-
Display:
-
LCD,LED
-
Static power:
-
≤3W
-
MPPT Efficiency:
-
96.5%
-
Protection:
-
Short circuit protection, high voltage protection, etc.
-
Degree of protection:
-
IP30
-
Voltage stabilization accuracy:
-
±3.0%
-
Temperature compensation coefficient:
-
2mV/C/2V(Default)
-
Communication:
-
RS485
Quick Details
-
Type:
-
MPPT
-
Application:
-
Charger Controller, Solar System Controller
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
GOOTU
-
Model Number:
-
JSH-SM40
-
Work Time (h):
-
24h
-
Max PV Power:
-
12V(550W)/24V(1100W)/48V(2650W)
-
Max PV Voltage:
-
12V(DC20V~230V)/24V(DC38V~230V)/ 48V(DC70V~230V), 12V(550W)/24V(1100W)/48V(2650W)
-
Certificate:
-
CE
-
Warranty:
-
1 Year
-
Product Name:
-
Low Frequency MPPT Controller
-
Display:
-
LCD,LED
-
Static power:
-
≤3W
-
MPPT Efficiency:
-
96.5%
-
Protection:
-
Short circuit protection, high voltage protection, etc.
-
Degree of protection:
-
IP30
-
Voltage stabilization accuracy:
-
±3.0%
-
Temperature compensation coefficient:
-
2mV/C/2V(Default)
-
Communication:
-
RS485
Product Description
Data Sheet
|
Model
|
|
JSH-SM40
|
JSH-SM60
|
JSH-SM80
|
Model
|
|
JSH-SM40
|
JSH-SM60
|
JSH-SM80
|
||||||
|
Rated system voltage
|
|
12V/24V/48V(Adaptive)
|
|
|
Dynamic response
|
|
Overshoot amplitude(±5%)
Recovery time(500ms) (25%～50%,50%～75% load,current change rate 0.1A/ms) |
|
|
||||||
|
Rated charging current
|
|
40A
|
60A
|
80A
|
|
|
|
|
|
||||||
|
Rated discharge current
|
|
40A
|
60A
|
80A
|
|
|
|
|
|
||||||
|
Static power
|
|
≤3W
|
|
|
|
|
|
|
|
||||||
|
PV open circuit
voltage input range |
12V
|
DC20V～230V
|
|
|
Display mode
|
|
LCD，LED
|
|
|
||||||
|
|
24V
|
DC38V～230V
|
|
|
Protection mode
|
|
Short circuit protection,high voltage protection,low voltage protection,input reverse connection protection,temperature protection
|
|
|
||||||
|
|
48V
|
DC70V～230V
|
|
|
|
|
|
|
|
||||||
|
Adaptive output voltage range
|
12V
|
DC9V～18V
|
|
|
Machine efficiency
|
|
≥96.5%
|
|
|
||||||
|
|
24V
|
DC18V～30V
|
|
|
Temperature compensation
coefficient |
|
2mV/C/2V(Default)
|
|
|
||||||
|
|
48V
|
DC36V～60V
|
|
|
Communication
|
|
RS485
|
|
|
||||||
|
Maximum
photovoltaic power |
12V
|
550W
|
850W
|
1200W
|
Operating ambient
temperature range |
|
0～50℃
|
|
|
||||||
|
|
24V
|
1100W
|
1700W
|
2300W
|
Storage temperature range
|
|
-40℃～+70℃
|
|
|
||||||
|
|
48V
|
2650W
|
3400W
|
4500W
|
Use altitude
|
|
5500m(Power reduction is
required for use above 2000m) |
|
|
||||||
|
Voltage stabilization accuracy
|
|
±3.0%
|
|
|
Relative humidity
|
|
95%(Non condensing)
|
|
|
||||||
|
Ripple and noise
(20MHz bandwidth limitation) |
|
100mVpp
(rated load, output and 10uF/250V and 0.1uF/250V capacitance) |
|
|
Degree of protection
|
|
IP30
|
|
|
||||||
|
|
|
|
|
|
Overall dimension(mm)
|
|
230*170*90
|
290*220*90
|
290*250*90
|
||||||
|
|
|
|
|
|
Gross weight(KG)
|
|
1.8
|
2.4
|
2.5
|
||||||
