Quick Details
-
Warranty:
-
1 years
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ONNT
-
Product name:
-
Connector Push Pneumatic Metal Fittings
-
Port size:
-
4mm 6mm 8mm 10mm 12mm 14mm 16mm
-
Thread size:
-
BSP M5 1/8" 1/4" 3/8" 1/2"
-
Body Material:
-
Metal
-
Operating Pressure:
-
0~10kgf/cm2 (0~1.0MPa)
-
Negative Pressure:
-
-750mmHg (10Torr)
-
Proof Pressure:
-
1.5MPa
-
Ambient and fluid temperature:
-
-20~70℃
-
Applicable Tubing:
-
Soft nylon or Polyurethane
-
After Warranty Service:
-
Video technical support
Quick Details
-
Technics:
-
Casting
-
Shape:
-
Reducing
-
Head Code:
-
Square
-
Warranty:
-
1 years
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ONNT
-
Product name:
-
Connector Push Pneumatic Metal Fittings
-
Port size:
-
4mm 6mm 8mm 10mm 12mm 14mm 16mm
-
Thread size:
-
BSP M5 1/8" 1/4" 3/8" 1/2"
-
Body Material:
-
Metal
-
Operating Pressure:
-
0~10kgf/cm2 (0~1.0MPa)
-
Negative Pressure:
-
-750mmHg (10Torr)
-
Proof Pressure:
-
1.5MPa
-
Ambient and fluid temperature:
-
-20~70℃
-
Applicable Tubing:
-
Soft nylon or Polyurethane
-
After Warranty Service:
-
Video technical support
Stainless Steel Pneumatic Hose Fitting For Water Pneumatic Push in Fittings Air Hose Connector Fittings Metal

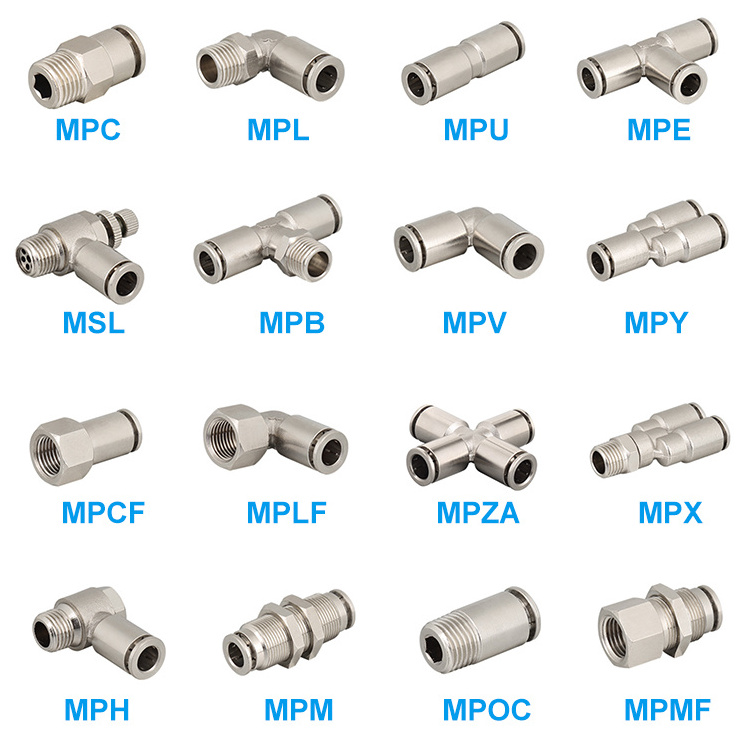

Ordering code
Model Port size Thread connection
| Thread Fittings | Tube Fittings | Metric | English |
| MPC | MPU | 4mm | M5:M5 |
| MPCF | MPV | 6mm | 01:1/8'' |
| MPL | MPE | 8mm | 02:1/4'' |
| MPLF | MPY | 10mm | 03:3/8'' |
| MPB | MPM | 12mm | 04:1/2'' |
| MPD | MPZA | 14mm | |
| MPX | MPK | 16mm | |
| MSL | MLS | ||
| MPH |
Specifications
| Operating Pressure Range | 0-1.0MPa | 0-145psi |
| Operating Temperature | -20~70℃ |
| Applicable Tube | PU / PA / PE / PVC |
| Features |
1. Designed for Polyurethane or Nylon tubing.
2. Simple installation pneumatic push in connector.
|
| Note |
1.Due to the difference between different monitors, the picture may not reflect the actual
|
