- Product Details
- {{item.text}}
Quick Details
-
Length:
-
Standard: 3000mm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
HDMANN
-
Model Number:
-
HDT41
-
Side Rail Height:
-
25 - 300mm
-
Max. Working Load:
-
50-200kg
-
Steel Thickness:
-
1 - 3mm
-
Sample:
-
Supplied Freely for Electrical Gi Trunking
-
Customized:
-
Acceptable
-
Certificates:
-
CE,NEMA,ISO,UL,SGS
-
Payment Terms:
-
30% deposit
-
Bussiness Type:
-
Manufacturing and Trading in one
-
Loading Port:
-
Shanghai
-
Product Name:
-
Cable Support System Electrical Gi Trunking
-
Product Type:
-
Electrical Gi Trunking
Quick Details
-
Type:
-
Trunking
-
Material:
-
Steel
-
Width:
-
50 - 1000mm
-
Length:
-
Standard: 3000mm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
HDMANN
-
Model Number:
-
HDT41
-
Side Rail Height:
-
25 - 300mm
-
Max. Working Load:
-
50-200kg
-
Steel Thickness:
-
1 - 3mm
-
Sample:
-
Supplied Freely for Electrical Gi Trunking
-
Customized:
-
Acceptable
-
Certificates:
-
CE,NEMA,ISO,UL,SGS
-
Payment Terms:
-
30% deposit
-
Bussiness Type:
-
Manufacturing and Trading in one
-
Loading Port:
-
Shanghai
-
Product Name:
-
Cable Support System Electrical Gi Trunking
-
Product Type:
-
Electrical Gi Trunking
Cable Support System Electrical Gi Trunking
Thanks for browsing our electrical gi trunking.
We are a professional manufacturer that specializes in cable tray and strut channel for many years.
Our main products are as follows:
| Cable Trunking | Perforated Cable Tray | Ladder Cable Tray |
| Wire Mesh Cable Tray | Strut Channel | Accessories |
Welcome to consult and visit our factory.

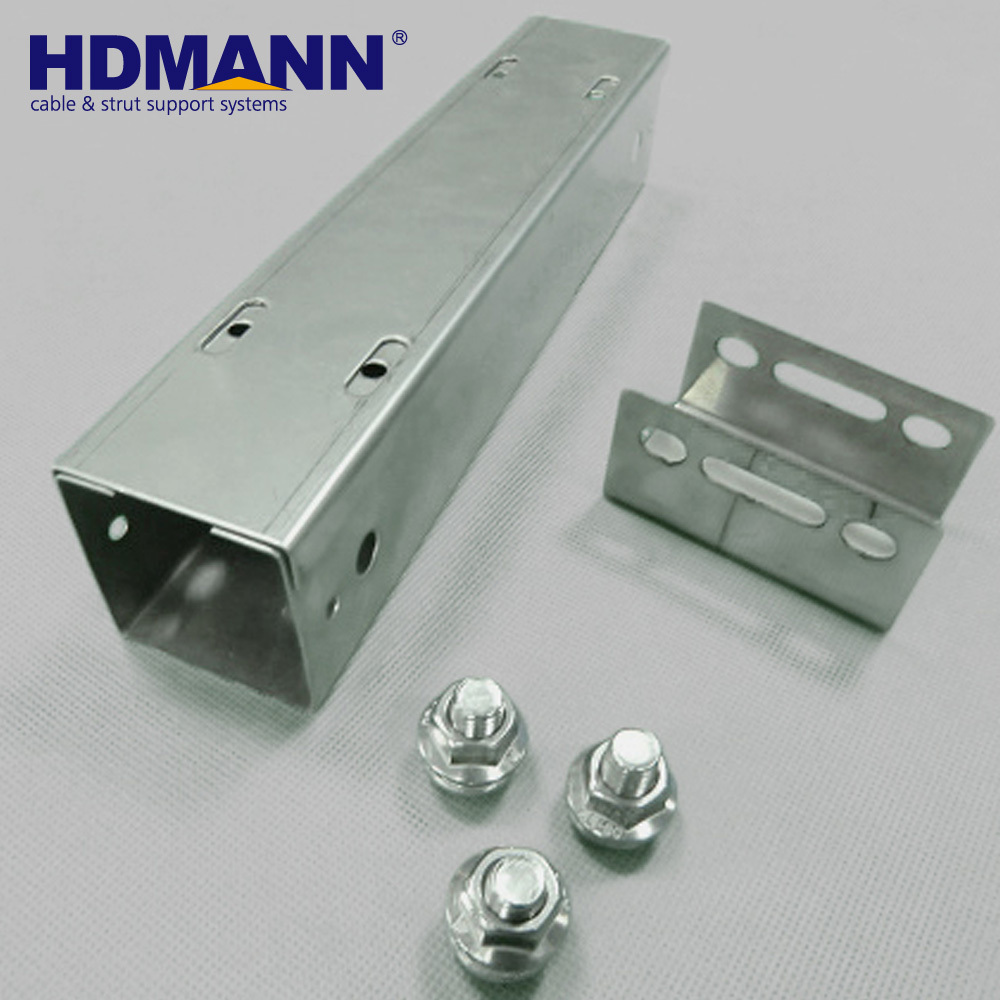

Display Electrical Gi Trunking
Standard
Specifications for Electrical Gi Trunking
| No. |
Width (mm) |
Height (mm) |
Thickness (mm) |
Standard Length (mm) |
| 1 | 50 | 25, 40, 50 | 0.8 - 3 | 3000 |
| 2 | 75 | 25, 40, 50, 75 | 0.8 - 3 | 3000 |
| 3 | 100 | 25, 40, 50, 75, 100 | 0.8 - 3 | 3000 |
| 4 | 150 | 25, 40, 50, 75, 100, 150 | 0.8 - 3 | 3000 |
| 5 | 200 | 25, 40, 50, 75, 100, 150, 200 | 0.8 - 3 | 3000 |
| 6 | 250 | 25, 40, 50, 75, 100, 150, 200, 250 | 0.8 - 3 | 3000 |
| 7 | 300 | 25, 40, 50, 75, 100, 150, 200, 250, 300 | 0.8 - 3 | 3000 |
| 8 | 350 | 25, 40, 50, 75, 100, 150, 200, 250, 300 | 0.8 - 3 | 3000 |
| 9 | 400 | 25, 40, 50, 75, 100, 150, 200, 250, 300 | 0.8 - 3 | 3000 |
| 10 | 450 | 25, 40, 50, 75, 100, 150, 200, 250, 300 | 0.8 - 3 | 3000 |
| 11 | 500 | 25, 40, 50, 75, 100, 150, 200, 250, 300 | 0.8 - 3 0.8 - 3 | 3000 |
| 12 | 550 | 25, 40, 50, 75, 100, 150, 200, 250, 300 | 0.8 - 3 | 3000 |
| 13 | 600 | 25, 40, 50, 75, 100, 150, 200, 250, 300 | 0.8 - 3 | 3000 |
| 14 | 650 | 25, 40, 50, 75, 100, 150, 200, 250, 300 | 0.8 - 3 | 3000 |
| 15 | 700 | 25, 40, 50, 75, 100, 150, 200, 250, 300 | 0.8 - 3 | 3000 |
| 16 | 750 | 25, 40, 50, 75, 100, 150, 200, 250, 300 | 0.8 - 3 | 3000 |
| 17 | 800 | 25, 40, 50, 75, 100, 150, 200, 250, 300 | 0.8 - 3 | 3000 |
| 18 | 850 | 25, 40, 50, 75, 100, 150, 200, 250, 300 | 0.8 - 3 | 3000 |
| 19 | 900 | 25, 40, 50, 75, 100, 150, 200, 250, 300 | 0.8 - 3 | 3000 |
Shanghai HDmann Metal Industry Co., Ltd. was found in 2000 with its registered capital of 10 million RMB. The headquarters locates in the international metropolis, Shanghai.
Our company mainly specializes in manufacture and trading of cable support system, providing our clients the first-class productions used for wiring. The main products we are handling include cable trays, cable ladders, wire mesh trays, cable trunkings and strut channels.
The company established at the beginning of this century when China became a member of the WTO family. We seized this great opportunity and actively expanded the oversea markets. After years of development, we have our cooperative partners around the world and win a good reputation and respect due to our first-class productions and well-deserved reputation. Besides, we have built 3 plants respectively distributing in Hainan, Hangzhou and Wuxi, providing hundreds of positions.
We consistently adhere to the concept of clients first. What we have done is always to maximum the customers’ benefits. And you are always welcomed to visit our plants and office.
Packing Electrical Gi Trunking
Application Electrical Gi Trunking
HDMANN Cable Tray System
You may like. Please click words.
| Ladder Cable Tray | Perforated Cable Tray | Wire Mesh Cable Tray | Strut Channel |
Certificates Electrical Gi Trunking
FAQ Electrical Gi Trunking
1. Q: Are you a manufacturer or trading company?
A: We are a manufacturer specializing in cable tray and strut channel for many years.
2. Q: Can the product quality be guaranteed?
A: Dear, we can. We have skillful staffs and advanced production equipment. We strictly operate quality control system. Welcome to investigate our factory.
3. Q: Is customized electrical gi trunking acceptable?
A: Yes, acceptable
4. Q: Do you offer a free sample of electrical gi trunking ?
A: We can provide a free sample, but the freight is paid by you. The sample is sent out about 3-7 days.
5. Q: Which certificate have you got?
A: CE, NEMA, SGS, UL for Product
ISO9001:2008, ISO14001:2004 for Factory
6. Q: Which price form do you offer?
A: FOB, CIF, CFR
