Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SCOPE
-
Model Number:
-
SZ810BP
-
Eyepiece:
-
WF10X/24mm
-
Objective:
-
1X
-
Zoom Range:
-
0.65X-5.3X
-
Working Distance:
-
110mm
-
Head Angle:
-
12 degree
-
View Angle:
-
35 degree
-
Focusing Distance:
-
80mm
-
Stand:
-
Focusing Arm Stand
-
Base:
-
330*300mm
-
Application:
-
Pcb Phone Inspection
Quick Details
-
Warranty:
-
1 year
-
Theory:
-
Stereo Microscope
-
Drawtube:
-
BINOCULAR
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SCOPE
-
Model Number:
-
SZ810BP
-
Eyepiece:
-
WF10X/24mm
-
Objective:
-
1X
-
Zoom Range:
-
0.65X-5.3X
-
Working Distance:
-
110mm
-
Head Angle:
-
12 degree
-
View Angle:
-
35 degree
-
Focusing Distance:
-
80mm
-
Stand:
-
Focusing Arm Stand
-
Base:
-
330*300mm
-
Application:
-
Pcb Phone Inspection

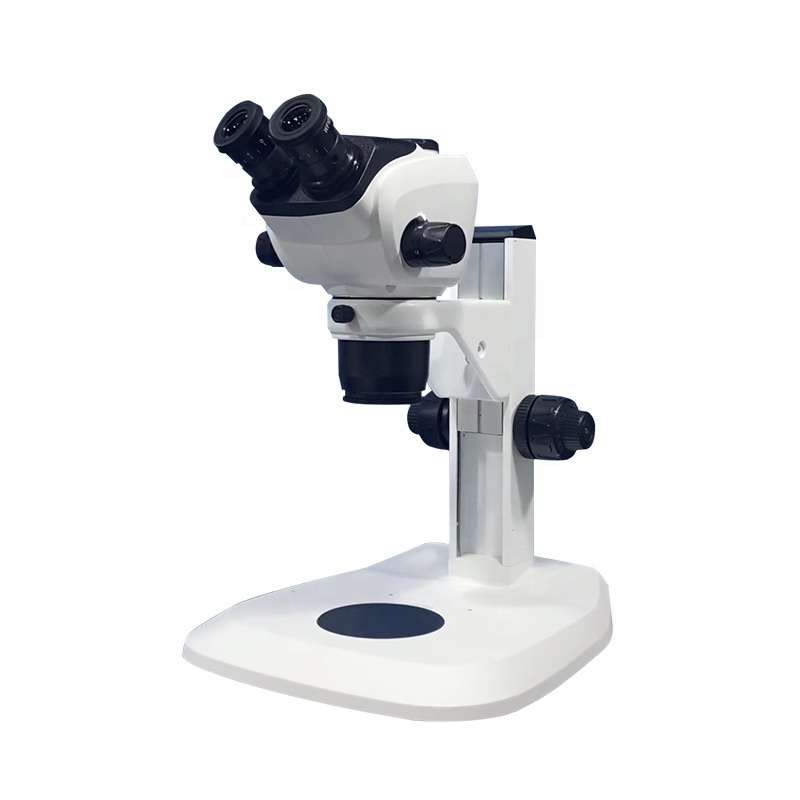

SZ810BP Series Binocular Stereo Zoom Microscope
The SZ810 Stereo microscope is designed by our factory and adopt the outstanding ergonomic design. This model is binocular type. The eyepiece specification is 10X/24mm. And the standard stand is arm stand with coarse focusing knob. Also there are some optional accessories can be chosen.
The operation of stereo microscope is simple, and the stereo microscope is also the most widely used, and its main uses are as follows:
- Excellent Technology And Quality
High resolution, large depth of field, excellent color restoration and contrast.
Operation comfortable(manufactured by high-precision machine, excellent assembly technology ).
High- end material(PC resin cover, aluminium alloy ,copper alloy parts, austenite stainless steel driving parts).
- International Level Appearance Design
Elegant shape , high-end and integrated appearance design, comfortable operation.
SZ810 35°viewing angle, suitable for long-term sitting observation.
²330mm×300mm big stand, high stability , apply to all kinds of anatomy of specimen.
|
SZ 810BP Equipment Outfits |
|
|
Item |
Specification |
|
Main Body |
Binocular |
|
Eyepiece |
10X/ Φ 2 4 mm |
|
Objective |
1X |
|
Objective Zoom Range |
0.65X-5.3X |
|
Zoom Ratio |
1: 8.1 |
|
Working Distance |
110mm |
|
Stereo Angle |
12 degree |
|
View Angle |
35 degree |
|
Interpupilary Adjustable Distance |
50-75mm |
|
Base |
330*300mm |
|
Focusing Unit |
|
|
Black & White Plate |
|
|
No Light |
|
|
Focusing Arm Stand |
Guide Rail Stand Focusing Distance: 80mm |
|
Option s |
|
|
Eyepiece |
15X/ Φ 16mm |
|
20X/ Φ 12mm |
|
|
Objective |
0.5X/ 0.75X/ 2X |
|
Pillar Stand |
Pillar Stand Focusing Distance : 115mm |
|
Arm Stand |
|
|
Dark Field Ring |
|
|
Polarizing Unit |
|
|
Mechanical Stage |
|
SZ 81 0 Series Objective & Eyepiece Parameter List (0.6 5 ×-5. 3 ×)
|
Additional Objective |
0.5X |
1X(built-in) |
2X |
|
|
W.D |
189mm |
110mm |
36mm |
|
|
10XEyepiece/Φ24mm |
Magnification |
3.3~ 25.5 |
6.6~ 51 |
13.2~ 102 |
|
Field dia. (mm) |
72.73~ 9.41 |
36.36~ 4.71 |
18.18~ 2.35 |
|
|
15XEyepiece/Φ16mm |
Magnification |
4.95~ 38.25 |
9.9~ 76.5 |
19.8~ 153 |
|
Field dia. (mm) |
48.48~ 6.27 |
24.24~ 3.14 |
12.12~ 1.57 |
|
|
20XEyepiece/Φ12mm |
Magnification |
6.6~ 51 |
13.2~ 102 |
26.4~ 204 |
|
Field dia. (mm) |
39.64~ 4.71 |
18.18~ 2.35 |
9.09~ 1.18 |
|
