Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
STS
-
Weight (KG):
-
350 kg
-
Product Name:
-
Type Grain Rice Mill Belt Conveyor Price Bucket Elevator For Sale
-
Frame material:
-
304 stainless steel
-
vibration hopper:
-
70L or customized
-
lifting height:
-
2-10m
-
discharging mouth:
-
1 or more
-
Capacity:
-
3-14M3/H
-
speed:
-
adjustable
-
bucket lifting:
-
by chain
-
bucket size:
-
1.8L or others
-
bucket material:
-
PP or ABS plastic
Quick Details
-
Power:
-
750W
-
Warranty:
-
1 Year
-
Width or Diameter:
-
500mm
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
STS
-
Weight (KG):
-
350 kg
-
Product Name:
-
Type Grain Rice Mill Belt Conveyor Price Bucket Elevator For Sale
-
Frame material:
-
304 stainless steel
-
vibration hopper:
-
70L or customized
-
lifting height:
-
2-10m
-
discharging mouth:
-
1 or more
-
Capacity:
-
3-14M3/H
-
speed:
-
adjustable
-
bucket lifting:
-
by chain
-
bucket size:
-
1.8L or others
-
bucket material:
-
PP or ABS plastic

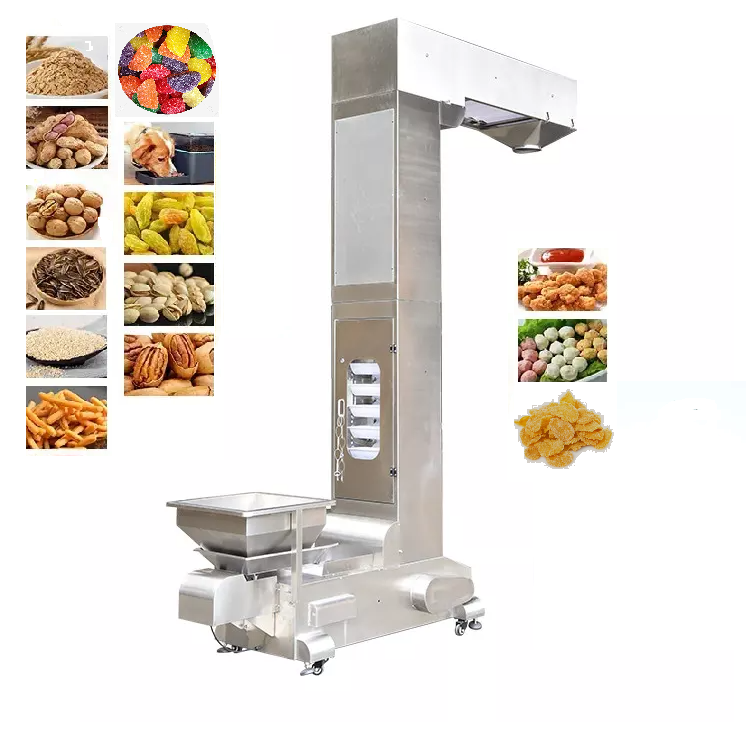

Small Z Shape Steel Stainless Chain Vertical Lifter Type Grain Rice Mill Belt Conveyor Price Bucket Elevator For Sale
Specifications
For the lifting machine, the hopper is driven by the chains to lift. It’s used for vertical feeding of grain or small block material. It has advantages of large lifting quantity and highness.
|
Machine frame
|
|
Good quality 304 stainless steel or carbon steel
|
|
|
|||
|
Bucket material
|
|
food grade ABS or PP plastic or 304 stainless steel
|
|
|
|||
|
Bucket size
|
|
1.8L or 4L or 6L
|
|
|
|||
|
Speed
|
|
Controlled by Delta inverter, adjustable
|
|
|
|||
|
Max speed
|
|
90 buckets/min
|
|
|
|||
|
Working capacity
|
|
3-12M3/H
|
|
|
|||
|
Lifting height
|
|
3.6m standard height or other size custimized
|
|
|
|||
|
Chains
|
|
Good quality 304 stainless steel or carbon steel
|
|
|
|||
|
Outlets
|
|
1/2/3/4/5/6 or others
|
|
|
|||
|
Ce certificate
|
|
Yes
|
|
|
|||
|
Voltage
|
|
110V/220V single phase or 380V 3phase, 50HZ/60HZ
|
|
|
|||
|
Power
|
|
750W
|
|
|
|||
Product Description
Combined type vibrating feeder hopper
Standard volume is 70L, with the vibration for dispensing the products to the buckets of elevator , 304 stainless steel
Separated type vibrating feeder hopper
Size can be customized, 150L/200L/300L or others.
304 stainless steel material.
Electric box front look
Simple design and easy operation.
High quality 304 stainless steel box
Inside look
At the back side of the front door, you can see the cables assemble are good in condition.
Electric parts inside the box
You can see the Delta inverter for the machine,most of the electric parts are imported.
Easy assembling buckets
We have the smooth surface buckets as well as the dimpled type buckets. They are very easy to assemble or disassemble on the machine.
Good quality chains
304 stainless steel chains and nylon roller.
We also have carbon steel chains for choose
Plastic bucket material and sizes:
we have the smooth and dimpled surface buckets, they can be 1.8L or 4L or 6L
We also can do stainless steel buckets.
Metal plate for the body
First we use machine to cut the metal plate into the size of the metal plate we want and make the shape we want.
Welding for the parts
Welding and polishing the parts with hand tools.
Machine frame body
The machine body is ready to assemble the chains, the buckets and so on.
Multi-outlets elevator:
Standard elevator with 1 outlet.
We can make 2/3/4/5/6 outlets type too.
Ready machine and details:
We normally make them customized, not only standard size.
The outlets can be multi-outlets too.
