Quick Details
-
Style:
-
Two rounds
-
Power:
-
5kw
-
Magnet height:
-
50MM
-
Stator:
-
aluminum alloy
-
Waterproof grade:
-
IP54
-
Speed:
-
700RPM
-
Max efficiency:
-
90%
-
Open size:
-
149mm
-
Color:
-
dark black
Quick Details
-
Voltage:
-
72v
-
Wattage:
-
> 400w
-
Motor Type:
-
Brush Non-gear Hub Motor
-
Style:
-
Two rounds
-
Power:
-
5kw
-
Magnet height:
-
50MM
-
Stator:
-
aluminum alloy
-
Waterproof grade:
-
IP54
-
Speed:
-
700RPM
-
Max efficiency:
-
90%
-
Open size:
-
149mm
-
Color:
-
dark black
PRODUCT PICTURES

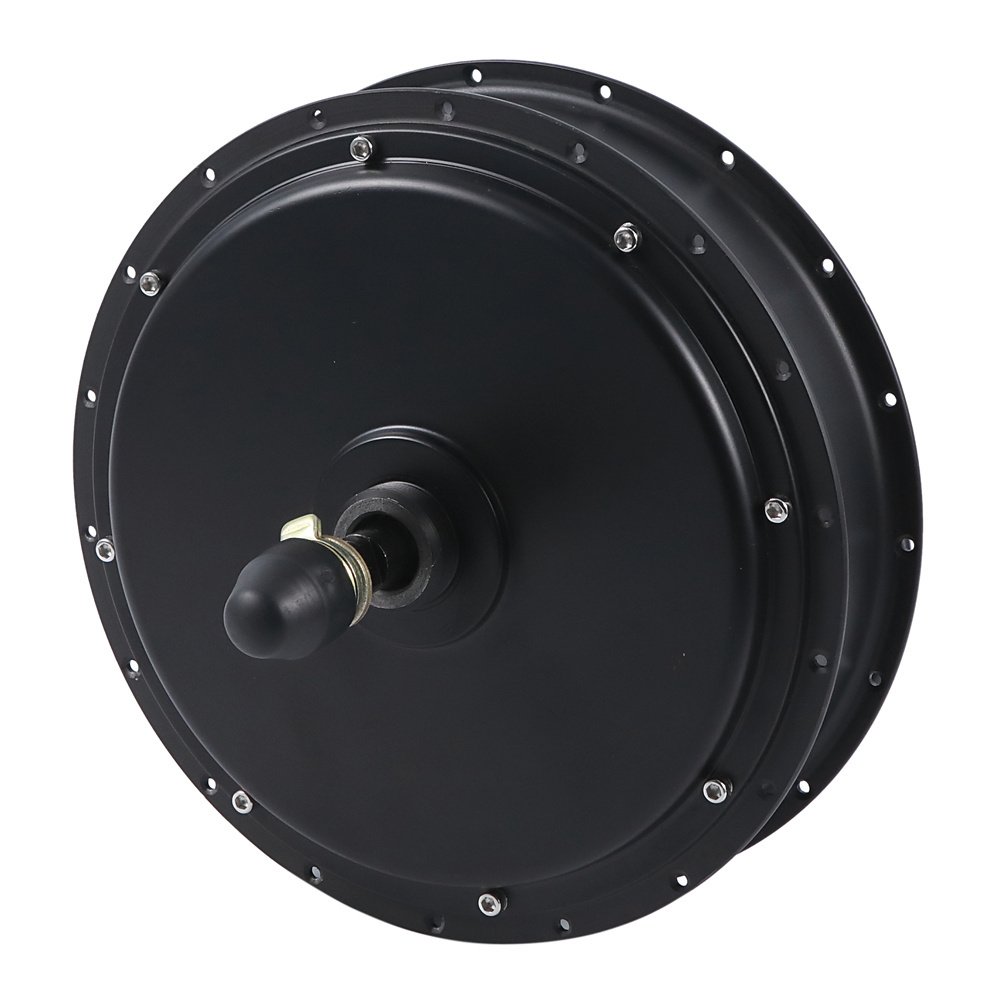

High torque CE 72v 5000w electric bike dc motor
PRODUCT SPECIFICATIONS
|
Model |
NC5000 |
|
Motor power |
5000w |
|
Axle |
10mm* 16mm |
|
motor diameter |
244mm |
|
Voltage |
48v-96v |
|
Magnet Height |
50mm |
|
stator |
aluminum alloy |
|
windings |
700rpm @72v, 4Tx20 |
|
waterproof grade |
IP54 |
|
KV |
3T motor is 12.5KV , 4T motor is 9KV. |
|
numbers of pole pairs |
23 |
|
peak phase current |
300amp |
|
Max torque |
190N.m |
|
Max Efficiency |
89.80% |
|
drop out |
149mm |
|
Numbers of Motor phase |
3 pcs |
|
Hall sensor |
2 sets, one is for spare |
|
hall sensor phasing |
120 degrees |
|
cross section of phase wire |
10mm2 |
|
temperature sensor |
KTY82/122 |
|
color |
dark black |
|
N.W |
12.75kgs |
PRODUCT FEATURES
High torque CE 48v 72v 96v 5000w electric bike dc motor
l Low noise
l Electricity saving
l High torque
l High strength
l High safety coefficient, high efficiency
l Long service life
l Not easy to be hot
l Big power
l Warranty : 2 years
l OEM
PRODUCT APPLICATION
High torque CE 72v 5000w electric bike dc motor
