Quick Details
-
Model Number:
-
1250
-
Name:
-

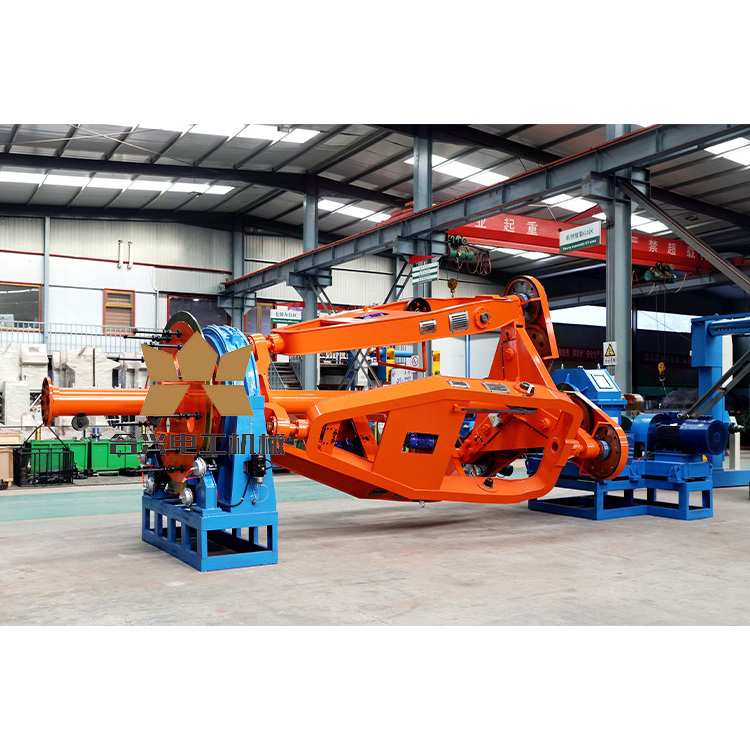

Cable Laying up Machine
-
Model:
-
1250 1600 2000
-
Inlet wire Dia.(mm):
-
8-40 10-60 15-70
-
laid up Dia.(mm):
-
80 120 140
-
Frame rotation speed(r/min):
-
13.9-33.1 8.0-18.5 4.0-8.8
-
Lay-up Pitch(mm):
-
181-3198 369-6646 400-6766
-
Taping speed(r/min):
-
188-419 188-419 150-334
-
Taping pitch(mm):
-
14.3-236.3 16-273 11-179
-
capstan Dia.(mm):
-
2000 2500 track
-
linear Speed(m/min):
-
6.00-44.41 6.78-51.21 3.53-26.86
Quick Details
-
Use:
-
Stranding
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
HX
-
Model Number:
-
1250
-
Name:
-
Cable Laying up Machine
-
Model:
-
1250 1600 2000
-
Inlet wire Dia.(mm):
-
8-40 10-60 15-70
-
laid up Dia.(mm):
-
80 120 140
-
Frame rotation speed(r/min):
-
13.9-33.1 8.0-18.5 4.0-8.8
-
Lay-up Pitch(mm):
-
181-3198 369-6646 400-6766
-
Taping speed(r/min):
-
188-419 188-419 150-334
-
Taping pitch(mm):
-
14.3-236.3 16-273 11-179
-
capstan Dia.(mm):
-
2000 2500 track
-
linear Speed(m/min):
-
6.00-44.41 6.78-51.21 3.53-26.86
PRODUCT PARAMETER
Normal type Technical Parameter
|
Name
|
Cable Laying up Machine
|
|
Model
|
1250 1600 2000
|
|
Inlet wire Dia.(mm)
|
8-40 10-60 15-70
|
|
laid up Dia.(mm)
|
80 120 140
|
|
Frame rotation speed(r/min)
|
13.9-33.1 8.0-18.5 4.0-8.8
|
|
Lay-up Pitch(mm)
|
181-3198 369-6646 400-6766
|
|
Taping speed(r/min)
|
188-419 188-419 150-334
|
|
Taping pitch(mm)
|
14.3-236.3 16-273 11-179
|
|
capstan Dia.(mm)
|
2000 2500 track
|
|
linear Speed(m/min)
|
6.00-44.41 6.78-51.21 3.53-26.86
|
Big bearing type Technical Parameter
|
Model
|
1250
|
1600
|
|
Cage RPM(r/min)
|
21.3-50.9
|
11.8-283
|
|
Taping RPM(r/min)
|
289-644
|
289-644
|
|
linear Speed(m/min)
|
10.22-77.70
|
10.28-77.69
|
Application
This series of products is suitable for the cabling and armoring of multi-core power cables of various cross-sections,
cross-linked cables, and control systems. It can also be used for the production of charging pile cables
cross-linked cables, and control systems. It can also be used for the production of charging pile cables
Special launch
Large bearing support, a new type of high-speed silk machine, the main school flow is changed from traditional tugboat support to large bearing support, supplemented by other methods
A series of improvements have been made to make it higher speed, lower noise, no maintenance, better performance, and more user-friendly operation.
PRODUCT DISPLAY
RELATED PRODUCTS
COMPANY PROFILE
Hebei Hexing Electrical Machinery Co., Ltd. Was established in 2007. During the past years we have put all our efforts to research and development, such as design, produce, sales and serve for our customers. Our main products including Rigid Stranding machine, Tubular Stranding machine, Planetary Stranding machine, Bow Stranding machine, Laying-up machine, Drum Twister, Shielding Machine,Steel Wire Armoring machine and so on. These products are widely used all over the world. Now we are proud that we become a well-known company in this field.
Our philosophy is “innovation and Technology”. We have insisted on bring in advanced technology abroad and doing systematic expansion over the past years. We have developed an experienced mechanical and electronic research team with the ability of independent design and large-scale production.
With many years of production and service experiences, we research new producing technology and update our products. As a result, our machines have been sold not only around China, and also sold to America, Russia, Vietnam, lndia, and Africa, etc. And meanwhile we win praise from our customers both in domestic and abroad.
With professional sales team, skilled workers, advanced equipment and quick after-sale service, we offer you good quality products with competitive price and super service. We are your best choice. We warmly welcome you come to visit our company and have further business talk.
FAQ
1.Q: Where is your factory located?
A: Our factory is located in HEJIAN CITY, HEBEI PROVINCE, CHINA, we are near Beijing, Tianjin and Shijiazhuang air port, and CANGZHOU WEST high-speed railway station.
2.Q: What is the advantage about your company?
A: Our company has skilled technical engineer and workers and professional production line.
3.Q: Why should l choose your products?
A: We are direct manufacturer, we can supply high quality products with competitive price.
4.Q: The logo and the color can be customized?
A: Yes, we welcome you to sample custom.
5.Q: Any other good service your company can provide?
A: Yes,we can provide good after-sale and fast delivery.
lf you have any other questions, please contact us
