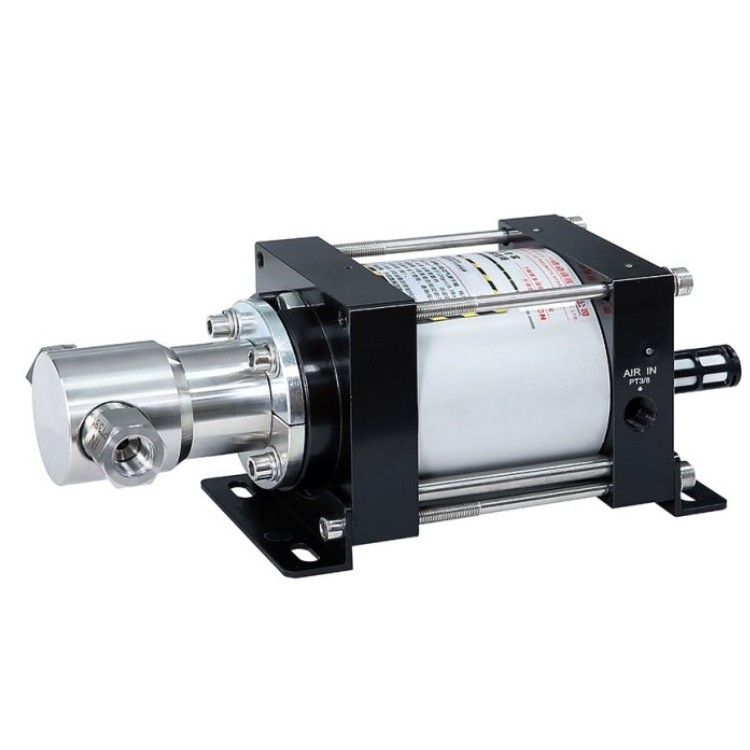

15000 Psi/1000 Bar High Pressure Air Driven Liquid Transfer Pump For Valve/hose Testing

WYXH series gas-liquid booster pump is a single-drive single-acting liquid booster pump with compressed air. It has the advantages of high safety, high output pressure, no energy consumption for maintaining pressure, reliable structure, suitable for a variety of media, and wide application. Features 1. Gas driven without lubrication, no heat, spark and flame, safe pressurization and low cost; 2. Output pressure can reach up to 1294bar; 3. No energy consumption for maintaining pressure, automatic liquid absorption, automatic pressure maintaining, automatic pressure supplementation, reliable structure and easy maintenance; 4. It is suitable for most liquids and liquefied gases; 5. It is a complete set of equipment widely used in various industrial fields, which is the first choice for supporting industrial products and various pressure tests; Main features 1. WYXH series is based on static pressure, when the driving pressure is 7bar, the air consumption is 0.7m3/min; 2. Driving pressure is 1bar-8.3 bar (14.5-120.35psi), and the WYXH series is a single driving piston Φ100mm; 3. Products are made of stainless steel and aluminum alloy; 4. Order code of WYXH series standard products: such as XH25 (series number + boost ratio). Description of special products Regarding the medium: if there is a special medium when ordering the WYXH series booster pump, please specify when ordering: such as WYXH64-CO2(series number + booster ratio + booster medium); Application scenarios 1. Hydrostatic testing, blasting and fatigue testing - valves, storage tanks, pressure vessels, pressure switches, hoses, pressure gauges, cylinders, sensors, blowout preventers, gas cylinders and aircraft components; 2. Calibration of pressure gauges and sensors; 3. Cutting and cleaning of water jets; 4. Leak test, oil and gas well shutdown system; 5. It is used to test the pressurization of accumulators of various components; 6. Operation and control of wellhead equipment.
