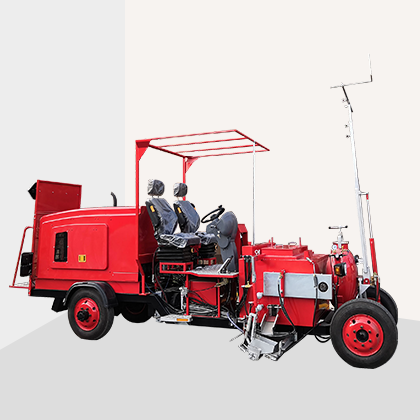

TATU highway painting thermoplastic paints thermoplastic pavement marking machine

TATU highway painting thermoplastic paints thermoplastic pavement marking machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $69400

≥2 Sets

US $69000

≥3 Sets

US $68000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Dimension(L*W*H):: 5300x2200x2300mm

Weight:: 35000kg

Features:: Thermoplastic

Warranty:: 1 Year

Engine:: four cylinder water cooled diesel engine

Paint tank capacity:: 400L

Glass beads tank:: 200L high pressured

Insulation system:: transder oil or insulation layer heating

Control system:: Digital controller

Line types:: three more types line to be choosen

Marking mode:: automatic screeding marking shoe

Marking width:: 100-400mm optional

Drivers seat:: Movable

Guiding line system:: with guiding line system

Certification:: ISO CE

Quick Details

Power:: 44.6kw

Place of Origin:: Henan, China

Brand Name:: TATU

Dimension(L*W*H):: 5300x2200x2300mm

Weight:: 35000kg

Features:: Thermoplastic

Warranty:: 1 Year

Engine:: four cylinder water cooled diesel engine

Paint tank capacity:: 400L

Glass beads tank:: 200L high pressured

Insulation system:: transder oil or insulation layer heating

Control system:: Digital controller

Line types:: three more types line to be choosen

Marking mode:: automatic screeding marking shoe

Marking width:: 100-400mm optional

Drivers seat:: Movable

Guiding line system:: with guiding line system

Certification:: ISO CE

Technical Data:

Marking Method	Thermoplastic screeding
Material Container Volume	500L
Delivery Rate	0.45m³/min
Heating Method	Energy efficient burner (LPG infrared burner or fuel)
Heat Preservation Method	Heat preservation cotton, or heat transfer oil with heat preservation cotton
Temperature Control Method	Auto temperature control
Marking Line Width	50/100/150/200/250/300mm (optional, single equips of screeding device (150, 200, or 250mm), or convex marking device)
Pump Control Method	Oil cylinder
Overall Dimension	6000mm(L)x2200mm(W)x2200mm(H)

Chassis Specification:

Engine Power	74KW four cylinders water-cooled diesel engine
Drive Unit	Hydraulic drive infinitely variable
Driving Direction & Speed	Forward or backward, 0-22km/h
Glass Bead Container Volume	150L
Weight	4-5T

TATU is the global brand specialized in research and development, production and sales of road marking products, and also the oldest brand among all the manufacturing brands as a subsidiary of TATU TRAFFIC GROUP.

Product R & D strategy: Enter from High-end, Stride systematically, Extend vertically and Promote comprehensively.TATU brand products mainly include three business modules as road marking machinery, road marking material(paint, special resin and glass beads) and traffic safety facilities, and have advantages as road marking machinery with the most comprehensive ranges and the largest number of production units, road marking material with the most varied types and the longest industrial chain, the most export countries and the most comprehensive service capabilities. Some products are firstly developed in the world and many products are in the leading positions. TATU will continue to promote the vitality of its technical innovation, lean manufacturing advantages and the traditional emphasis on the customer experience, and commit to R&D, manufacturing and sales of road marking products and other road-specific safety facilities through its world-class technology research institutions, seven modern manufacturing bases and multivessel lean and efficient marketing services team. With TATU growing out of nothing, from small to big, from big to strong, from China to the world, TATU will help customers enhance their value sustainably with higher standard.

1,I need some road marking paint for test, can you provide it?

Yes, of course. We can provide free paint samples, for the laboratory testing or actual testing, but you need to pay the postage.
If you need samples of road marking paint, please contact our sales engineer or leave a message to us, please tell us which kind of road marking paint that you need, how much do you need, and the recipient's name, address, postcode and telephone number.
Once we receive your information, we will promptly contact you to confirm the information and postage, and prepare the paint samples for you.
After receipt of postage, we will immediately send the paint samples to the address you specify by TNT, DHL, FEDEX or any other first class courier company.
Thanks for your support for our products, if any other questions, please contact us, thank you.

2,I want to visit your factory, what should I do?

As Asia's largest road marking machines and road marking paints manufacturer, every year hundreds of clients from around the world visit our factory, visit our road marking machines and road marking paint workshop. If you also wanted come to China and visit our factory, then the following content will provide you with detailed instructions. Firstly, if you decide to visit our factory, please notify our sales engineer who is in touch with you, as soon as possible. Tell him / her the number of visitors and the date, so we can arrange the reception. Secondly, prepare the passport and visa to China. If you need our assistance, please contact with our sales engineer, we will try our best. You can find the Chinese embassies and consulates' contact information in the following websites: http://www.fmprc.gov.cn/eng/wjb/zwjg/2490/ http://www.cnr.cn/service/wjb/ Thirdly, After obtaining the visa, you need to make sure the route and schedule and scheduled flights. If you need us to scheduled return ticket or hotel for you, please contact our sales engineer, along with a scanned copy of your passport. We are located in Zhengzhou City, Henan Province, China, you can first fly to Beijing, Shanghai, Guangzhou or Hong Kong, and then transfer to Zhengzhou. Fourthly, After ticket booking, please give the ticket information to our sales engineer, we will arrange car to pick you up. In order to give you a pleasant journey, if you have any other needs, please inform our sales engineers in advance. Thank you. We look forward to your visit.

3,Do you have the road marking machine in stock? When can you delivery?

As Asia's largest road marking machines and road marking paints manufacturer, almost all models of products are in stock, except the big driving-type road marking machines. Please contact our sales engineer or leave us a message to get the latest accurate information. If we have the products in stock, after receipt of payment, we will delivery in 5 business days. If we don't have it in stock, different models, different production cycles, please contact the sales engineer to confirm the delivery time. Thanks for your support for our products, if any other questions, please contact us, thank you.

4,What payment methods do you accept?

Thanks for ordering our road marking equipment & material. About the payment terms:

1. T/T (Telegraphic Transfer) Total amount <=USD50,000; 30% T/T as deposit in advance, 70% T/T balance before ship out; or 100% T/T.

2. L/C (Letter of Credit) Total amount >USD50,000; 100% L/C; or 30% T/T as deposit in advance, 70% L/C at sight. In international trade, T/T is a normal, fast and convenient payment terms. Many of our clients prefer to use this method. And here please note that, we only accept confirmed, irrevocable sight L/C, and must open by the big international bank.

5,How do you pack and ship the road marking machine?

Small and Medium Size Machine: Plywood packing, custom fumigation free; ship by sea or air. Big Size Road Marking Machine and Paints: Container packing, ship by sea. Photos about Packing and Shipping: We will try our best to make sure every detail is perfect, please rest assured.
