Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MTF
-
Weight:
-
2500 KG
-
Marketing Type:
-
Other
-
Max Speed:
-
600 pcs/min
-
Product name:
-
Bag making machine
-
Application:
-
Manufacturing Plant
-
Function:
-
Multifunctional
-
Usage:
-
Making bag
-
Type:
-
Fully Automatic
-
Keyword:
-
Easy Operation
-
Voltage:
-
220V
-
Certification:
-
CE Certificate
Quick Details
-
Machine Type:
-
Bag Forming Machine
-
Bag Type:
-
Shopping Bag
-
Material:
-
Plastic
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MTF
-
Weight:
-
2500 KG
-
Marketing Type:
-
Other
-
Max Speed:
-
600 pcs/min
-
Product name:
-
Bag making machine
-
Application:
-
Manufacturing Plant
-
Function:
-
Multifunctional
-
Usage:
-
Making bag
-
Type:
-
Fully Automatic
-
Keyword:
-
Easy Operation
-
Voltage:
-
220V
-
Certification:
-
CE Certificate
I. PRODUCT INTRODUCTION

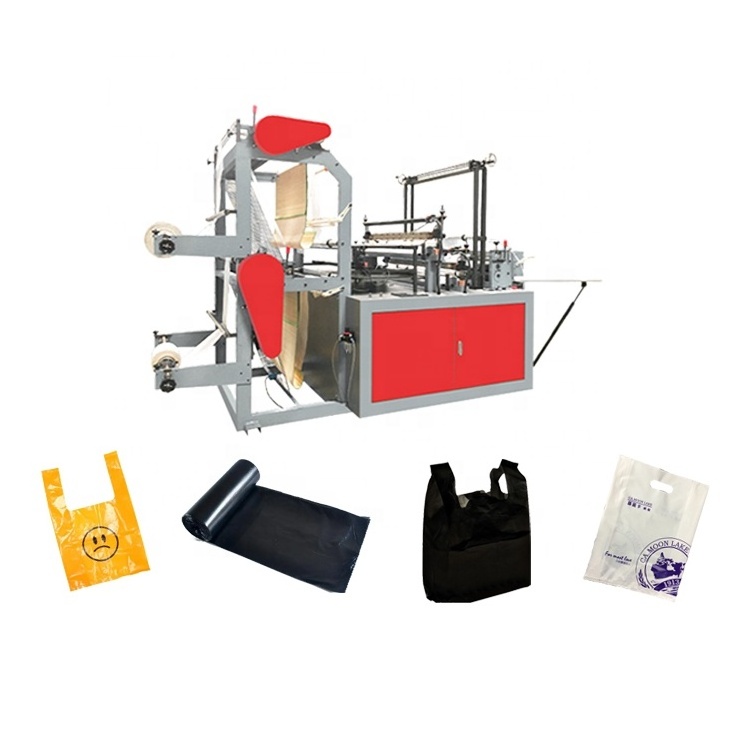

II.MODEL A: DOUBLE LAYER DUAL CHANNELS BAG MAKING MACHINE
Product function: suitable for producing HDPE/LDPE flat pockets and vest bags
Performance and features:
1. Computer automatic control, automatic counting and counting alarm can be set, high efficiency, saving larbor cost and time;
2. From the film roll to the finished bag, it is fully automatic and one-time completion;
3. Stepper motor fixed length, photoelectric tracking, accurate and stable, and photoelectric control is used for feeding;
4. Adopt heat-sealing and cold-cutting device, intelligent temperature control system to make the bag seal firmly and smoothly;
5. Stepper adopts frequency converter to control the speed.
|
Product model
|
MTF-DDC-600
|
MTF-DDC-800
|
MTF-DDC-1000
|
MTF-DDC-1200
|
MTF-DDC-1300
|
|
Max. bag width
|
500 mm
|
700 mm
|
1000 mm
|
1200 mm
|
1300 mm
|
|
Max. bag length
|
1400 mm
|
1400 mm
|
1400 mm
|
1400 mm
|
1400 mm
|
|
Production capacity
|
(20~60)*4 m/min
|
(20~60)*4 m/min
|
(20~60)*4 m/min
|
(20~60)*4 m/min
|
(20~60)*4 m/min
|
|
Cutting thickness
|
0.01~0.3 mm
|
0.01~0.3 mm
|
0.01~0.3 mm
|
0.01~0.3 mm
|
0.01~0.3 mm
|
|
Power
|
220V, 12KW
|
220V, 12KW
|
220V, 12KW
|
220V, 12KW
|
220V, 12KW
|
|
Dimension
|
2.3*1.2*1.9 m
|
2.3*1.4*1.9 m
|
2.3*1.6*1.9 m
|
2.3*1.8*1.9 m
|
2.3*1.9*1.9 m
|
FINISHED PRODUCTS
Product Parts
Server Driver
Magnetic
Powder Brake
Base Silicone
The device that adjusts bag length
Punching Device
Swing Arm
Conveyor
.
Blowing Device
Independent
Copper Knife
III. MODEL B: DOUBLE LAYER SINGLE CHANNEL BAG MAKING MACHINE
|
Product model
|
MTF-DSC-600
|
MTF-DSC-800
|
MTF-DSC-1000
|
MTF-DSC-1200
|
MTF-DSC-1300
|
|
Max. bag width
|
500 mm
|
700 mm
|
900 mm
|
1100 mm
|
1200 mm
|
|
Max. bag length
|
1400 mm
|
1400 mm
|
1400 mm
|
1400 mm
|
1400 mm
|
|
Production capacity
|
20~60 m/min
|
20~60 m/min
|
20~60 m/min
|
20~60 m/min
|
20~60 m/min
|
|
Cutting thickness
|
0.01~0.3 mm
|
0.01~0.3 mm
|
0.01~0.3 mm
|
0.01~0.3 mm
|
0.01~0.3 mm
|
|
Power
|
220V, 12KW
|
220V, 12KW
|
220V, 12KW
|
220V, 12KW
|
220V, 12KW
|
|
Dimension
|
2.6*1.2*1.9 m
|
2.3*1.4*1.9 m
|
2.3*1.6*1.9 m
|
2.3*1.8*1.9 m
|
2.3*1.9*1.9 m
|
IV. MODEL C: SINGLE LAYER SINGLE CHANNEL BAG MAKING MACHINE
|
Product model
|
MTF-SSC-600
|
MTF-SSC-800
|
MTF-SSC-1000
|
MTF-SSC-1200
|
MTF-SSC-1300
|
|
Max. bag width
|
500 mm
|
700 mm
|
900 mm
|
1100 mm
|
1200 mm
|
|
Max. bag length
|
1400 mm
|
1500 mm
|
1500 mm
|
1400 mm
|
1400 mm
|
|
Production capacity
|
20~60 m/min
|
20~60 m/min
|
20~60 m/min
|
20~60 m/min
|
20~60 m/min
|
|
Cutting thickness
|
0.01~0.3 mm
|
0.01~0.3 mm
|
0.01~0.3 mm
|
0.01~0.3 mm
|
0.01~0.3 mm
|
|
Power
|
220V, 12KW
|
220V, 12KW
|
220V, 12KW
|
220V, 12KW
|
220V, 12KW
|
|
Dimension
|
2.6*1.2*1.5 m
|
2.3*1.4*1.5 m
|
2.3*1.6*1.7 m
|
2.3*1.8*1.7 m
|
2.3*1.9*1.7 m
|
V. MODEL D: SMALL BAG MAKING MACHINE
|
Product model
|
MTF-200Z
|
MTF-300Z
|
MTF-400Z
|
MTF-500Z
|
MTF-600Z
|
|
Max. bag width
|
150 mm
|
250 mm
|
350 mm
|
450 mm
|
550 mm
|
|
Max. bag length
|
0.1 ~99999.9 mm
|
0.1 ~99999.9 mm
|
0.1 ~99999.9 mm
|
0.1 ~99999.9 mm
|
0.1 ~99999.9 mm
|
|
Production capacity
|
0~999 mm/s
|
0~999 mm/s
|
0~999 mm/s
|
0~999 mm/s
|
0~999 mm/s
|
|
Cutting thickness
|
0.01~0.8 mm
|
0.01~0.8 mm
|
0.01~0.8 mm
|
0.01~0.8 mm
|
0.01~0.8 mm
|
|
Power
|
220V, 120W
|
220V, 120W
|
220V, 120W
|
220V, 250W
|
220V, 250W
|
|
Dimension
|
57*47*58 cm
|
66*55*63 cm
|
74*55*65 cm
|
87*60*73 cm
|
95*87*76 cm
|
01 CONTROL PANEL
Microcomputer control system, LCD screen with all digital keys, simple operation, easy to set length, speed, batch, total
02 TEMPERATURE CONTROLLABLE
LCD display interface, you can grasp the machine temperature at a glance
03 SPECIAL TOOL
Imported high-quality steel knife, durable
FINAL FINISHED PRODUCT
