Quick Details
-
Brand Name:
-
ONNT
-
Model:
-
SRC
-
Type:
-
Double Acting
-
Bore size:
-
25/32/40/50mm
-
Fluid:
-
Air
-
Rotation direction:
-
Turn left or Turn right
-
Port Size:
-
M5X0.8 G1/8" G1/4"
-
Working Temperature:
-
-20-70℃
-
Repeatability:
-
±2
-
Rotation angle:
-
90℃
-
Cushion type:
-
Bumper
Quick Details
-
Weight (KG):
-
1.5
-
Marketing Type:
-
New Product 2021
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ONNT
-
Model:
-
SRC
-
Type:
-
Double Acting
-
Bore size:
-
25/32/40/50mm
-
Fluid:
-
Air
-
Rotation direction:
-
Turn left or Turn right
-
Port Size:
-
M5X0.8 G1/8" G1/4"
-
Working Temperature:
-
-20-70℃
-
Repeatability:
-
±2
-
Rotation angle:
-
90℃
-
Cushion type:
-
Bumper

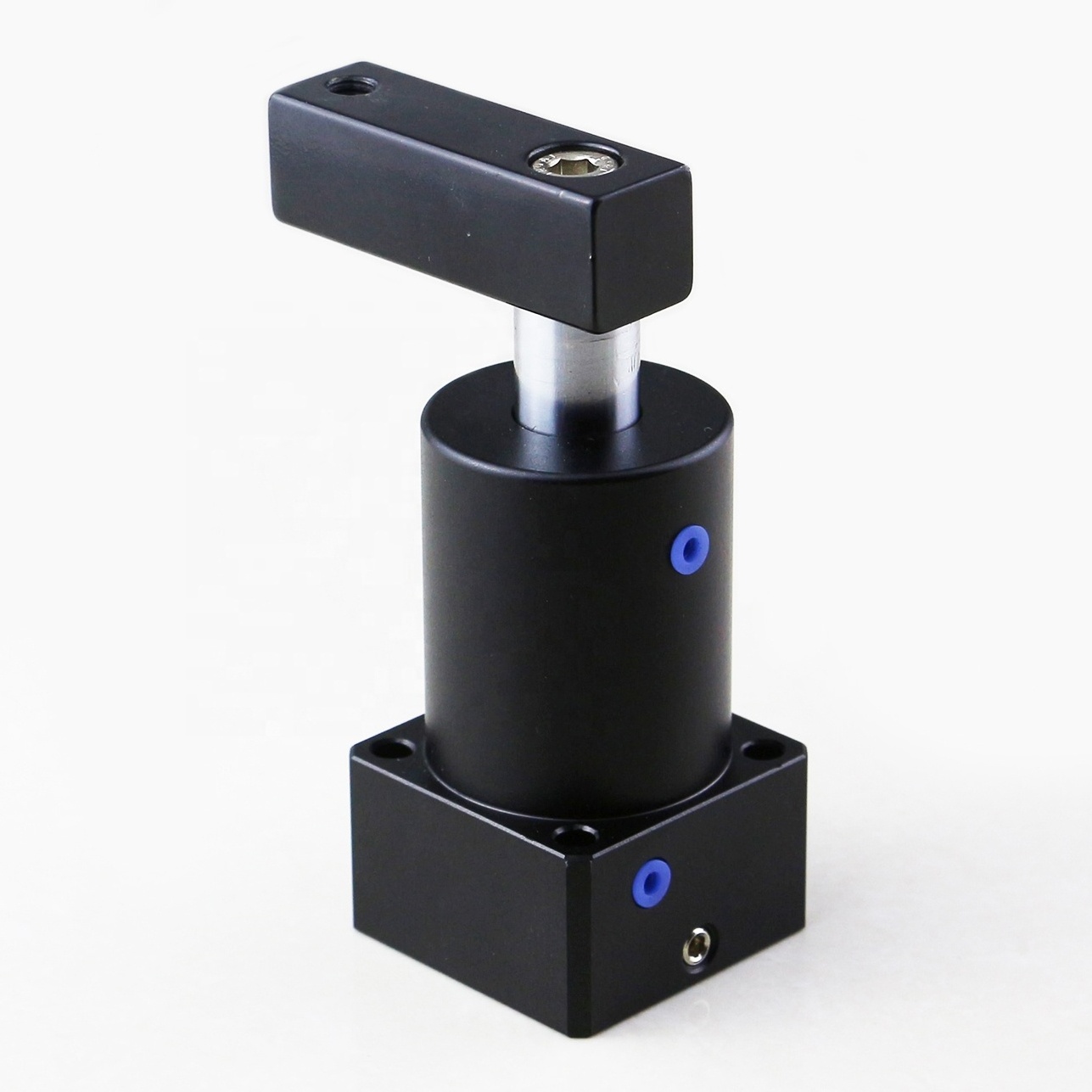

Airtac 90 Degree Turn Left or Turn Right SRC / ACK Pneumatic Clamping Cylinder Rotary Type Pneumatic Air Swing Clamp Cylinder
Ordering Code
SRC - 32 - L
Modle Bore Rotation
SRC: Rotary clamp cylinder(withou Magnet) L: Left
R:Right
Specifications
| Bore size | 25 | 32 | 40 | 50 | 63 |
| Acting type | Double acting | ||||
| Fluid | Air(to be filtered by 40 µm filter element) | ||||
| Operating pressure | 0.15~9.5MPa | ||||
| Temperature °C | 0~60 | ||||
| The use of speed | 30~500 | ||||
| Rotary Stroke | 11 | 13 | 15 | ||
| Under the pressure stroke | 11 | 13 | 15 | ||
| Rotation Angle | 90℃ Customizable(0℃, 45℃, 60℃) | ||||
| Rotation Direction | Turn left(from right to left)-L; turn right(from left to right)-R | ||||
| Buffer Direction | Rubber gasket buffer | ||||
| Lubrication | Free supply mode | ||||
| Port size | M5×0.8 | M5×0.8 | |||
Dimensions
