Quick Details
-
Model Number:
-
LC20-20NP2
-
Type:
-
Photoelectric SensorS
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
GTRIC
-
Theory:
-
presence detection
-
Output:
-
Npn-Pnp NC (default)/relay NO/relay NC (optional)
-
Supply voltage:
-
24VDC±10%
-
Optical axis spacing:
-
20mm/40mm
-
Protection height:
-
60-2000mm
-
Protective distance:
-
0.1-2000mm
-
cross-sectional size:
-
30*30mm
-
Resist light interference:
-
10000Lux
-
Response time:
-
<10ms
-
Protection function:
-
IP 65
-
Warranty:
-
1 Year
Quick Details
-
Use:
-
positioning
-
Mounting Type:
-
threaded installation
-
Description:
-

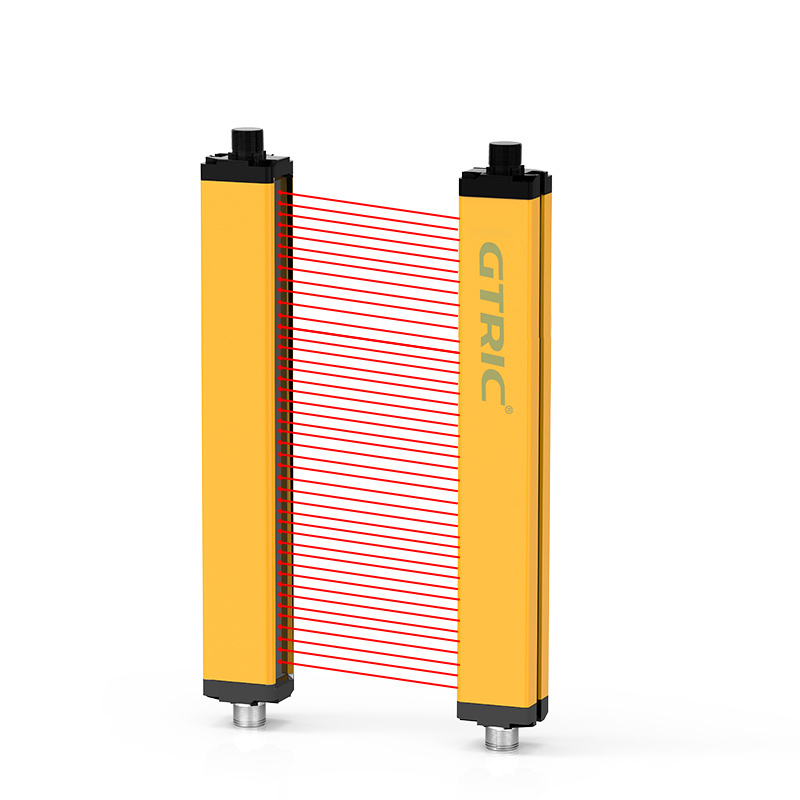

Safety Light Curtain Sensors, Light Curtain Sensor, Light Curtain Sensor
-
Model Number:
-
LC20-20NP2
-
Type:
-
Photoelectric SensorS
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
GTRIC
-
Theory:
-
presence detection
-
Output:
-
Npn-Pnp NC (default)/relay NO/relay NC (optional)
-
Supply voltage:
-
24VDC±10%
-
Optical axis spacing:
-
20mm/40mm
-
Protection height:
-
60-2000mm
-
Protective distance:
-
0.1-2000mm
-
cross-sectional size:
-
30*30mm
-
Resist light interference:
-
10000Lux
-
Response time:
-
<10ms
-
Protection function:
-
IP 65
-
Warranty:
-
1 Year
|
Protection height
|
60-2000mm（regular）
|
|
Working temperature
|
1-10-55°
|
|
||||
|
Optical axis spacing
|
20mm/40mm
|
|
Working environment humidity
|
<85%
|
|
||||
|
Number of optical axes
|
4,6,8,10.....
|
|
Output current
|
≤200mA
|
|
||||
|
Operating Voltage
|
DC24V±20%
|
|
power
|
<5W
|
|
||||
|
Insulation resistance
|
≥100MΩ
|
|
Resist light interference
|
10000Lux
|
|
||||
|
Response time
|
<10ms
|
|
Dielectric strength
|
ACI500V.60S
No breakdown or flicker
|
|
||||
|
Protective distance
|
0.1-2000mm（Customizable）
|
|
cross-sectional size
|
30*30mm
|
|
||||
|
|
|
|
Protection class
|
IP65
|
|
||||
|
output method
|
Npn or Pnp (regular)/relay NO/relay NC (optional)
|
|
|
|
|
||||
|
Light curtain optical axis spacing 20mm series
|
|
|
|
|
||||
|
'Number of beams
|
Protection height（mm）
|
Shell height（mm）
|
Model（regular）
NPN or PNP NO/NC
|
Model(Relay output)
|
||||
|
4
|
60
|
125
|
LC20-04NP2
|
LC20-04J
|
||||
|
6
|
100
|
165
|
LC20-06NP2
|
LC20-06J
|
||||
|
8
|
140
|
205
|
LC20-08NP2
|
LC20-08J
|
||||
|
10
|
180
|
245
|
LC20-010NP2
|
LC20-010J
|
||||
|
12
|
220
|
285
|
LC20-12NP2
|
LC20-12J
|
||||
|
14
|
260
|
325
|
LC20-14NP2
|
LC20-14J
|
||||
|
16
|
300
|
365
|
LC20-16NP2
|
LC20-16J
|
||||
|
18
|
340
|
405
|
LC20-18NP2
|
LC20-18J
|
||||
|
20
|
380
|
445
|
LC20-20NP2
|
LC20-20J
|
||||
|
22
|
420
|
485
|
LC20-22NP2
|
LC20-22J
|
||||
|
24
|
460
|
525
|
LC20-24NP2
|
LC20-24J
|
||||
|
26
|
500
|
565
|
C20-26NP2
|
C20-26J
|
||||
|
28
|
540
|
605
|
LC20-28NP2
|
LC20-28J
|
||||
|
30
|
580
|
645
|
LC20-30NP2
|
LC20-30J
|
||||
|
32
|
620
|
685
|
LC20-32NP2
|
LC20-32J
|
||||
|
34
|
660
|
725
|
LC20-34NP2
|
LC20-34J
|
||||
|
36
|
700
|
765
|
LC20-36NP2
|
LC20-36J
|
||||
|
38
|
740
|
805
|
LC20-38NP2
|
LC20-38J
|
||||
|
40
|
780
|
845
|
LC20-40NP2
|
LC20-40J
|
||||
|
42
|
820
|
885
|
LC20-42NP2
|
LC20-42J
|
||||
|
44
|
860
|
925
|
LC20-44NP2
|
LC20-44J
|
||||
|
46
|
900
|
965
|
LC20-46NP2
|
LC20-46J
|
||||
|
48
|
940
|
1005
|
LC20-48NP2
|
LC20-48J
|
||||
|
50
|
980
|
1045
|
LC20-50NP2
|
LC20-50J
|
||||
About Us
Wenzhou Gtric Technology Co., Ltd. is located in Yueqing IoT sensors Park, which covers 5,000 square meters, with over 100 employees. We are focuses on intelligent manufacturing and industrial automation, our main businesses are sensors, encoders, button switch, coupling, expansion set and other industrial automation products, providing standard and individual products and solutions for customers.
Our products cover over 20 series, 1000specificatison, which have passed CCC, CE, UL, ISO9001 certification as well as EU RoHS Environmental Directives. Based on our technical advantages, Gtric can provide industrial automation solution according to customers’ requirements.
Q: Can I customize a special sensor?
A: Sure, we also offer customized services.
Q : Can I get a lower price if I order large quantities?
A : Yes, Cheaper prices with bigger size orders, please contact us and we will give you a quatation.
Q: If I need a sample for pretest, do you sale sample for this inquiry?
A: Yes, we can sale sample for pretest. If you need, please contact us.
Q : When will you ship my order?
A : 48 hours shipping guarantee for stock items and 10-15 days for non-stock items.
