Quick Details
-
Product:
-
Wall-mounted Motion Curtain PIR Movement Sensor Detector
-
Operating Voltage:
-
DC 3V, CR123A Battery
-
Material:
-
ABS Plastic
-
Usage:
-
Fire Protection,Office building, warehouse etc
-
Color:
-
White
-
Dimension:
-
56*95*55mm(L*W*H)
-
Detection range:
-
0~6 meters three-dimensional fan-shaped space
-
Working Temperature & Humidity:
-
-10℃~50℃
-
Communication protocol:
-
BLE 4.1
-
Warranty:
-
12 months
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
QP
-
Model Number:
-
QP-IX36-BLE PIR curtain sensor
-
Product:
-
Wall-mounted Motion Curtain PIR Movement Sensor Detector
-
Operating Voltage:
-
DC 3V, CR123A Battery
-
Material:
-
ABS Plastic
-
Usage:
-
Fire Protection,Office building, warehouse etc
-
Color:
-
White
-
Dimension:
-
56*95*55mm(L*W*H)
-
Detection range:
-
0~6 meters three-dimensional fan-shaped space
-
Working Temperature & Humidity:
-
-10℃~50℃
-
Communication protocol:
-
BLE 4.1
-
Warranty:
-
12 months

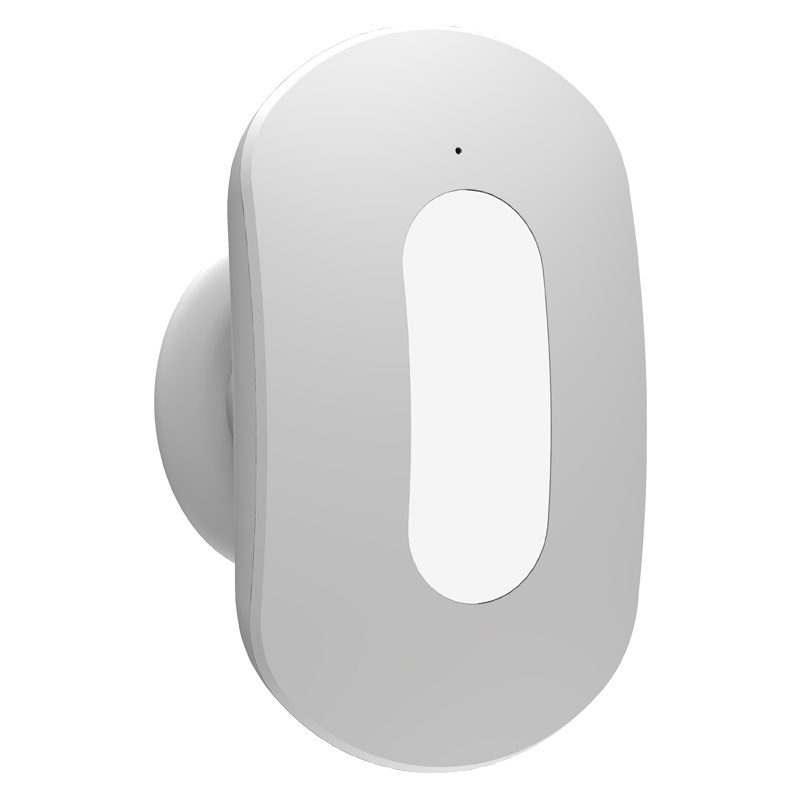

China Supplier Wireless Wall-mounted Motion Curtain PIR Movement Sensor Detector
This device is a motion sensor using BLE protocol to monitors the
activity in the area and report to the smart hub,the application are remote monitoring, scene linkage and other functions.
Functions:
1.Imported infrared sensor, high sensitivity.
2.Design of sealed induction chamber, avoid false positives by hot air interference.
3.With fuzzy logic algorithm & fuzzy recognition technology, pet-immune.
4.Adjustable detection sensitivity.
5.LED status indication.
6.Battery power real-time detection, low battery & tamper Report.
7.Ultra-low power consumption, long standby time and longer battery working life.
8.Custom made ZigBee/Zwave/Ble/RF protocol available.
Products Description
|
Battery
|
1pcs CR123A battery
|
|
Transmitting distance
|
≤100m（Open area）
|
|
Max Coverage
|
0-6 meters three-dimensional fan-shaped space
|
|
Detect angle
|
100°
|
|
Dimension
|
56x95x55(mm)
|
|
Freq/Communication Protocol
|
BLE
, 433、868、315、ZWAVE optional
|
|
Output Signal Typel
|
Alarm report, tamper report, battery level status, heartbeat report
|
|
Working Hum. & Tem.
|
-5℃~55℃; ≤ 95%RH no condensation
|
|
Receive sensitivity
|
-95dBm
|
