Quick Details
-
Model Number:
-
YYQ-160A
-
PRODUCT NAME:
-
Automotive Crankshaft Balancing Machine
-
CERTIFICATION:
-
CE,CCC ,SONCAP
-
QUATLIAY CONTROL:
-
ISO9001
-
SHIPPING:
-
BY SEA OR BY AIR
-
LOADING:
-
STRONG WOODEN PALLET
-
SERVICE:
-
LIFETIME SERVICE SUPPORT
-
FACTORY:
-
PROFESSIONAL MANUFACTURER
-
COMPUTER:
-
WINDOWS SYSTEM
-
WARRANT TIME:
-
ONE YEAR
Quick Details
-
Power:
-
Electronic
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
zilin, zilin
-
Model Number:
-
YYQ-160A
-
PRODUCT NAME:
-
Automotive Crankshaft Balancing Machine
-
CERTIFICATION:
-
CE,CCC ,SONCAP
-
QUATLIAY CONTROL:
-
ISO9001
-
SHIPPING:
-
BY SEA OR BY AIR
-
LOADING:
-
STRONG WOODEN PALLET
-
SERVICE:
-
LIFETIME SERVICE SUPPORT
-
FACTORY:
-
PROFESSIONAL MANUFACTURER
-
COMPUTER:
-
WINDOWS SYSTEM
-
WARRANT TIME:
-
ONE YEAR

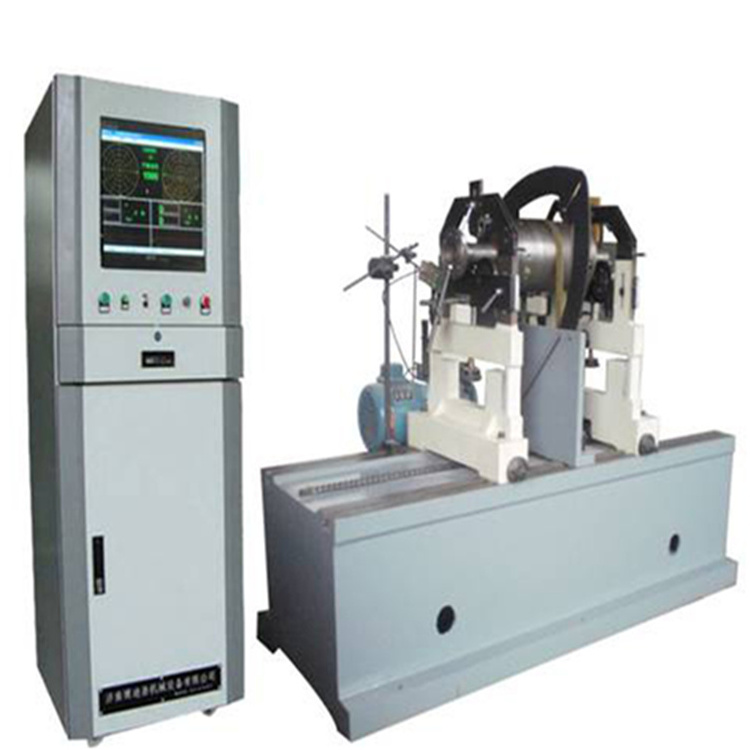

Automotive crankshaft balancing machine
Its specialty that there are two bearing pedestals selection and mostly satisfied variety rotors , etc .. Driven by belt,it is simple to load and unload,quick to start and with high precision and low failure rate.
| Model | YYQ-5A | YYQ-16A | YYQ-50A | YYQ-100A | YYQ-160A | YYQ-300A |
| Max. mass of workpiece(kg) | 0.1-5 | 0.3-16 | 1-50 | 2-100 | 2-160 | 5-300 |
| Max.diameter of workpiece(mm) | φ400 | φ500 | φ900 | φ900 | φ950 | φ1200 |
| Distance between two bearing suppo(mm) | 50-600 | 60-600 | 60-800 | 80-1000 | 100-1400 | 150-1500 |
| Max.rotor Diameter(mm) | φ3-40 | φ5-40 | φ8-70 | φ10-140 | φ10-180 | φ20-180 |
| Balanncing speed min(r/mm) | 400-5000 | 400-5000 | 300-5000 | 300-5000 | 300-2500 | 300-2500 |
| Min. achievableresidualun balance(g.mm/kg) | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 |
| Unbvalance reduction ratio(%) | ≥90 | ≥90 | ≥90 | ≥90 | ≥90 | ≥90 |
| Drive power(kw) | 0.09 | 0.18 | 0.75 | 0.85 | 0.85 | 4 |
| Model | YYQ-500A | YYQ-1000A | YYQ-1600A | YYQ-3000A | YYQ-5000A | YYQ-8000A |
| Max. mass of workpiece(kg) | 10-500 | 10-1000 | 30-1600 | 100-3000 | 200-5000 | 300-8000 |
| Max.diameter of workpiece(mm) | φ1500 | φ1500 | φ1800 | φ2000 | φ2000 | φ2000 |
| Distance between two bearing suppo(mm) | 150-1500 | 150-2600 | 150-2600 | 150-2600 | 300-3000 | 300-3000 |
| Max.rotor Diameter(mm) | φ20-240 | φ20-240 | φ20-240 | φ15-300 | φ40-300 | φ50-360 |
| Balanncing speed min(r/mm) | 180-2500 | 180-2500 | 180-2500 | 180-2500 | 180-2500 | 180-2500 |
| Min. achievableresidualun balance(g.mm/kg) | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 |
| Unbvalance reduction ratio(%) | ≥90 | ≥90 | ≥90 | ≥90 | ≥90 | ≥90 |
| Drive power(kw) | 4 | 5.5 | 7.5 | 11 | 15 | 22 |
This balancing machine is designed for balancing all kinds of turbocharger rotors and other rotors such as kinds of good-sized and medium-sized turbocharger rotor,turbocharger impellers,turbocharger turbines,turbocharger compressors,motors, textile machinery, crankshaft,roller,fans,shaft according to demanding of our customers.
