Quick Details
-
Brand Name:
-
/
-
Model Number:
-
S5735S-L48P4X-A1
-
Place of Origin:
-
Beijing, China, Beijing, China
-
Model:
-
S5735S-L48P4X-A1
-
Forwarding Performance:
-
132 Mpps
-
Fixed Ports:
-
48 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports
-
PoE+:
-
Supported
-
Dimensions (W x D x H):
-
442 mm x 420 mm x 43.6 mm
-
Maximum power consumption:
-
274W
-
Minimum power consumption:
-
97W
-
Warranty:
-
12 Month
-
Condition:
-
100% Original Brand
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
176 Gbit/s/432 Gbit/s
-
Brand Name:
-
/
-
Model Number:
-
S5735S-L48P4X-A1
-
Place of Origin:
-
Beijing, China, Beijing, China
-
Model:
-
S5735S-L48P4X-A1
-
Forwarding Performance:
-
132 Mpps
-
Fixed Ports:
-
48 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports
-
PoE+:
-
Supported
-
Dimensions (W x D x H):
-
442 mm x 420 mm x 43.6 mm
-
Maximum power consumption:
-
274W
-
Minimum power consumption:
-
97W
-
Warranty:
-
12 Month
-
Condition:
-
100% Original Brand
Details Images
Installation Instructions
We will test the switches before shipping. All the switches are new and original
|
|

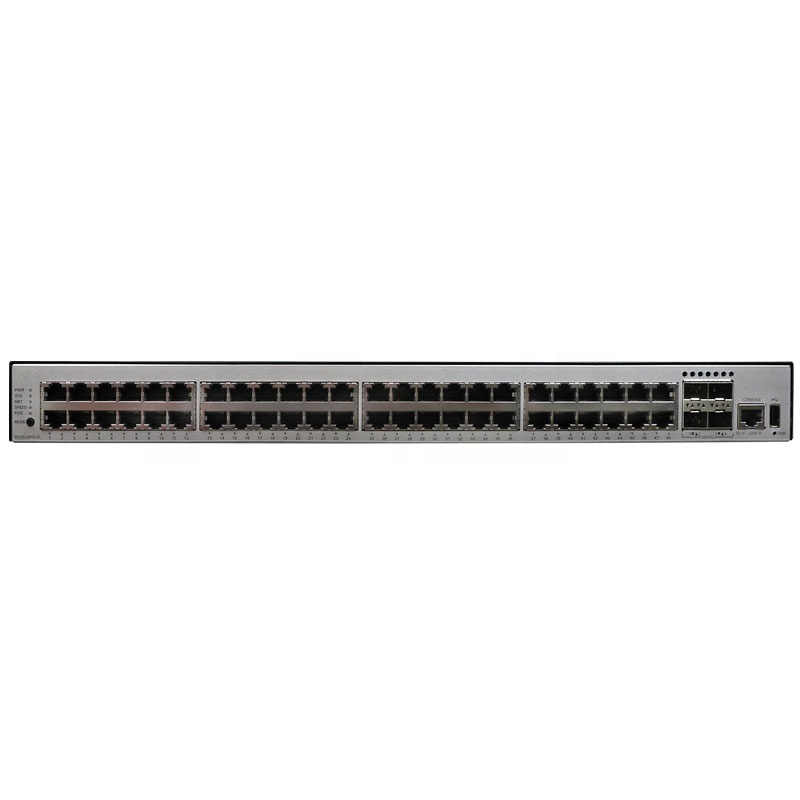

poe switch network S5735S-L48P4X-A1 outdoor ethernet switch
|
|
Forwarding Performance
|
132 Mpps
|
|
Fixed Ports
|
48 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports
|
|
PoE+
|
Supported
|
|
MAC Features
|
IEEE 802.1d compliance
MAC address auto-learning and aging Static, dynamic, and black hole MAC address entries Packet filtering based on source MAC addresses |
|
VLAN Features
|
4094 VLANs
Guest VLAN, Voice VLAN GVRP MUX VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports 1:1 and N:1 VLAN mapping |
|
IP Routing
|
Static route, RIPv1/v2, RIPng, OSPF, OSPFv3, ECMP, IS-IS, IS-ISv6, BGP, BGP4+
|
|
Super Virtual Fabric (SVF)
|
Plug-and-play SVF clients
Automatic software package and patch loading to SVF clients One-click and automatic delivery of service configurations Independent SVF client operation |
|
Interoperability
|
VBST (compatible with PVST/PVST+/RPVST)
LNP (similar to DTP) VCMP (similar to VTP) |
poe switch network S5735S-L48P4X-A1 outdoor ethernet switch
CloudEngine S5735-L is a series of simplified gigabit access switches that provide 12–48 flexible all-GE downlink ports and four fixed GE or 10 GE uplink ports. They are designed for enterprise campus network access and gigabit to the desktop.
Built on next-generation, high-performance hardware and powered by Versatile Routing Platform (VRP), CloudEngine S5735-L switches feature flexible
Ethernet networking, diversified security control, and support for multiple Layer 3 routing protocols — providing higher performance and more powerful service processing capabilities for networks.
Product Selling Points
Abundant Service Functions
Provides multiple Layer 3 features such as OSPF, IS-IS, BGP, and VRRP, enabling a variety of voice, video, and data applications.
Provides multiple Layer 3 features such as OSPF, IS-IS, BGP, and VRRP, enabling a variety of voice, video, and data applications.
Simplified Network O&M
Super Virtual Fabric (SVF), with plug-and-play capabilities, virtualizes the core/aggregation switch, access switch, and Access
Point (AP) into a single logical device for simplified network O&M.
Super Virtual Fabric (SVF), with plug-and-play capabilities, virtualizes the core/aggregation switch, access switch, and Access
Point (AP) into a single logical device for simplified network O&M.
Diverse Reliability Protection
Power supplies, fan modules, and uplinks in redundancy backup dramatically enhance device reliability and ensure stable services.
Power supplies, fan modules, and uplinks in redundancy backup dramatically enhance device reliability and ensure stable services.
