Quick Details
-
Control system:
-
Nc Studio system
-
Precision (mm):
-
0.07
-
Positioning accuracy(mm):
-
0.02
-
Repeatability (mm):
-
0.02
-
Working voltage:
-
AC220V 50HZ
-
Spindle:
-
3.2/4.5/6kw Spindle
-
Spindle speed:
-
0-24000rpm
-
Key words:
-
CNC cutting machine
-
After-sales Service Provided:
-
Field maintenance and repair service
-
Certification:
-
CE
Quick Details
-
Place of Origin:
-
Shandong, China
-
Product:
-
1325 ATC cnc router multi woodworking machine
-
Working area:
-
1300*2500*200mm
-
Control system:
-
Nc Studio system
-
Precision (mm):
-
0.07
-
Positioning accuracy(mm):
-
0.02
-
Repeatability (mm):
-
0.02
-
Working voltage:
-
AC220V 50HZ
-
Spindle:
-
3.2/4.5/6kw Spindle
-
Spindle speed:
-
0-24000rpm
-
Key words:
-
CNC cutting machine
-
After-sales Service Provided:
-
Field maintenance and repair service
-
Certification:
-
CE

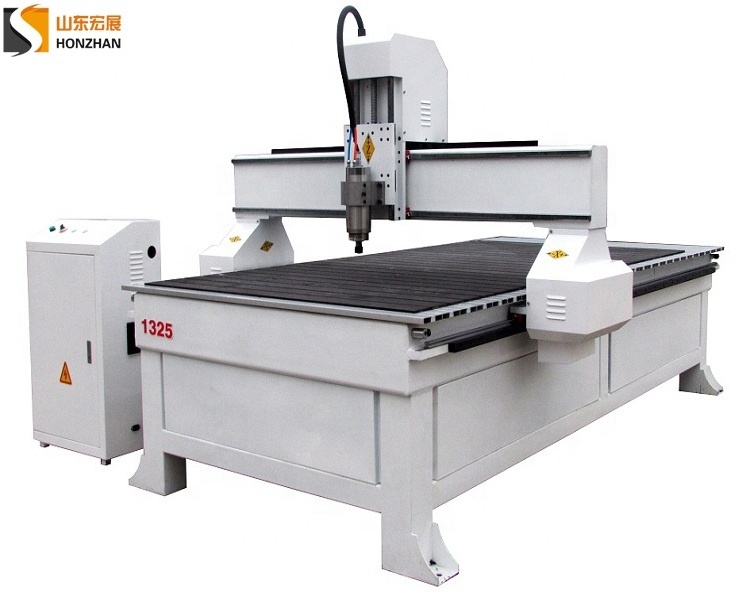

Honzhan 1325 ATC cnc router multi woodworking machine with CE certification
HZ-1325 CNC router
1. Application:
1). Furniture Decoration Industry: A large area flat plate engraving , wood panel furniture carving, wood art murals, wood cabinet doors carving.
2). Wood Products Processing: Sewing machine table, electrical counter table, sports equipment.
3). Artwork: Photo frame, jewelry box. Musical Instrument Industry: Instrument three-dimensional surface engraving, shape cutting.
2. Machine Overview:
HZ1325 is economical CNC router for woodworking, fulfilling the need for the production with most wooden materials. Device like vacuum system and dust collector etc are optional choice for different requirement as convenience to work fast and efficiently.
3. Product Features:
1). Whole lathe bed is in steel structure of high stability.
2). Racks and gears transmission with high-speed motor keeps smooth movement in fast and accuracy.
3). Break point restoring function enable the machine continue to work after sudden stop, such as accidents, tool breaking.
4). Wide software compatibility with processing files generated by Type3,Art CAM, Art cut, Auto CAD, JD Paint etc,ACD/CAM design software.
5). Auto lubrication system lubricating tracks automatically, ensure machine s precision and service time.
HZ-1325 model CNC Router specification:
|
Mode l |
HZ-R1325 |
|
Work area(X,Y,Z) |
1300*2500*200mm |
|
Machine structure |
Steel structure lathe bed, T-slot sectional materials |
|
Work holding |
By clamps |
|
Control system |
Leadshine step driver DMA860, 450B motor |
|
Precision (mm) |
0.07 |
|
Positioning accuracy(mm) |
0.02 |
|
Repeatability (mm) |
0.02 |
|
Travel speed |
20m/min |
|
Processing speed |
15m/min |
|
Spindle power |
3.2KW, Optional 5.5KW, 7.5KW |
|
Spindle |
Water cooling (0-24000rpm) |
|
Available tools(mm) |
φ3.175- 12 |
|
Drive system |
Stepper motors |
|
Working voltage |
AC220 50HZ |
|
Command code |
G code(*nc*mmg,*u00,etc),*.eng |
|
Compatible software |
Compatible with any software generating G code file in Windows98/XP/ Win7 |
|
Other Optional parts |
Dust collector , water sink, Rotary axis |
Our HZ-1325 CNC router working size 1300*2500*200mm, Z axis can be 250mm or 300mm, with high spindle working speed Water cooling(0-24000rpm), very suit for wood, door, furniture and artwork cutting.
Honzhan CNC router detail photos:
We have CNC Routes in stock, if you need them, please be free contact us. Our delivery speed is very fast !
CNC router parts:
HZ-1325 CNC router can be used for carving and cutting wood, solid wood furniture, mahogany furniture, MDF door, solid wood door, composite door , cupboard door and window , bedside cabinet, folding screen and many materials.
1. Our CNC Router warranty term is 1 year for the whole cutting machine. If any question about CNC router, we will arrange techical check and reply you with fast technical guide and solution within 24 hours by email, Skype, pictures or videos at first !
2. Our machine use plywood packaging, meet export demand. We use Water-proof plastic film package with foam protection in each corner, solid seaworthy wood Box package with steel belt, save space as much as possible for container loading.
3. We can cooperate use EXW, FOB, CFR or CIF term.
4. Standard machine delivery time: 5-7 working days, for non-standard machines and customized machines according to client s specific requirements, it would be 7 to 10 working days.
5. After shipment, we will send documents to you, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
