Quick Details
-
Model Number:
-
tungsten carbide burr
-
Product Name:
-
Carbide Burr
-
Free Samples:
-
Supply
-
Application:
-
Woodworking,Drilling Metal Carving Engraving Polishing
-
Use with:
-
High speed electric grinder and pneumatic tool
-
Shank Diameter:
-
1/4", 1/8" ,1/2" 3 ,6, 8 mm
-
Chipbreaker:
-
Single/Double/Aluma/Diamond Cut
-
Advantage:
-
Longer Service Life
-
Head Diameter:
-
3-25 mm
-
Head Length:
-
6-36 mm
-
Overall Length:
-
38-81mm
Quick Details
-
Warranty:
-
N/A
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
Gianttools
-
Model Number:
-
tungsten carbide burr
-
Product Name:
-
Carbide Burr
-
Free Samples:
-
Supply
-
Application:
-
Woodworking,Drilling Metal Carving Engraving Polishing
-
Use with:
-
High speed electric grinder and pneumatic tool
-
Shank Diameter:
-
1/4", 1/8" ,1/2" 3 ,6, 8 mm
-
Chipbreaker:
-
Single/Double/Aluma/Diamond Cut
-
Advantage:
-
Longer Service Life
-
Head Diameter:
-
3-25 mm
-
Head Length:
-
6-36 mm
-
Overall Length:
-
38-81mm
Products Description
|
item
|
Tungsten steel Hard Carbide
|
|
Cutter Pattern
|
Double Cut & Single Cut & Aluma Cut
|
|
Suitable For
|
Drilling, Metal Carving,Engraving, Polishing
|
|
Features
|
* Used to process all kinds of metal (including hardened steel) and nonmetal (such as marble, jade, bone).
* Processing hardness up toHRA85. * High production efficiency, Can reduce labor intensity. * Simple and convenient to use. * Widely used in the pneumatic or electric tools. |
|
|
* HRA: ≥ 85
* Suggested RPM:25000-50000, Max RPM 70000 * Package:Individually packaged and can be customized * Technology:100% Flat bottom silver welding tungsten carbide burrs |
|

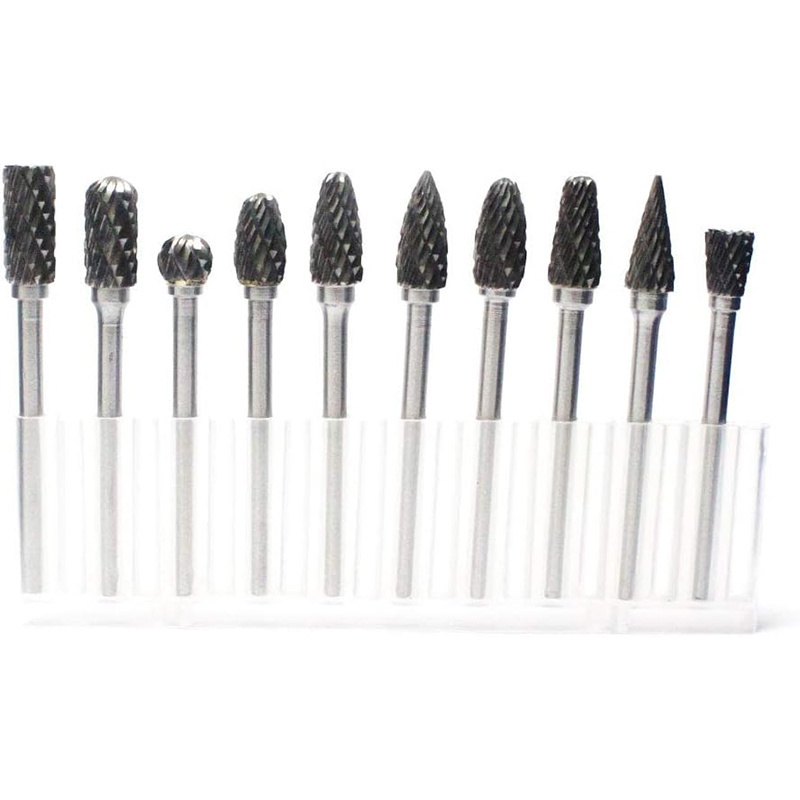

10Pcs 3*6mm |
* 5 x 4 x 0.5 inches
* 3*6mm/0.12*0.24 inch (Approx.) * This carbide rotary burr set, with 1/8'' shank is made from Tungsten Carbide. Total Length:45-50mm, Cutting Diameter 1/4'', Shank Length 35mm, Shank Diameter 1/8'' |
|
Quantity
|
10 pcs / box (1 set different shape or 10 PCS same shape)
|
Product Details
Our Advantages
Usage suggestions
Always operate the burr within the recommended speeds guide.
Always ensure the appropriate tool is used and that tis regularly maintained.
Alwaysfix the maximum length of burr in the collet.Do not exceed the recommended maximum over hang. Long shank burrs require slower running speeds.
Always use a smooth cutting action with constant movement in both directions.
Don't Run burr above the maximum operating speed,this can cause premature tooth wear.
Don' t run a burr too slowly, this can cause chipping.
Don't Sink the burr to more than one third of its periphery. Do not encapsulate.
Don't Allow burr to become too hot, this may cause the braze to soften and cause the head to become detached from the shank (only applies to burrs where head diameter is greater than the shank diameter).
