Base station dedicated DC energy meter AMC16-DETT is specially designed for base stations where have sharing requirements, and switch power supply is without the function of sub-user metering.
The meter could measure 6 circuits DC energy, and supply working current to the matched hall sensors. Meanwhile, it can realize zero drift calibration by upper computer software. have the functions of telemetering, teleindication,teleadjusting, metering at real time, energy quality abnormal alarm, data storage and processing, data interaction.
This meter can measure DC power consumption of three operators, providing detail datas for base station.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Acrel
-
Model Number:
-
AMC16-DETT
-
Accuracy Class:
-
0.5S
-
Output Voltage:
-
-48V
-
Operating Temperature:
-
-40℃-+70℃
-
Dimensions:
-
88*90*52mm
-
Application:
-
Base Station
-
Rated voltage:
-
-48VDC
-
Type:
-
DC Energy Digital Kwh Meter
-
Certificate:
-
CE/IEC
-
Installation:
-
35mm Din Rail
-
Input Voltage:
-
48V
-
Display:
-
LCD Display
-
Communication:
-
RS485 Port MODBUS-RTU Protocol
-
Power supply:
-
48V DC
-
Standard:
-
IEC62053-21
Quick Details
-
Phase:
-
6 circuits
-
Measuring Energy Range:
-
0-99999KWH
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Acrel
-
Model Number:
-
AMC16-DETT
-
Accuracy Class:
-
0.5S
-
Output Voltage:
-
-48V
-
Operating Temperature:
-
-40℃-+70℃
-
Dimensions:
-
88*90*52mm
-
Application:
-
Base Station
-
Rated voltage:
-
-48VDC
-
Type:
-
DC Energy Digital Kwh Meter
-
Certificate:
-
CE/IEC
-
Installation:
-
35mm Din Rail
-
Input Voltage:
-
48V
-
Display:
-
LCD Display
-
Communication:
-
RS485 Port MODBUS-RTU Protocol
-
Power supply:
-
48V DC
-
Standard:
-
IEC62053-21
Product Description

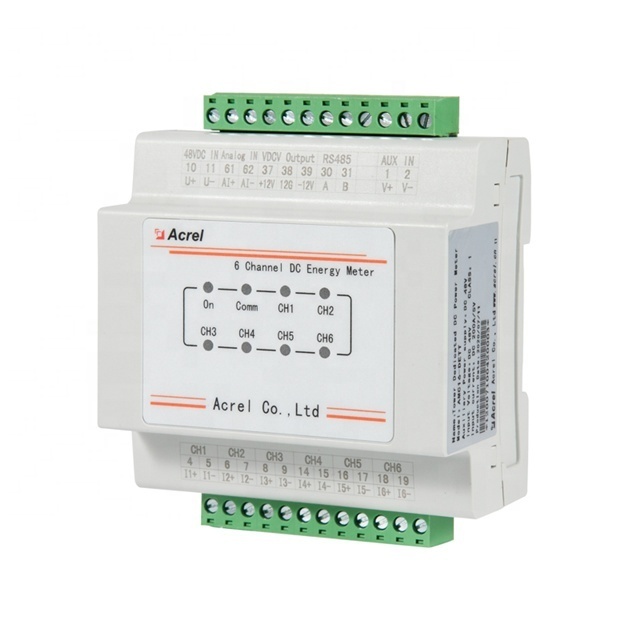

-48V 6 channel 4 circuit DC digital energy power meter for telecom base station
Specification
|
Input
|
DC voltage
|
1 channel: -48VDC
|
|
|
|
DC current
|
6 channel hall current sensor,total DC200A/5V,Telecom, Mobile,Unicom and the 1st channel reserve 50A/5V, 2nd
channel reserve 100A/5V. |
|
|
|
Grid power
monitoring |
1 channel: 0-5VDC
|
|
|
|
Overload capacity
|
Voltage:1.2times continued,2 times continued 1s;
Current: 1.2 times continued,10 times continued 1s. |
|
|
Accuracy (superposition hall sensors)
|
|
1%In≤I≤10%In error±2.5%; I>10%In error±2%
|
|
|
resolution
|
|
Voltage output accuracy 0.01V; current output accuracy 0.01A;
power output accuracy 0.01kw; energy output accuracy 0.01kwh |
|
|
Functions
|
Basic function
|
Monitor device system time, total voltage, output total current, power, energy, each channel voltage, current, power, energy; LED indicator display;485 communication
|
|
|
|
Metering function
|
Start current: under rated voltage, when the load current value of the meter doesn’t exceed 1% of the max. current, the meter starts.
Shunt running current: when there is no current in the current circuit of the meter, and 85%-125%of the rated voltage is applied on the voltage circuit, the calculator shall not have more than |
|
|
|
Alarm function
|
DC low voltage output alarm,DC high voltage output alarm,one power down alarm, module voltage loss alarm, metering branch error alarm, internal program error alarm, clock error alarm, memory failure alarm and AC input power failure alarm
|
|
|
|
Timing function
|
support broadcast timing, could remote timing to the meter by RS485
|
|
|
|
Hall CT power supply
|
:Power supply output:+12V/100Ma, -12V/50mA
|
|
|
|
Clock accuracy
|
≤0.5s/d（23℃），≤1s/d（-20℃～60℃）
|
|
|
Powe supply for ther meter
|
|
-40VDC~ -60VDC
|
|
|
Power consumption
|
|
≤2W
|
|
Appearance
Parameters
Functions
*DC rated voltage:1 circuit -48VDC
*DC current :6 channel hall current sensor,total DC200A/5V,Telecom operator 1 ,operator 2..... operator 3 and the 1st channel reserve 50A/5V, 2nd channel reserve 100A/5V.
*Communication: RS485,default baud rate:9600bps
*Main functions:Monitoring equipment system time, total voltage, output current, power and energy, each circuit voltage, current,power and energy,LED display
*Alarm function:DC low voltage output alarm,DC high voltage output alarm,one power down alarm, module voltage loss alarm, metering branch error alarm, internal program error alarm, clock error alarm, memory failure alarm and AC input power failure alarm
*Timing function:support broadcast timing, could remote timing to the meter by RS485
*Clamps power supply:Power supply output:+12V/100Ma, -12V/50mA
*Power supply for the meter:-40~-60VDC
