Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
GANGYUAN
-
Model Number:
-
TS-2B-3AX
-
Product type:
-
Push button switch
-
Dimension:
-
10mm
-
Operating Force:
-
200gf
-
Certificate:
-
CE RoHS
-
Function:
-
Momentary
-
Operating temperature:
-
+10℃~+60℃
-
Travel:
-
0.25mm±0.1mm
-
life expectancy:
-
200,000 cycles
-
LED color:
-
Red.yellow.green.white.blue.double Color
-
Circuit:
-
SPST
-
Certification:
-
CE RoHS
Quick Details
-
Protection Level:
-
High Level
-
Max. Current:
-
50mA
-
Max. Voltage:
-
12VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
GANGYUAN
-
Model Number:
-
TS-2B-3AX
-
Product type:
-
Push button switch
-
Dimension:
-
10mm
-
Operating Force:
-
200gf
-
Certificate:
-
CE RoHS
-
Function:
-
Momentary
-
Operating temperature:
-
+10℃~+60℃
-
Travel:
-
0.25mm±0.1mm
-
life expectancy:
-
200,000 cycles
-
LED color:
-
Red.yellow.green.white.blue.double Color
-
Circuit:
-
SPST
-
Certification:
-
CE RoHS

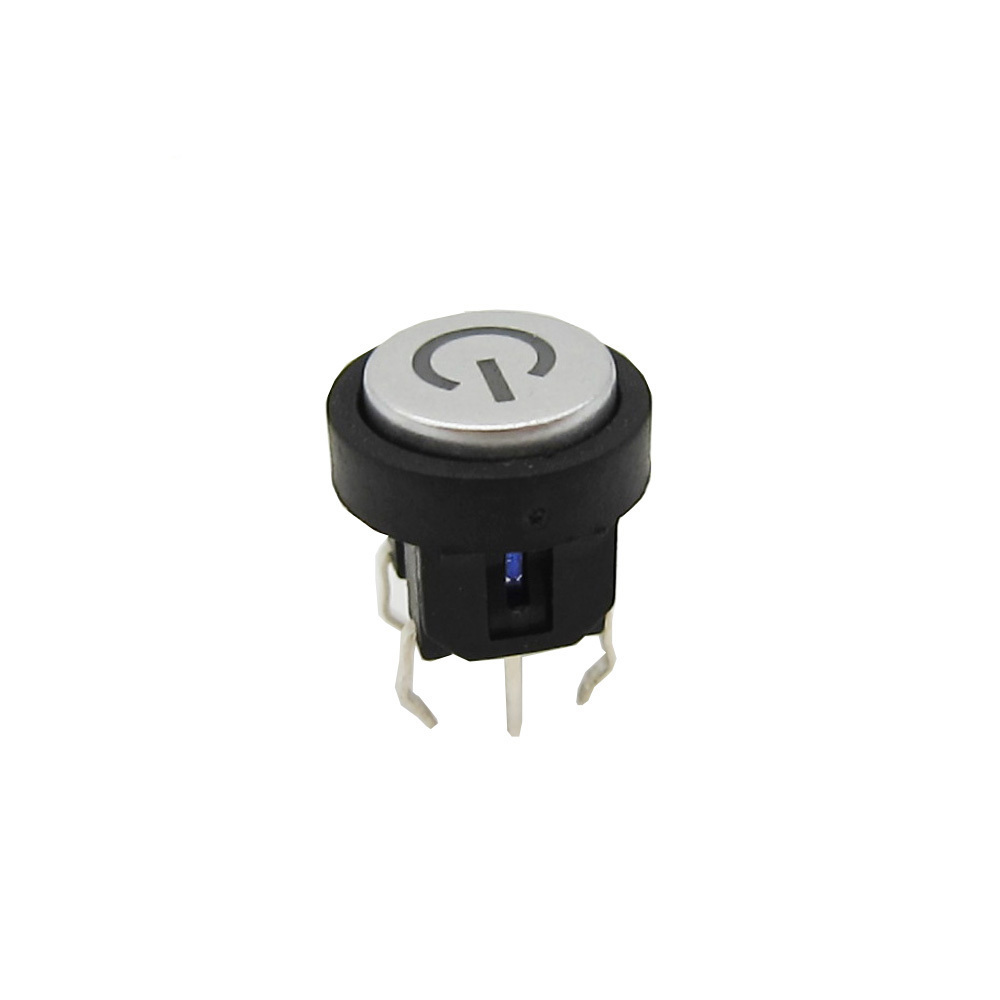

10mm led switch spst pcb mount push button switch rubber boot push button switch
Product Description
|
Model No.: |
TS-2B-3AX |
|
Operation life : |
200,000 cycles |
| Operating force | 2.5±0.5N |
| Environmental temperature | -10 ℃ ~60℃ |
|
Travel |
0.25mm ±0.1mm |
|
Button Diameter |
10mm |
Wiring diagram :
Series products photos:
