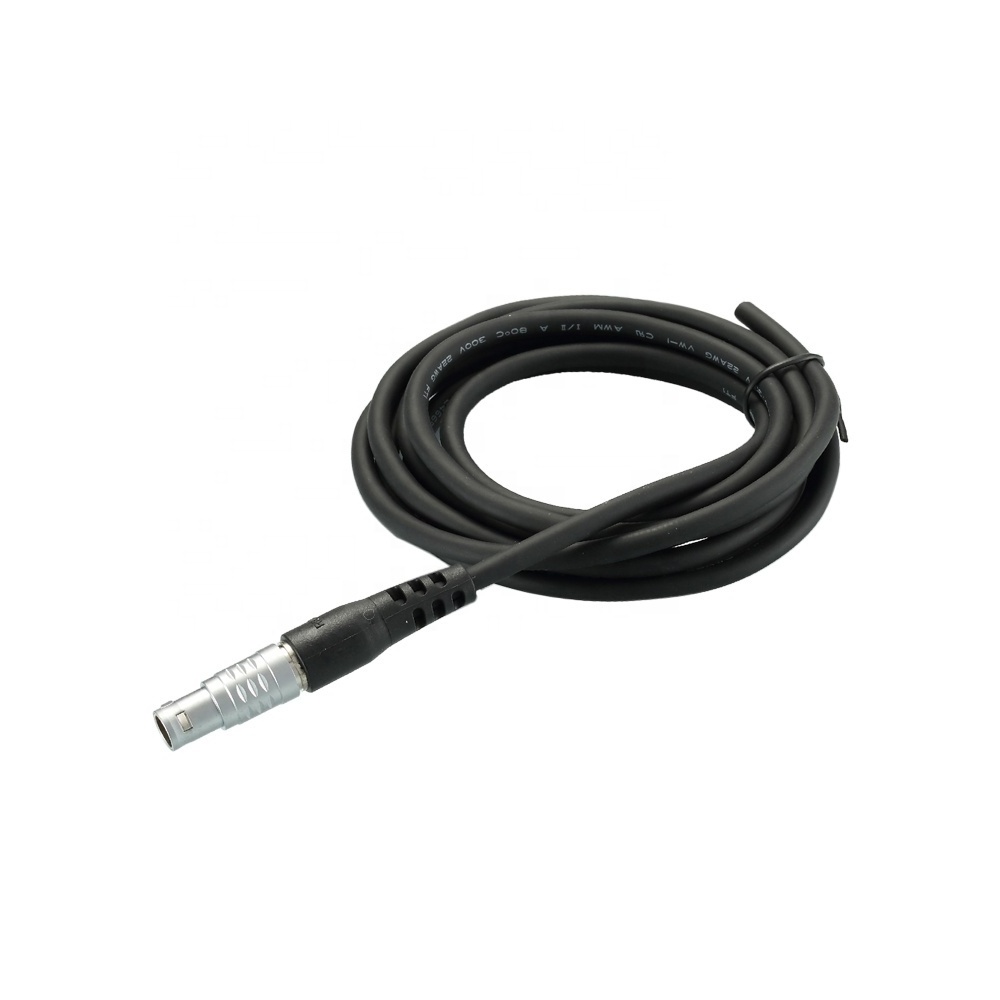

Reunion OEM customized electric connector and cable assembly

Reunion OEM customized electric connector and cable assembly

FOB Reference Price: Get Latest Price

≥10 Sets

US $11.5

≥100 Sets

US $9.9

≥500 Sets

US $9.3

≥1000 Sets

US $8.8

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: Reunion

Model Number:: PGG.1B306.CPAC.52B

Color:: Sliver

Keywords:: medical connector

Item name:: Quick Release Connectors

Material:: Brass chrome plated

Contact Material:: Copper gold-plated

Connector type:: Male Terminals

Model No:: PGG.1B306.CPAC.52B

Pin:: 6pin

Function:: Connected

Mating cycle:: 5000times Mating

Warranty:: 12 Months

Quick Details

Type:: ADAPTER

Application:: medical

Gender:: Male

Place of Origin:: Guangdong, China

Brand Name:: Reunion

Model Number:: PGG.1B306.CPAC.52B

Color:: Sliver

Keywords:: medical connector

Item name:: Quick Release Connectors

Material:: Brass chrome plated

Contact Material:: Copper gold-plated

Connector type:: Male Terminals

Model No:: PGG.1B306.CPAC.52B

Pin:: 6pin

Function:: Connected

Mating cycle:: 5000times Mating

Warranty:: 12 Months

Reunion OEM customized electric connector and cable assemblys

Push and pull self-locking system is known for simple and quick plug . It can effectively resist vibration and shock , and can prevent the disconnection caused by pulling the cable. It is absolutely safe and reliable to use, which facilitates the insertion and removal in a very limited space .

B series Metal Connectors Parameter:

Model NO:	PGG.1B306.CPAC.52B
Color:	Silver
Material:	Brass chrome plated
Coupling:	Push-Pull
Termination:	Solder
Pin number:	6 pins
Surface treatment:	Nickel Plating

Mechanical properties and environmental factors:

Mating cycles:	5000 times pull and push
Humidity:	At tempetature 60 °, the max humidity of up to 95%
Temperature range:	-45 ° - +125 °
Vibration:	10-20000Hz,15g
Mechanical shock:	100g.6ms
Smoke corrosion:	>48h
Protection class:	IP50
Product Certificat:	UL

Main features:

1: Fast Push-pull self-latching system

2: Multi-core type 2-32 core, high-density installation to save space

3:Solder,crimp,and PCB-type connector pins, Straight,90-degree angle

4:Omini-directional shielding effect, anti-electromagnetic interference

5:Shell made of copper alloy ,stainless steel is used in special occasions,plated with Nickel or Chrome

6: Insulator molded with engineering plastic which is high-temperature endurable and good insulating

7: A variety of status pins to avoid intermixing between similar connectors

8: Welding,pressing and printing plate type connector pin core

9:Different kinds of keying options to avoid mismatching

10:Pin and jack made of copper alloy ,plated with gold

Picture:

Application:

About manufacturer:

Reunion is a professional manufacturer of electronic connectors .
Our products are suitable for medical, military, industrial control, LED screen, navigate, test and measurement, oil and nuclear industry, tele-communications.
Since in 2011 , we have successfully provided lots of products and earned good reputation from our customers.
Our main products is electrical connector. Meanwhile, we could provide all kinds of connects as low voltage connector, plastic connector, miniature connector, inserts series B K S F P M N, high pressure connector, high voltage connector, cable assemblies, accessories, other/special.
