Quick Details
-
Production Capacity:
-
120-180bags/min
-
Weight (KG):
-
500
-
Voltage:
-
220V
-
Place of Origin:
-
China
-
Brand Name:
-
GOLDSEN
-
Dimension(L*W*H):
-
4090x680x1420mm
-
Bag length:
-
65-190mm/120-280mm
-
Bag width:
-
30-180mm
-
Max packing product height:
-
80mm
-
Max roll film width:
-
450mm
-
Weight:
-
500kg
-
packing speed:
-
40-230bags/min
-
Controller:
-
PLC+Transducer
-
Machine material:
-
carbon steel and stainless steel
-
Certification:
-
CE GMP
Quick Details
-
Function:
-
Labeling, Sealing, Wrapping
-
Packaging Type:
-
Bags, Film, Foil, Pouch, Stand-up Pouch
-
Packaging Material:
-
Paper, Plastic
-
Production Capacity:
-
120-180bags/min
-
Weight (KG):
-
500
-
Voltage:
-
220V
-
Place of Origin:
-
China
-
Brand Name:
-
GOLDSEN
-
Dimension(L*W*H):
-
4090x680x1420mm
-
Bag length:
-
65-190mm/120-280mm
-
Bag width:
-
30-180mm
-
Max packing product height:
-
80mm
-
Max roll film width:
-
450mm
-
Weight:
-
500kg
-
packing speed:
-
40-230bags/min
-
Controller:
-
PLC+Transducer
-
Machine material:
-
carbon steel and stainless steel
-
Certification:
-
CE GMP
Customer Reviews
HOT SALE Products
Pillow Packaging Machine
Products Description

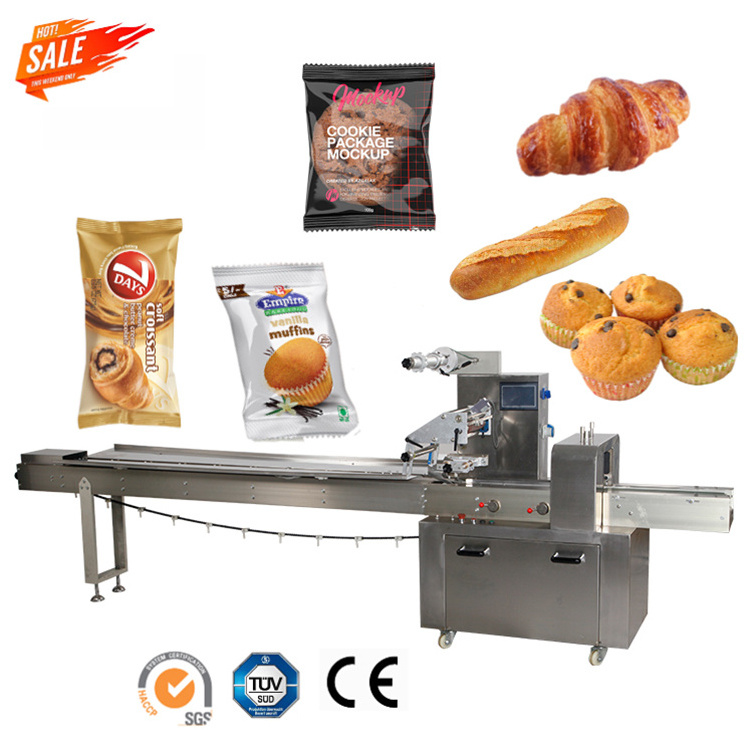

Automatic Croissant Bread Bakery Hamburger Bun Bread Packaging Machine Horizontal Flow Wrap Packing Machine
1.
Efficiency
:
The Packing Machine Integrate Bag-Making, Filling, Sealing, Cutting, Heating, Date / Lot Number Achieved In One Progress
2.Intelligent:
Packing Speed And Bag Length Can Be Set On The Touch Screen Without Changing Any Parts Of The Machine
3.Durability:
Independent Temperature Controller With Heat Balance Enables Different Packing Materials; Dual Inverters Controller,Upgradable Plc System, Self-Failure Diagnosis, Double Encoder.
4.Automation:
Automatic Stop Function, With Safe Operation And Saving The Film. One Worker Is Able To Operate It , Saving Labor Costs.
5.Convenient:
Easy To Operation And Maintenance.The Machine Can Be Moved To Any Workplace, Whether It Is A Home Or A Factory.
6.Versatility:
One Packing Machine Is Able To Pack Various Kinds Products, Like Food, Medicine, Daily Appliances,Cosmetic,Metals,Industrial Parts, Boxes, Trays, Toys. It Also Can Connect With Other Production Line Working .
7.Customizable:
The Length Of The Machine Can Be Appropriately Shortened According To Customer Requirements. The Machine Can Also Be Converted To Dual Servo Control By Variable Frequency Control.
|
Model
|
GS-250
|
GS-350
|
GS-450
|
GS-600
|
|
Packing Speed
|
30-240bags/min
|
30-210bags/min
|
30-180bags/min
|
30-150bags/min
|
|
Max Film Width
|
250mm
|
350mm
|
450mm
|
600mm
|
|
Bag Length
|
55-330mm
|
55-350mm
|
90-450mm
|
120-500mm
|
|
Bag
Width |
30-110mm
|
30-160mm
|
50-180mm
|
50-200mm
|
|
Power
|
220V 50/60HZ
2.4KW |
220V 50/60HZ 2.6KW
|
220V 50/60HZ
3.2KW |
220V 50/60HZ
3.6KW |
|
Machine Size
(L*W*H) |
3770*670*1450mm
|
4020*770*1450mm
|
4380*870*1500mm
|
4380*970*1500mm
|
Details Parts of The Main Machine
The whole feeding conveyor is made of 304# stainless steel material, strictly comply with food grade request
Language:
Standard English language，but other languages are available upon request.
PLC:
Imported PLC microcomputer with Touch screen interface ,The bag length and packing speed are adjustable, easily set on the user-interface.
#304 stainless steel bag former is for shaping the film into a bag. Bag width can be adjusted by adjusting the packaging machine mold
Film Roller & High Sensitivity Sensor：
The film can be replaced easily on the film roller
Various films adaptable: OPP/CPP,OPP/BOPP ,PET/PE.VMPET,ALU-FOIL.
The high-sensitivity Sensor reads the timing mark on printed film to make sealing and cutting and at the right place.
Back Sealing device：
It contains heating electromagnet and vertical sealing wheel. Using the optimum sealing temperature for the packaging materials ensures a firm and beautiful seal.
Durable End Sealing Cutting knife：
The Rotating horizontal cutting knife is able to stop its jaws at a precise position. This helps the cutting knife to not get sticky and conserves the roll film. The knife can be equipped with an air-exhausting device and gusset device
OPTIONAL DEVICE
Application
GOLDSEN
Horizontal Pillow Packaging Machine Widely Applied For Various Kinds Of Regular Objects Like Food, Medicine, Daily Appliances,Cosmetic,Metals, Industrial Parts, Boxes, Trays, Toys And Etc.
Application:
It is widely used for making cereal bar, rice candy ,peanut candy ,oat bar .
peanut bar.
etc.
About US
FAQ
Q1:How To Ensure The Quality Of The Machine As You Mentioned,Especially Considering That I Cannot Inspect The Goods On Site?
Quality Is Our Culture.Please Notes Above All Of Our Machine Passed CE And SGS Certificate Mean While We Will Sign Quality Assurance Contract With You.Full Refund In Case Of Bad Quality.Besides Before Machine Send To You.We Will Send Details Video And Photos For You Inspection Until You Are Satisfied,If Machine Not Comply With Your Request,We Will Also Full Refund.Also You Are Able To Ask Your Chinese Friend Or Professional Inspection Company For Inspection.
Q2:How Can I Trust You For The First Time Business?
We Are Very Pleasure To Accept Alibaba Trade Assurance Service,It Will Not Only Guarantee Your Money Safe,But Also Ensure The Machine Is Delivered On Time And The Quality Of The Machine.
Q3:How About Your After Sales Service?For Example.If The Machine Arrives We Will Not Install It Or The Machine Fails, How Do You Solve It.
Actually All Of Our Machine Get Manual Book,And We Will Provide Detailed Videos Related To Machine Installation And Machine Commissioning And Troubleshooting Of Common Machine Problems.
Q4:How Long Is The Machine Guarantee?If The Spare Parts Broken,Are You Able To Provide Them?
The Machine Guarantee Is 1Year.During The Guarantee Period All Spare Parts Except The Easy Broken Spare Parts Or The Artificial D Damage Will Be Free Replaced.And When Machine Delivery To You.The Machine Comes With Free Wearing Parts And Toolboxes Which Will Ensure No Additional Wearing Parts Are Purchased Within One Year.
Q5:Are You Engineer Available To Serve Oversea?
Yes, But The Travel Fee Is Paid By You.However As Usual Clients Prefer To Get The Details Video Related How To Install And Debug,It Will Save Your Time And Cost.
Q6:Will You Provides The Door To Door Service?
Yes.Please Provide A Detailed Shipping Address.We Will Check With Our Agent To See If It Available.
