Quick Details
-
Frequency:
-
315mhz/433mhz
-
Keyword:
-
water pump remote control switch 220V
-
Size:
-
70*50*18mm
-
Max load:
-
3000W
-
Encoded Mode:
-
Learning code
-
Working Voltage:
-
AC220V
-
Application:
-
Garage door, gate, roller shutter door, light etc
-
Output way:
-
Self-lock,interlock, inching
-
Output singal:
-
Output with switch signal/Output with voltage
-
N.W:
-
67G
Quick Details
-
Max. Current:
-
30A
-
Max. Voltage:
-
220V
-
Place of Origin:
-
Guangdong, China
-
Frequency:
-
315mhz/433mhz
-
Keyword:
-
water pump remote control switch 220V
-
Size:
-
70*50*18mm
-
Max load:
-
3000W
-
Encoded Mode:
-
Learning code
-
Working Voltage:
-
AC220V
-
Application:
-
Garage door, gate, roller shutter door, light etc
-
Output way:
-
Self-lock,interlock, inching
-
Output singal:
-
Output with switch signal/Output with voltage
-
N.W:
-
67G
Product Description

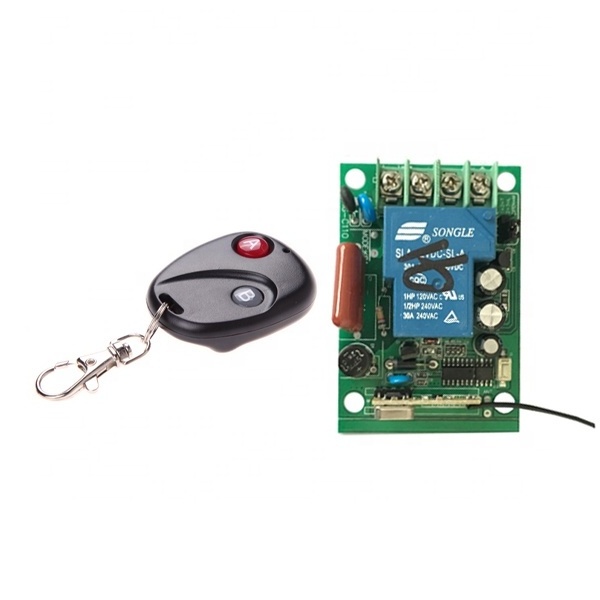

Light Water Pump Electrical Machine ON OFF 220V 30A Wireless Remote Control Switch
-
-
-
Technical Parameter
-
1. Working voltage: AC220V
2. Frequency: 433Mhz
3. Receiving sensitivity: -105db
4. Encoding type: learning code
5. Working way: self-lock, interlock, inching
6. Max load: 3000W
7. Dimensions: 70*50*18mm
8. Output signal with switch or AC220V power
Characteristics
Single route power remote control switch design and manufacture of 220V by a 30A relay, can use load power electronics; Can learn more remote control, and each remote control all buttons can learn, can be a remote control multiple switch, a switch can also be multiple remote controller, operation is simple and flexible supporting any combination; The output voltage installation is convenient.
Learning method
After controller is powered on, the light is normally on state, and then long press the learning button after 2 ~ 3 lights put out automatically, loosen the learning key, press any key, remote control lights flash 5, then restore long bright state, said learning success.Note: this controller can learn fixed code, code 16 different coding, such as remote control of any buttons, Beyond will, in turn, remove the first learning remote control.
Clear method
Continue to hold down the key learning about eight seconds indicator by out to restore long on said clear success.
Work to switch
Through the short circuit at short line 1, 2, 3, different local switch works.
A) inching-Short circuit at the vacancy.B) self-locking-Sub 1, 2. C) interlocking-Short answer 2, 3
Application
Mainly used in lamps and lanterns, electric door, window, hoisting equipment, elevator control and security industry and other fields.
Packing&Shipping
Packing
1. Each one in a plastic bag or white box
2. Carton sizeis 37*24*17CM
Shipping
We have strong cooperation with DHL,TNT,UPS,FEDEX,EMS,China Air Post.
You also can choose your own shipping forwarder.
We have strong cooperation with DHL,TNT,UPS,FEDEX,EMS,China Air Post.
You also can choose your own shipping forwarder.
