Quick Details
-
Brand Name:
-
SOSIN
-
Model Number:
-
EFT T4
-
Product name:
-
EMI EMC Test IEC 61000-4-4 EFT Transient Burst Generator
-
Application:
-
EFT burst immunity testing
-
Standard:
-
IEC/EN 61000-4-4
-
CDN:
-
Built-in, 1phase or 3phase coupler
-
Spike frequency:
-
1kHz~ 1.2MHz
-
Interface:
-
USB and RS232
-
Output Voltage:
-
0.1~ 5kV
-
Power supply:
-
220V 50Hz
-
OEM Service:
-
Yes
-
Certificate:
-
ISO9001
Quick Details
-
Warranty:
-
12 Month
-
Power:
-
Electronic
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
SOSIN
-
Model Number:
-
EFT T4
-
Product name:
-
EMI EMC Test IEC 61000-4-4 EFT Transient Burst Generator
-
Application:
-
EFT burst immunity testing
-
Standard:
-
IEC/EN 61000-4-4
-
CDN:
-
Built-in, 1phase or 3phase coupler
-
Spike frequency:
-
1kHz~ 1.2MHz
-
Interface:
-
USB and RS232
-
Output Voltage:
-
0.1~ 5kV
-
Power supply:
-
220V 50Hz
-
OEM Service:
-
Yes
-
Certificate:
-
ISO9001
emi emc test transient simulator per iec 61000-4-4
Switching the transient process (to cut off inductive load, relay contact bounce, etc) usually interferes with other electrical and electronic equipment in the same circuit. This type of interference is characterized by high amplitude, short rise time, high repetition rate and low energy. Pulse generators are used for evaluating the performance of electrical and electronic equipment power supply port, signal, control and grounding ports when subjected to electrical fast transient burst interference.

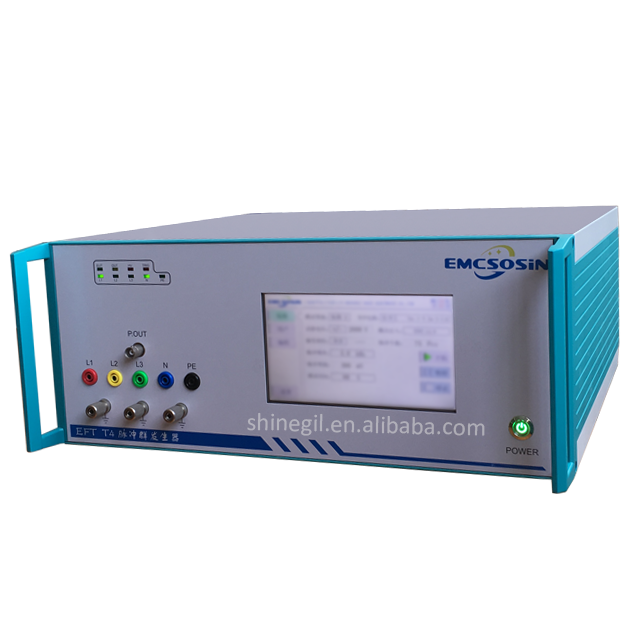

The EFT S/ T series are the state-of-the-art EFT/ Burst testers with a built-in coupling/ decoupling network for single phase or three-phase mains supply line and a HV terminal to connect a capacitive coupling clamp. Its performance fully complies with IEC 61000-4-4 standard. Kindly review the following for more details of our 3phase model EFT T4.
- Fully Compliant with latest Standards IEC/ EN 61000-4-4
- User friendly 7” Touch Panel Display
- Support multi-language & facilitate users
- Built-in environment self-test program
- Programmable operation
- Pre-programmed IEC 61000-4-4 test settings
- The highest pulse frequency is up to 1.2MHz
- RS232 interface, PC control operation & printable test report
- Comfortable use and convenient operation
|
Model |
EFT T4 |
|
Output Voltage |
0.1~ ±5KV |
|
Frequency |
1KHz~1.2MHz ±10% , continuous adjustable |
|
Pulse Polarity |
Positive/ negative/ alternating |
|
Running Time |
1~9999s, continuous adjustable |
|
Internal Resistance |
50Ω ±10% |
|
Pulse Front Edge |
5ns ±30% |
|
Pulse Width |
50ns ±30% (50Ω load), 35ns~150ns (1kΩ load) |
|
Pulse Number |
1~255, continuous adjustable |
|
Phase Angle |
0~359°synchronous, asynchronous, or automatic |
|
Burst Period |
0.15~99.99s, continuous adjustable |
|
Coupling/ Decoupling network |
Built-in, three-phase five-wire, 16A (customer specific on demand) |
|
Power Supply |
AC 220V ±10% 50/ 60Hz |
|
Ambient Temperature |
15℃~35℃ |
