Quick Details
-
Stroke:
-
145 mm
-
Pump speed:
-
65-80 r/min
-
Flow(L/min):
-
125-200 L/min
-
Pressure:
-
4-6 mpa
-
Power:
-
15 kw
-
Weight:
-
300 kg
-
After-sales Service Provided:
-
Online support
Quick Details
-
Type:
-
Horizontal double cylinder acting piston
-
Model Number:
-
BW-200/4
-
Cylinder diameter:
-
85mm
-
Stroke:
-
145 mm
-
Pump speed:
-
65-80 r/min
-
Flow(L/min):
-
125-200 L/min
-
Pressure:
-
4-6 mpa
-
Power:
-
15 kw
-
Weight:
-
300 kg
-
After-sales Service Provided:
-
Online support
Products Description

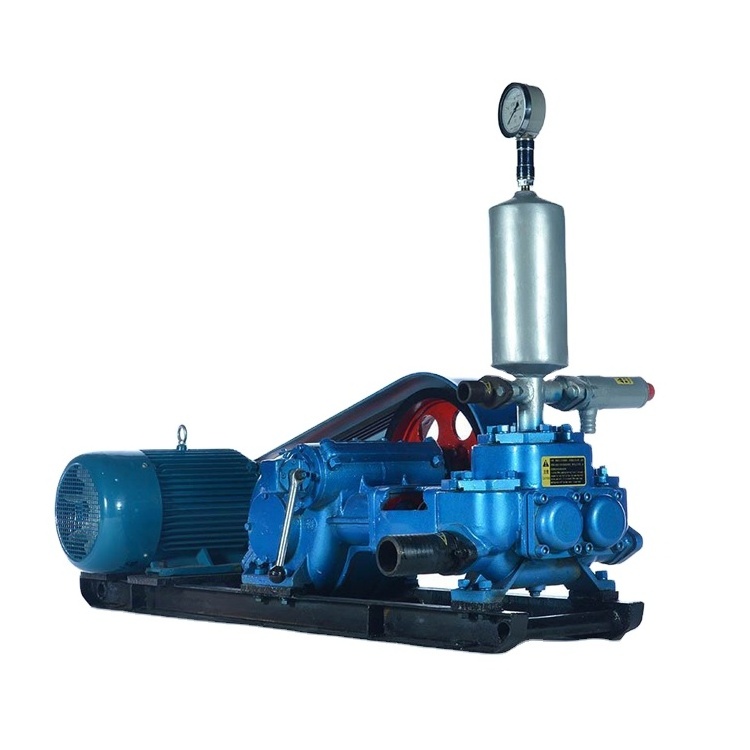

BW200/4 Horizontal double cylinder reciprocating double acting piston pump
The BW200 mud pump is a horizontal double-cylinder double-acting reciprocating plug pump, which is mainly used to supply flushing fluid to the borehole during core drilling.
The rinsing fluid can be mud or clean water. It can also be used for dam grouting, engineering grouting, etc.
In order to adapt to the general alloy and steel grain drilling, and at the same time to meet the needs of small-diameter diamond drilling, this pump can be used as a supporting equipment for drilling rigs within 1000 meters.
It can also be used in small-scale water conservancy grouting, cement grouting and other projects.
Size Information
|
Model
|
BW200/4
|
|
|
|
Type
|
Horizontal double cylinder reciprocatig double acting piston pump
|
|
|
|
Stroke（mm）
|
85
|
|
|
|
Pump speed（r/min）
|
145
|
|
|
|
Cylinder diameter（mm）
|
80
|
65
|
|
|
Flow（L/min）
|
200
|
125
|
|
|
Pressure（MPa）
|
4
|
6
|
|
|
Power（kw)
|
15
|
|
|
|
shape size（mm）
|
1050*630*820
|
|
|
|
Weight（kg）
|
300
|
|
|
