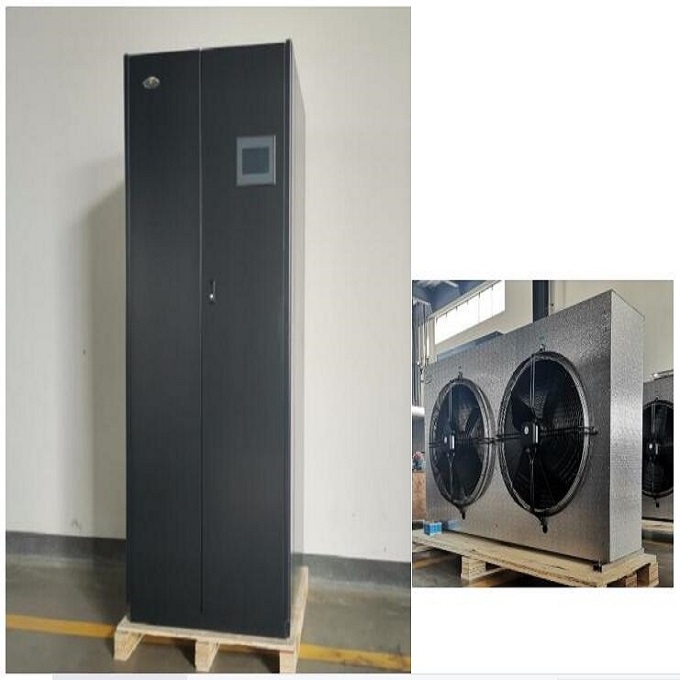

10 Ton Precision 120000 BTU precision Air Conditioner

10 Ton Precision 120000 BTU precision Air Conditioner

FOB Reference Price: Get Latest Price

≥1 Sets

US $2998

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Anhui, China

Brand Name:: HAIRF

Dimension(L*W*H):: 1760*795*1998MM

Core Components:: Controller, compressor, EC fan, display, leakage detector, copper pipe

Weight (KG):: 600 KG

style:: floor mounted

Function:: air cooling

Voltage:: 220v/1phase/50hz

Installation:: vertical / horizonal

Refrigerant:: R410A/R407C

Manufacturer:: yes

Cooling capacity:: 5.9KW~102KW

Application Area:: IT racks room

Air discharge:: donwflow/upflow/front

Air intake:: up/front

Quick Details

Type:: EVAPORATIVE AIR COOLER

Mounting:: Floor Standing

Airflow:: 8000m3/h

Place of Origin:: Anhui, China

Brand Name:: HAIRF

Dimension(L*W*H):: 1760*795*1998MM

Core Components:: Controller, compressor, EC fan, display, leakage detector, copper pipe

Weight (KG):: 600 KG

style:: floor mounted

Function:: air cooling

Voltage:: 220v/1phase/50hz

Installation:: vertical / horizonal

Refrigerant:: R410A/R407C

Manufacturer:: yes

Cooling capacity:: 5.9KW~102KW

Application Area:: IT racks room

Air discharge:: donwflow/upflow/front

Air intake:: up/front

Product Description

OEM Computer Room Split Mounting Precision Air Conditioner HAIRF manufacturer

10 Ton Precision 120000 BTU precision Air Conditioner

ADVANTAGES OF PRECISION AIR CONDITIONERS OVER COMFORT/STANDARD AIR CONDITIONERS:

Precise and quick processor-based temperature control, to keep your IT equipment at the right temperature, always.
Precise humidity control. Electronic devices require a steady level of humidity for proper functioning. Both high/low humidity levels can impede them on the long run.
Designed for 24 x 7, 365 days continuous operation. Room air conditioners are generally designed to be used for a few hours, that too during summers.
Precision air conditioners are designed to manage high levels of sensible heat (heat without humidity, emanated by machines) while comfort/standard air conditioners are designed to manage latent heat (heat with humidity, emanated by people).
Precision air conditioners demonstrate better air distribution. They have higher CFM rates that movies more air volume at higher speeds than standard AC’s. That also means that there are less airborne particles due to the AC.
Precision air conditioners can handle higher heat and AC load densities per each unit.
For larger premises, several units of precision air conditioners can coordinate with each other and automatically control (increase/decrease) individual AC loads, for efficient cooling.
Precision air conditioners can deploy new features or enhance existing ones as their software/firmware is regularly updated.
Precision air conditioners have better, faster support facilities/contracts, as vendors specialized for them understand the critical nature of IT support and maintenance.
It is also possible to remotely monitor/troubleshoot precision air conditioners, for quick problem resolution.
If you still want to use comfort/standard AC’s for your IT/network rooms, be sure to get a good insurance policy.

50kw precision air heating and cooling unit 380v/3phase/50hz PAC used in server room

Model : HADR/HAUR		0201	0251	0261	0271	0301	0351	0401	1022
Cooling capaciy(1)	kw	21.2	23.2	26.8	27.3	31.5	35.6	41.2	102
Air flow	m³/h	6530	7050	7280	8500	9000	10000	11000	24200
EER		3.72	3.6	3.6	3.75	3.71	3.71	3.71	3.68
SHR		0.98	0.98	0.92	0.98	0.99	0.98	0.97	0.95
Compressor
Type		Scroll
Capacily	kw	5.2	5.5	5.9	6.2	7.4	8.3	9.3	22.4
Quantity	nr	1	1	1	1	1	1	1	2
I F hned coil evaporator
Frontal surface	m2	0.8	0.8	0.8	1.4	1.4	1.4	1.7	2.8
Geometry	mm	25X21.65
Type of fins		Hydrophilic
Fin pich	mm	1.8
Fan section
Type		Centrigugal fan
Quantity	nr	1	1	1	1	1	1	2	3
Absorbed curent	A	2.5	2.5	2.8	3.2	3.5	4.1	4.4	16.5
Absorbed power	W	1050	1100	1200	1300	1320	2000	2150	6300
AESP Max Speed(2)	Pe	360	360	360	380	380	355	355	400
Air flter
Eficiency		EU4
Overall surface	m2	5.8	5.8	5.8	6.5	6.5	6.5	7.8	13.5
Fire resistance dass
I Electrical heaters
Total heating capacity	kw	5	5	5	5	5	8	8	24
Quanlily	nr	2	2	2	2	2	2	2	4
Material		PTC
Humidifier
Capacily	Kg/h	8-13	8-13	8-13	8-13	8-13	8-13	8-13	8-13
Absorbed power	kw	6	6	6	6	6	6	6	6
Dimension&Weight
Height	mm	1998	1998	1998	1998	1998	1998	1998	1998
Length	mm	1000	1000	1000	1000	1000	1000	1750	2500
Depth	mm	795	795	795	795	795	795	795	795
Weight	kg	375	385	393	450	490	590	595	1015
Sound level
Sound pressure level(3)	db(A)	52	53	53	55	56.5	58	60	66

Product Description

HAIRF H series Precision Air Conditioner

Cooling Capacity Range: 5.9KW-102KW

Product Introduction

H series constant temperature and humidity precision air conditioner is with modular design, high EER, large screen human-computer interface and intelligent control system. It has options of air-cooled, water-cooled, chilled water and double source cooled.

Application:

IDC, Computer room

Network equipment room, Server room, communication equipment room

Monitoring room, Power distribution room and battery room

High precision lab, Test room, Inspection room, Measuring room

Industrial control room, High precision workshop

Archive, Storage room, Museum, Wine cellar

Technical Features:

High reliability

Providing Constant temperature & humidity, Cleanliness environment to ensure the main equipment run in good condition.

All-day running design can guarantee the main equipment safe operation.

All parts had passed severe test and confirmed stable and reliable before delivery.
