Quick Details
-
Brand Name:
-
WIDY
-
Model Number:
-
FLEX-IS-1WC
-
Input Voltage(V):
-
AC85-265V/10-30V
-
Lamp Luminous Flux(lm):
-
80-100
-
CRI (Ra>):
-
80
-
Working Lifetime(Hour):
-
50000
-
Working Temperature(℃):
-
-20 - 40
-
LED Light Source:
-
1 pcs power led
-
VIEWING ANGLE::
-
60 degree
-
COLOR OF LED::
-
warm white,neutral white,cool white
-
CAP::
-
aluminium heat sink cap,diameter 25mm
-
PIPE SIZE::
-
40cm,Diameter 8mm
-
BASE::
-
aluminium round base 60*30mm
-
SWITCH::
-
white on/off button switin on base
-
BODY COLOR::
-
black/white
-
CONNECT:
-
outside white driver box hide under base
-
WARRANTIES::
-
2 years
Quick Details
-
Lamp Power(W):
-
1
-
Lamp Body Material:
-
Aluminum Alloy
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
WIDY
-
Model Number:
-
FLEX-IS-1WC
-
Input Voltage(V):
-
AC85-265V/10-30V
-
Lamp Luminous Flux(lm):
-
80-100
-
CRI (Ra>):
-
80
-
Working Lifetime(Hour):
-
50000
-
Working Temperature(℃):
-
-20 - 40
-
LED Light Source:
-
1 pcs power led
-
VIEWING ANGLE::
-
60 degree
-
COLOR OF LED::
-
warm white,neutral white,cool white
-
CAP::
-
aluminium heat sink cap,diameter 25mm
-
PIPE SIZE::
-
40cm,Diameter 8mm
-
BASE::
-
aluminium round base 60*30mm
-
SWITCH::
-
white on/off button switin on base
-
BODY COLOR::
-
black/white
-
CONNECT:
-
outside white driver box hide under base
-
WARRANTIES::
-
2 years

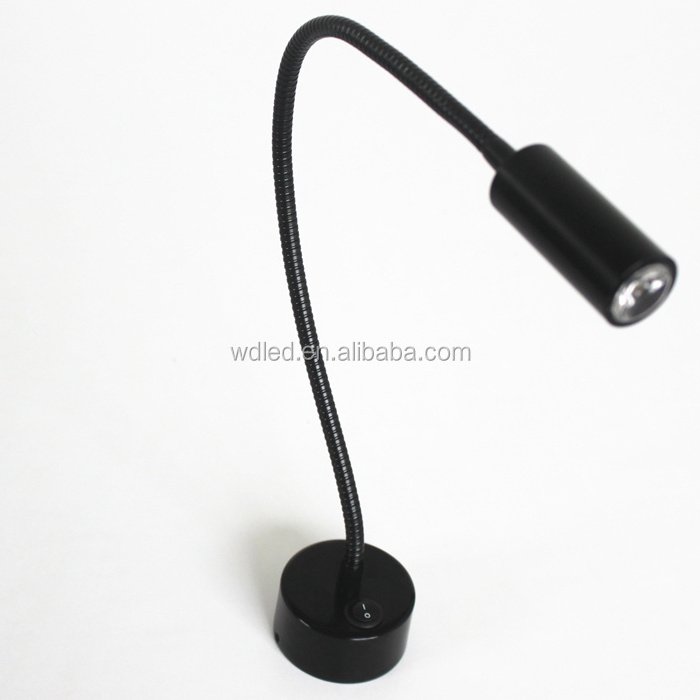

1W 3W 110V 220V WHITE/BLACK HOUSING FLEXIBLE TUBE BED READING LIGHT
wall mounted flexible tube led spotlight
swing arm Beside reading lamp
hotel goose neck wall light
adjustable headboard light
PICTURE:
SIZE:
High power led wall light Features
1.
Product is the combination of mechanics, interior design and lighting design concept ,the head can be adjustable in universal.
2.
Attractive simple elegant design and quick installation is classically demonstrated
3.
Wide application,aesthetic installation,high brightness and low energy consumption are achieved with small product size.
Precise optical design and anti-dazzle design creates the best lighting distribution and performance.
5.
Superior raw material of high quality aluminum greatly helps heat dissipation
6.
Innovative advancement in thermal management combined with unique heatsink structure together with thermal conductive pad guarantees long lumen maintenance and long lifespan
7.
No UV or infra-red radiation,no flame, heathy for human and environment
8.Low electricity consumption,energy saving, save 80% electricity,
low heat emit, touchable
9.
work at low voltage and current, safe to operate
10.long lifetime,50,000hours,2 years warranty
Specifications:
| MODEL: | FLEX-IS-1WC |
| INPUT: | AC85-265V/10-30V |
| LED: | 1 pcs power led |
| POWER: | 1W |
| LUMENS: | 80-100LM |
| VIEWING ANGLE: | 60 degree |
| COLOR OF LED: | warm white,neutral white,cool white |
| COLOR OF SHIELDS: | white/black |
| SWITCH: | white on/off button switin on base |
| BASE: | aluminium round base 60*30mm |
| PIPE SIZE: | 40cm,Diameter 8mm |
| CAP: | aluminium heat sink cap,diameter 25mm |
| CONNECT: | outside white driver box hide under base |
| WARRANTY: | 2 years |
Other Parameter
|
Operation Temperature: |
-20~ 40°C |
Fixture Surface Temperature: |
Less than 58°C |
|
Color Temperature: |
2700-6500 K (Optional) |
Color Rendering Index: |
78Ra-90Ra |
|
Power Factor: |
≥ 0.9 |
Brightness Decay: |
Less 3% at 1000 hours |
|
Luminous Efficiency: |
>60lm/W |
Protection Rate: |
IP54- IP65 |
| MODEL | POWER | COLOR OF LED | SIZE OF PIPE | BODY COLOR | INPUT VOLTAGE | PLUG |
| FLEX-I-5W | 1W | WARM WHITE | 500*11MM | CHROME | AC85-265V | NO |
You can order the lamp with above details.
A:AC85-265V US,EU,UK,AU plug
B:AC85-265V outside white driver box
C:DC12 or 24V outside black driver box
FOR EXAMPLE:
FOR T BASE:
FOR A BASE:Driver can hide under base or with plug
Package type 1: Lamps directly into Outer CTNS
Package type 2: Lamps into Inner box and into Outer CTNS(white box or color box)
1)Machine lighting: most kinds of machine lighting, equipment lighting, work table lighting,machine lathe,wood lathe,CNC machine
2)Indoor lighting: Hotel,residence,office,commercial space
3)boat,car:chart lamp
3)decorative lighting: Display case lighting and exhibition lighting
