Quick Details
-
Oiled or Non-oiled:
-
Non-oiled
-
Place of Origin:
-
Shandong, China
-
Thickness:
-
6 - 13 mm
-
Grade:
-
Q235 Steel
-
Type:
-
Welded Steel Pipe
-
Product name:
-
cast basalt composite pipe lined with cast stone tube liner
-
Liner material:
-
Cast basalt
-
Bulk Density:
-
2.8-3.1g/cm3
-
Compressive strength:
-
4500kg per sq cm(min)
-
Hardness:
-
8(MIN.)Moh Scale
-
Water Absorption:
-
0
-
Liner thickness:
-
17-25mm
-
OD of Liner tube:
-
40-800mm
-
Max.working temperature:
-
350°C
Quick Details
-
Section Shape:
-
Round
-
Surface Treatment:
-
painted
-
Tolerance:
-
±5%
-
Oiled or Non-oiled:
-
Non-oiled
-
Place of Origin:
-
Shandong, China
-
Thickness:
-
6 - 13 mm
-
Grade:
-
Q235 Steel
-
Type:
-
Welded Steel Pipe
-
Product name:
-
cast basalt composite pipe lined with cast stone tube liner
-
Liner material:
-
Cast basalt
-
Bulk Density:
-
2.8-3.1g/cm3
-
Compressive strength:
-
4500kg per sq cm(min)
-
Hardness:
-
8(MIN.)Moh Scale
-
Water Absorption:
-
0
-
Liner thickness:
-
17-25mm
-
OD of Liner tube:
-
40-800mm
-
Max.working temperature:
-
350°C

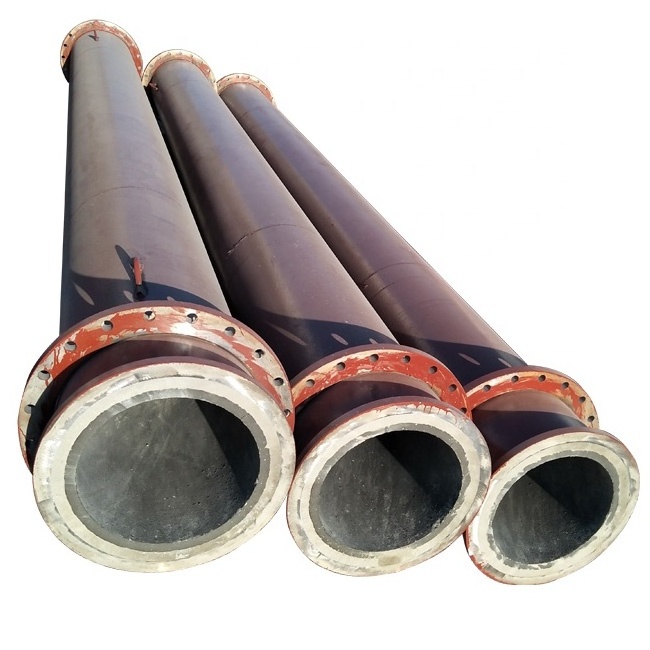

Wear protection customized cast basalt composite pipe lined with cast stone tube liner
| Item | SiO2 | Al2O3 | Fe2O3 | TiO2 | CaO |
| Value | 43.13-44.12 | 12.5-13.52 | 8.64-9.5 | 2.02-2.62 | 9.05-10.22 |
| Item | MgO | K2O | Na2O | FeO | P2O5 |
| Value | 8.64-10.45 | 1.4-1.75 | 4.62-5.28 | 4.8-6.3 | 1.1-1.4 |
|
Items |
Index |
|
Bulk Density |
3g/cm ³ |
|
Compressive Strength |
60 0MPa |
|
Bending Strength |
≥6 0MPa |
| Impact Strength | 1.76MJ/M 2 |
|
Abrasive resistance |
≥0.07 g/cm 2 |
|
Vickers Hardness |
≥720k g/mm 2 |
|
Modulus of Elasticity 20℃ |
1.67X 10 5 MPa |
|
Coefficient of Thermal Expansion |
8.92× 10 -6 m/ × m.k |
|
Corrosion resistance |
|
| 95%-98% H 2 SO 4 | ≥98% |
|
20% H 2 SO 4 |
≥94% |
|
20% NaOH |
≥98% |
Technical Datas of Steel :
Q235 steel plate for Normal Chemical Analysis (%):
|
Cr |
C |
Mn |
Si |
Other |
|
24%-30% |
4%-5% |
0.5%-2.5% |
0.5%-1.5% |
Less than 2% |
2. Wear protection customized cast basalt composite pipe lined with cast stone tube liner Brief Introduction:
Cast basalt pipes have an excellent performance of abrasive resistant and corrosion resistant, can be used as the pipeline lining in conveying wearable materials and corrosion materials.The combination of high rigidity of cast basalt ceramic and high elasticity of steel gives the pipe unmatchable features as an abrasion resistant, heat resistant and corrosion resistant material used in the variety of industries.Such as: electric power plant, chemical plant, metallurgy industry, mine and so on.
4. Advantages of wear protection customized cast basalt composite pipe lined with cast stone tube liner:
1) Good abrasion resistance
As the wear surface, the cast basalt ceramic is very slippery which is good for wear protection, and also helpful for converying and scale prevention . Cat basalt is 8 Mohs hardness, whose wear resistance is 10 times that of hi-chrome cast iron alloy pipes. It can make little wear loss of the pipe during running, which extend the service life of the equipment largely.
2) Good thermal stability and excellent corrosion resistance
-50-400 ℃ is ideal temperature for the cast basalt ceramic lined pipe, and the inner wall of the pipe is cast basalt plates or tubes which have unique chemical properties of wonderful acid and alkali resistance.
3) Good Impact resistance
Among all of the wear resistant ceramics, cast basalt has the best impact resistance.
4) Easy and fast to fix on site
Welding, flange, flexible joint are available for fix with the equipment.
All the performance of w ear resisting cast basalt tube lined steel pipe with low price for industrial wear solution makes low project costs, the charges can be about 20-30% less than wear steel piping project.
5. Normal Specification:
Full range of wear protection customized cast basalt composite pipe lined with cast stone tube liner for industrial wear solution including straight pipes, bends, elbows, tees,Y-pieces, reducers,crosses and etc can be available from our factory.
Regarding the connection ways, we can provide with the normal way of welding or flange or to customize according to the customer's requirements.
Regular size of the ceramic lined pipe:
|
Nominal Diameter |
100~800 |
Or we can supply design according to customer's requirements. |
|
Thickness of Wear-resistant Liner(mm) |
17.5~30 |
|
|
Thickness of Steel pipe |
4~10 |
Remark: Contact us for more sizes.
