Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
SAGA
-
Voltage:
-
380V/50HZ
-
Dimension(L*W*H):
-
2300*800*2200mm
-
Warranty:
-
1 year
-
Weight:
-
8.2T
-
Power:
-
30KW
-
Certification:
-
Patent
-
Machine Name:
-
SAGA Machinery HF Bent Wood Press Machine Sales 30KW
-
Working principle:
-
High frequency heating(Radio frequency)
-
Output Power:
-
30 KW
-
Max. Opening Height of Plate:
-
1200mm
-
Frequency:
-
6.78 KHz
-
Press Plate Size:
-
800*1600mm
-
Pressure Direction:
-
Three (3) Directions
-
Vertical Pressure:
-
80T (40T x 2 PCS)
-
Horizontal Pressure:
-
60T (30T x 2 PCS)
-
Mold Type:
-
Wooden or MDF
Quick Details
-
Model Number:
-
YX803-SA
-
Application:
-
Plywood or Solid wood Bending
-
Pressure:
-
80T + 30T + 30T
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
SAGA
-
Voltage:
-
380V/50HZ
-
Dimension(L*W*H):
-
2300*800*2200mm
-
Warranty:
-
1 year
-
Weight:
-
8.2T
-
Power:
-
30KW
-
Certification:
-
Patent
-
Machine Name:
-
SAGA Machinery HF Bent Wood Press Machine Sales 30KW
-
Working principle:
-
High frequency heating(Radio frequency)
-
Output Power:
-
30 KW
-
Max. Opening Height of Plate:
-
1200mm
-
Frequency:
-
6.78 KHz
-
Press Plate Size:
-
800*1600mm
-
Pressure Direction:
-
Three (3) Directions
-
Vertical Pressure:
-
80T (40T x 2 PCS)
-
Horizontal Pressure:
-
60T (30T x 2 PCS)
-
Mold Type:
-
Wooden or MDF
SAGA Machinery HF Bent Wood Press Machine Sales 30KW
Technical Parameters
|
Model No. |
YX803-SA |
|
|
HF Generator |
30KW, 2 Outputs |
|
|
Press Machine |
One 3-direction’s + One single-direction’s |
|
|
Hydraulic Cylinder |
Vertical |
80T (40T x 2 PCS) |
|
Horizontal |
60T (30T x 2 PCS) |
|
|
Power of Hydraulic |
7.5KW |
|
|
Press Plate Dimension |
1600x800 mm |
|
|
Stroke of Cylinder |
600 mm |
|
|
Control Type |
Automatic |
|
|
Max. Opening Height of Plate |
1200 mm |
|
|
Overall Dimension |
2300x800x2200 mm |
|
|
Gross Weight |
8.2T |
|
Product Description
RF Plywood Office Chair Bending Press Machine YX80-SA applies high frequency generator to hydraulic press, by mould and electrode. It transfers the high frequency power to the work piece to achieve fast gluing and forming. Fit for curving plywood or solid wood for chair, skateboard, furniture, bed, cloth hanger, body of wooden musical instrument, etc.
Features:
1. Fast and uniform heating;
2. The bending shape is stabl e;
3. High frequency is a selectively heating power, it concentrates only on water or glue, wood does not consume High Frequency power, so HF heating is effective and power -saving.
4. Use Wooden or MDF mould, much more economic than metal mould if shape is frequently changed.

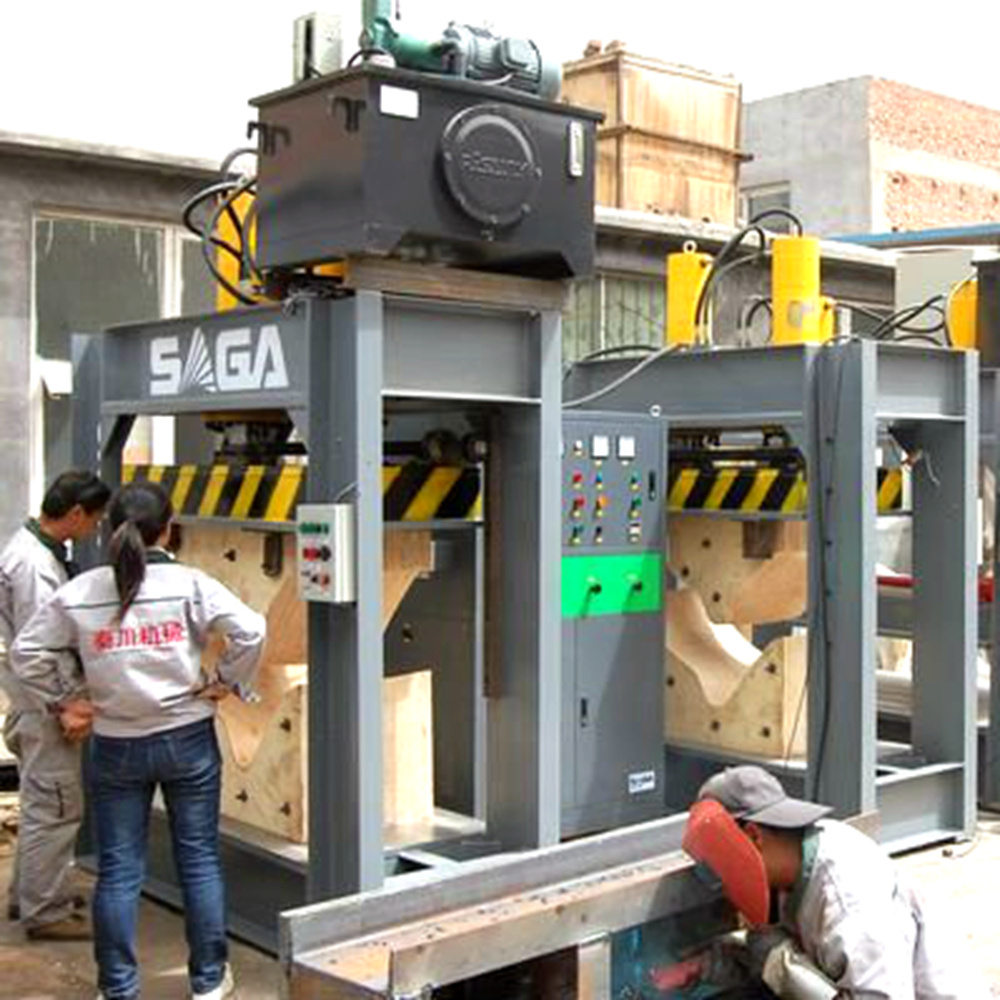

Detailed Pics
After-sale Service
1. Engineers install and train the operators overseas.
2. One year guarantee for whole machine except high frequency tube;
3. Calling or door-to-door service when having a problem in use.
About Saga Machinery
Shijiazhuang Saga Machinery Co., Ltd. specializes in developing, designing and producing smart series high frequency woodworking machinery. Our products cover high frequency vacuum wood dryer, edge gluing machine, wood curving machine, wood frame assembly machine and high frequency generator, etc.
Saga’s senior engineers, production manager, sale group and persons for after-sale service have more-than-15-year professional experience in high frequency machine industry. The energetic and passionate staff and the highly-efficient and innovative team of Saga are hoping to cooperate with you.
Contact
Welcome to contact me (by email) for more details.
