Quick Details
-
Grounding wire:
-
6AWG, 0.6m or customize
-
Size:
-
1/4",3/8", 1/2", 7/8", 1-1/4", 1-5/8"
-
Sample:
-
Avaliable
-
Inner contact material:
-
Copper
-
Touch resistance:
-
≤0.02 mΩ
-
Insulation Resistance:
-
≥ 500MΩ
-
Resists Trike Electricity:
-
≥70 KA
-
Name:
-
Framework grounding kit
Quick Details
-
Brand Name:
-
DEACHO
-
Model Number:
-
DGK-FW*
-
Place of Origin:
-
Fujian, China
-
Grounding wire:
-
6AWG, 0.6m or customize
-
Size:
-
1/4",3/8", 1/2", 7/8", 1-1/4", 1-5/8"
-
Sample:
-
Avaliable
-
Inner contact material:
-
Copper
-
Touch resistance:
-
≤0.02 mΩ
-
Insulation Resistance:
-
≥ 500MΩ
-
Resists Trike Electricity:
-
≥70 KA
-
Name:
-
Framework grounding kit
Earthing kit, high speed framework grounding kits for 3/8" 1/2" 7/8" 1-1/4" 1-5/8" corrugated cable
Description.

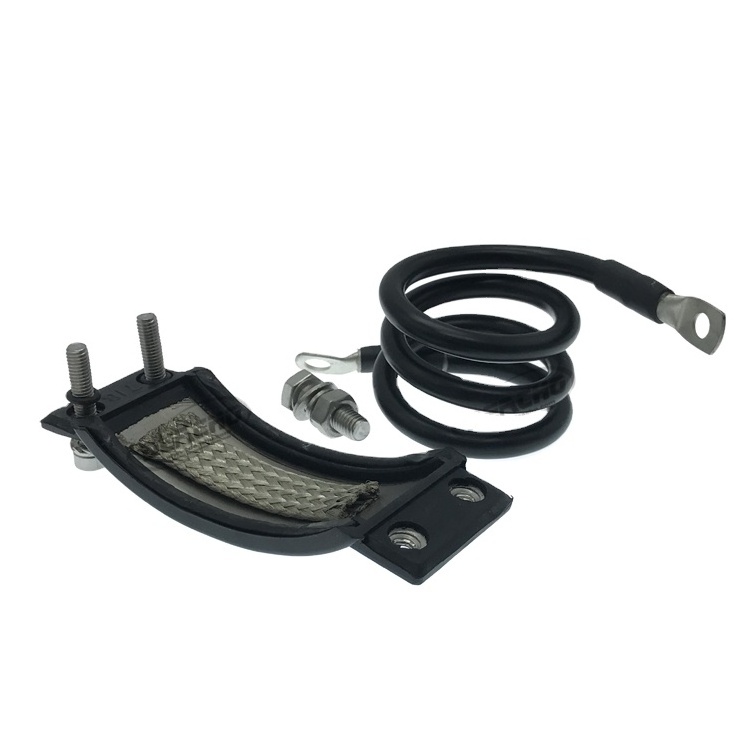

Framework type grounding kit is compact design for outdoor coaxial cables's (corrugated or braid) grounding, with tinned copper strip & butyl seal. The tin plated copper mesh provides a secure, low resistance contact to the cable outer conductor. The installation only takes a few minutes, no additional sealing with mastic and electrical tape required. Framework type grounding kit offers quick installation, good waterproofing & cost efficiency.
Feature.
◆ Grounding clamp: 304 stainless steel + EPDM rubber plated to ensure waterproofing.
◆ Seal strip: each side has seal strip to ensure water proofing.
◆ Grounding / earthing cable: 6AWG BVR copper wire.
◆ Copper lugs: one or two hole, M8 or 3/8"
◆ Installation accessories: bolt kit
Selection Table.
