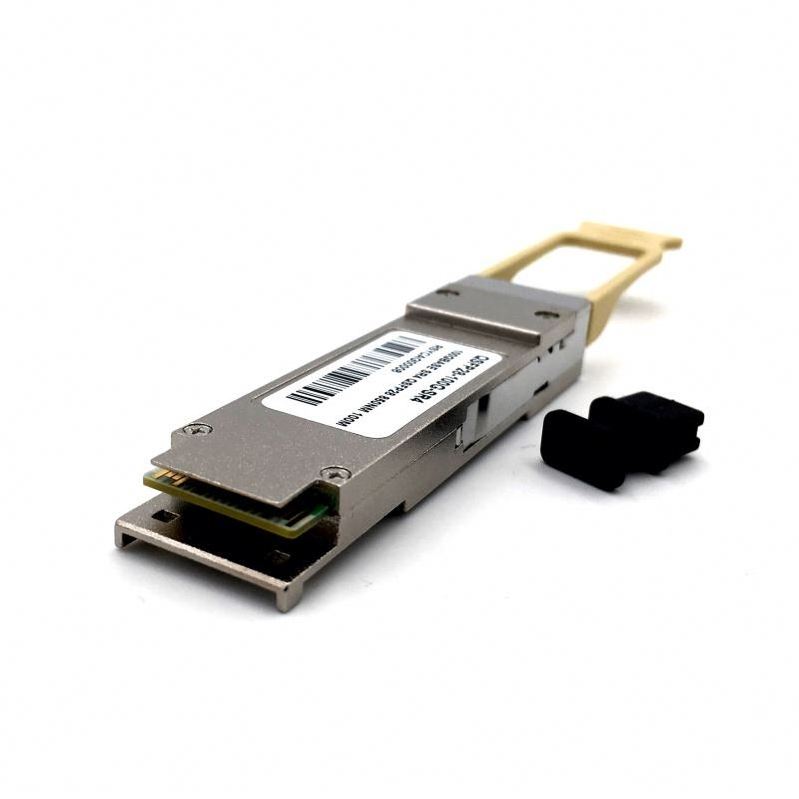

The WL-M40S85-C00 is a Four-Channel, Pluggable, Parallel, Fiber-Optic QSFP+ Transceiver for InfiniBand QDR/DDR/SDR,12G/10G/8G/4G/2G fiber channel,
PCIe and SAS Applications.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
WolonFiber
-
Use:
-
fttx, FTTX
-
Warranty Time:
-
1yeas
-
Product name:
-
40GBASE-SR4-2KM QSFP28
-
Transmission data rate:
-
40G
-
Connector:
-
MPO
-
Operating case temperature:
-
0 ~ 70℃
-
power supply voltage:
-
3.3V
-
Application:
-
100G Ethernet, Data center
-
Feature:
-
Four-channel full-duplex transceiver modules
-
Warranty:
-
3 Years
-
Transmission Distance:
-
100m
Quick Details
-
Type:
-
Fiber Optic Transceivers
-
Model Number:
-
WL-M40S85-COO
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
WolonFiber
-
Use:
-
fttx, FTTX
-
Warranty Time:
-
1yeas
-
Product name:
-
40GBASE-SR4-2KM QSFP28
-
Transmission data rate:
-
40G
-
Connector:
-
MPO
-
Operating case temperature:
-
0 ~ 70℃
-
power supply voltage:
-
3.3V
-
Application:
-
100G Ethernet, Data center
-
Feature:
-
Four-channel full-duplex transceiver modules
-
Warranty:
-
3 Years
-
Transmission Distance:
-
100m
Product Discription
WL-M40S85-C00 SR4 850nm 40g QSFP+ 100m
These modules are designed to operate over multimode fiber systems using 850nmVCSEL laser array. An optical fiber ribbon cable with an MPO/MTP connector can be plugged into the QSFP module receptacle.
.QSFP+ SR4 is one kind of parallel transceiver which provides increased port density and total system cost savings.
The QSFP full-duplex optical module offers 4 independent transmit and receive channels, each capable of 11.3Gbps operation for an aggregate data rate of 45.2Gbps 100m using OM3 fiber.
Specification
Product Features
Four-channel full-duplex transceiver modules
Transmission data rate up to 26Gbit/s per channel
Up to 2km transmission of single mode fiber
Low power consumption <3.5W
Operating case temperature 0℃ to 70℃
3.3V power supply voltage
RoHS 6 compliant
Hot Pluggable QSFP28 form factor
Single MPO connector receptacle
Built-in digital diagnostic function
|
Applications:100G Ethernet
|
|
Proprietary High Speed
|
|
Interconnections
|
|
Data center
|
