Quick Details
-
Use:
-
Warehouse Rack
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Haili
-
Model Number:
-
PT21-1055
-
Depth:
-
2000-100000mm as per request
-
Weight Capacity:
-
100-1000kgs per square meter
-
Width:
-
2000-100000mm as per request
-
Height:
-
2000-12000mm as per request
-
Surface treatment:
-
Lead free epoxy electrostatic powder
-
Pitch holes:
-
Every 50mm from bottom to top of uprights
-
Included small accessories:
-
Base plates, diagonal/horizontal bracings, bolts and nuts, safety pins
-
Classification:
-
CE Certification Rack
-
HS Code:
-
73089000
-
Colors:
-
Blue & Safety Orange or customized
-
Solution drawings:
-
We provide with free Autocad solution
-
Materials:
-
High quality steel Q235B
-
Item name:
-
Steel mezzanine floors
-
Certification:
-
ISO9001:2008
Quick Details
-
Type:
-
Multi-Level
-
Material:
-
Steel
-
Feature:
-
Corrosion Protection
-
Use:
-
Warehouse Rack
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Haili
-
Model Number:
-
PT21-1055
-
Depth:
-
2000-100000mm as per request
-
Weight Capacity:
-
100-1000kgs per square meter
-
Width:
-
2000-100000mm as per request
-
Height:
-
2000-12000mm as per request
-
Surface treatment:
-
Lead free epoxy electrostatic powder
-
Pitch holes:
-
Every 50mm from bottom to top of uprights
-
Included small accessories:
-
Base plates, diagonal/horizontal bracings, bolts and nuts, safety pins
-
Classification:
-
CE Certification Rack
-
HS Code:
-
73089000
-
Colors:
-
Blue & Safety Orange or customized
-
Solution drawings:
-
We provide with free Autocad solution
-
Materials:
-
High quality steel Q235B
-
Item name:
-
Steel mezzanine floors
-
Certification:
-
ISO9001:2008
Strong Load Capacity Durable Steel Structure Platform Pallet Rack Supported Mezzanine Floor Platform

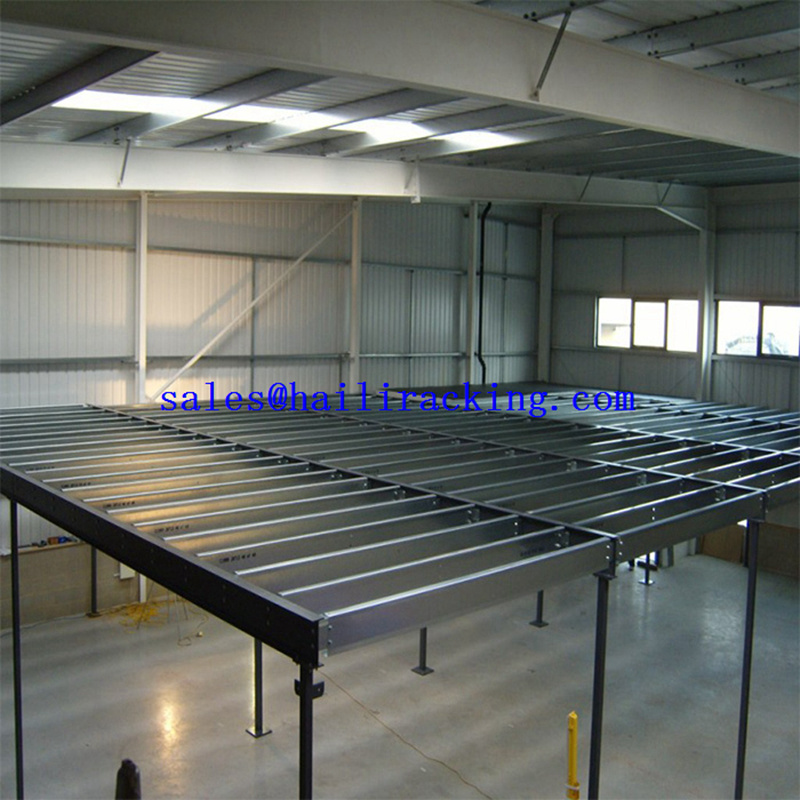

Strong Load Capacity Durable Steel Structure Platform Pallet Rack Supported Mezzanine Floor Platform can create additional floors of space for a variety of different uses such storage or extra mezzanine office. It is a very quick and cost effective way to create new space without the high expenses and inconvenience of relocation.
Strong Load Capacity Durable Steel Structure Platform Pallet Rack Supported Mezzanine Floor Platform can be one-floor or multi-floors according to the requirements from customers. They can be built over existing equipment and work areas, making maximum use of warehouse height.
Strong Load Capacity Durable Steel Structure Platform Pallet Rack Supported Mezzanine Floor Platform is with uprights, main beams, sub-beams, stairs, handrails and floorings. which is totally assembly structure, pre-manufactured thus no cutting and welding are needed. Dismountable and re-usable, the dimensions and locations are easily modified. Double uprights to support the floor decking, more stable.
Stairs, hydraulic lift table and goods lift, slide, conveyer belt, are equipped, combined with forklifts, for moving goods from ground to upper floors.
Strong Load Capacity Durable Steel Structure Platform Pallet Rack Supported Mezzanine Floor Platform features:
-
One-floor or multi-floors according to the requirements from customers.
-
Create additional floors of space for storage or office, etc.
-
A very quick and cost effective way to create new space
-
Can be built over existing equipment and work areas
-
Totally assembly structure,no need cutting and welding.
-
Dismountable and re-usable, the dimensions and locations are easily modified.
-
High loading capacity, high precision, easy to be installed.
-
Walkway surface can be customized to be many types of floorings.
-
The mezzanine floor have many sizes, flooring types and can be built on top of shelving racks, pallet racks, drive in racks, cantilever racks, etc. That means the mezzanines can be customized to meet clients specific storage needs.
-
Ideal for warehouses, which need to keep a wide variety of products, convenient for stock management.
| Classification: | Strong Load Capacity Durable Steel Structure Platform Pallet Rack Supported Mezzanine Floor Platform |
| HS Code: | 73089000 |
| Use: | For storage purpose or as mezzanine office |
| Structure: | Can be assembled and dismantled easily |
| Feature: | Create new space |
| Solution: | We provide with free safety design Autocad drawings |
|
Loading Capacity:
|
Up to 1000 kgs per square meter |
| Floors: | 1~5 floors, customized |
| Floor height: | Every 50mm adjustable from bottom to top of uprights |
| Mezzanine Height: | Up to 12000mm |
| Mezzanine Depth: | 2000-100000mm |
|
Mezzanine Width
|
2000-100000mm |
| Beam Length: | Up to 4000mm |
| Welding: | Good welding by our skilled workers |
| Corrosion protection surface treatment: | Lead free epoxy electrostatic powder coating |
| Colors: | Blue, safety orange and computer grey or customized |
| Raw Steel Code: | Q235B High Grade Hot Rolled Steel |
| Material thickness: | 1.5-6.0mm |
| Main Parts: | Double upright column , beams, steel floorings or wood boards, loading gate, loading platform, stairs, handrails, base plates, bolts and nuts, etc. |
| Upright frames: | Omega Section 55*90mm/65*90mm/80*126mm |
| Beams: | 80*50, 90*50, 100*50, 110*50, 120*50, 130*50, 140*50, 160*50mm |
| Flooring types: | steel flooring or stamped steel flooring, perforated steel flooring, plywood, etc. |
| Free accessories: | Horizontal & diagonal bracings, base plates, safety locking pins, bolts & nuts and all necessary components. |
| Packing: | Knockdown packing with air bubble film package, Neutral package or according to customer's requirements |
| Loading port: | Shenzhen, China |
| Lead time: | 20 working days |
| Installation instructions: | We can send you installation instructions before shipment. |
| Warranty time: | Warranty: 3 years guarantee from the delivery date |
Primary Components of
Strong Load Capacity Durable Steel Structure Platform Pallet Rack Supported Mezzanine Floor Platform
1, Double welded uprights , including baseplates, anchor bolts.
2, Cross beam , have a solid tubular construction with pin connectors.
3, Steel floorings, steel flooring or stamped steel flooring, perforated steel flooring, plywood, etc.
4, Stairs
Optional Components
The floorings can be steel flooring, stamped steel flooring, perforated steel flooring, or plywood, etc. .
1)We have been in the storage racking industry for over 22 years.
2)Famous Rack Brand of China
3)Seismic design
4)Free samples available.
5)Small quantity orders acceptable.
6)Our excellent service
24 hours Skype on line chat available
We promise to reply your email with prices within 24 hours - sometimes even within one hour.
Our mobile +8615817718518 is always on, you can call or send messages via WhatsApp. You will get immediate responses.
7)Our great production capacity:5000 tons / month.
Standard Export Seaworthy Packing
Knockdown packing with plastic air bubble film package, save transportation cost, safe for long distance transportation.
Loading Port
Shenzhen Port of China: (or Guangzhou Port of China)
Products package & loading for exporting
1. Free Samples(short section around 300mm) within 3days;
2. CAD design as you requirment;
3. Feedback of the status of your order timely in different production process,
details information with photos;
4. 24 hours service is available;
