Quick Details
-
After-sales Service:
-
Engineers available to service machinery overseas
-
Vertical Boring Machine:
-
Cylinder Head & Engine Block Boring Machine
-
Brand:
-
TIMAC
-
Style:
-
Fashion
-
Max. boring depth:
-
400 mm
-
Spindle speed:
-
120-860 rpm
-
Feeding of the spindle:
-
14-900 mm/min
-
color:
-
Customer Choose
-
key selling point:
-
competitive price
-
Model:
-
T170A ,T200A, T250A
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
TIMAC TIMEWAY
-
Weight (KG):
-
3.8
-
After-sales Service:
-
Engineers available to service machinery overseas
-
Vertical Boring Machine:
-
Cylinder Head & Engine Block Boring Machine
-
Brand:
-
TIMAC
-
Style:
-
Fashion
-
Max. boring depth:
-
400 mm
-
Spindle speed:
-
120-860 rpm
-
Feeding of the spindle:
-
14-900 mm/min
-
color:
-
Customer Choose
-
key selling point:
-
competitive price
-
Model:
-
T170A ,T200A, T250A
Product Description

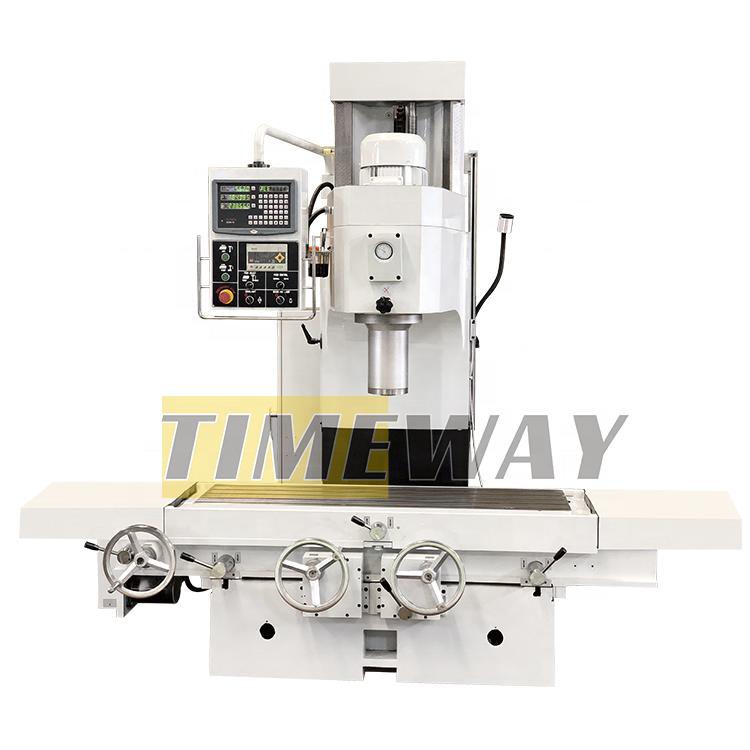

Vertical Fine Boring Machine
This serial model can be widely used in boring automobile engine cylinders, cylinder sleeves of diesel engines and compressors, as well as various high precision holes boring.
Related Machines:
Vertical Boring Machine: T170S;
Vertical Boring Milling Machine: TX170A, TX200A, TX250A;
Vertical Boring Milling Grinding Machine: TXM170A, TXM200A, TXM250A;
Specification
|
Specification
|
|
Unit
|
T170A
|
T200A
|
T250A
|
|||
|
Max. boring diameter
|
|
mm
|
Φ170
|
Φ200
|
Φ250
|
|||
|
Max. boring depth
|
|
mm
|
400
|
500
|
500
|
|||
|
Max. drilling & reaming diameter
|
|
mm
|
Φ30
|
|
|
|||
|
Spindle speed
|
|
rpm
|
120-860
|
|
|
|||
|
Feeding of the spindle
|
|
mm/min
|
14-900
|
|
|
|||
|
Rapid moving speed of the spindle
|
|
mm/min
|
1000
|
|
|
|||
|
Spindle travel
|
|
mm
|
700
|
|
|
|||
|
Distance between spindle end face and table
|
|
mm
|
0-700
|
|
|
|||
|
Distance between spindle axis and carriage vertical plane
|
|
mm
|
350
|
|
|
|||
|
Max. longitudinal travel of working table
|
|
mm
|
1500
|
|
|
|||
|
Max. cross travel of the working table
|
|
mm
|
200
|
|
|
|||
|
Working table size (W×L)
|
|
mm
|
500x1250
|
500x1500
|
|
|||
|
Quantity of “T” Slot
|
|
qty.
|
5
|
|
|
|||
|
Main motor
|
|
kw
|
3
|
|
|
|||
|
Boring holes precision
|
|
|
H7
|
|
|
|||
|
Overall dimensions (L×W×H)
|
|
mm
|
2600x1630x2300
|
|
|
|||
|
Packing dimensions (L×W×H)
|
|
mm
|
2250x1900x2270
|
|
|
|||
|
N.W./G.W.
|
|
kg
|
3300/3600
|
3500/3800
|
|
|||
Client feedback
Our Services
1. Free replacing parts available in the warranty period.
Cost price replacing parts available beyond the warranty period.
2. Quick action and reply for the technical questions at any time in the whole life of the machine.
3. Overseas after service center available in some region.
4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
