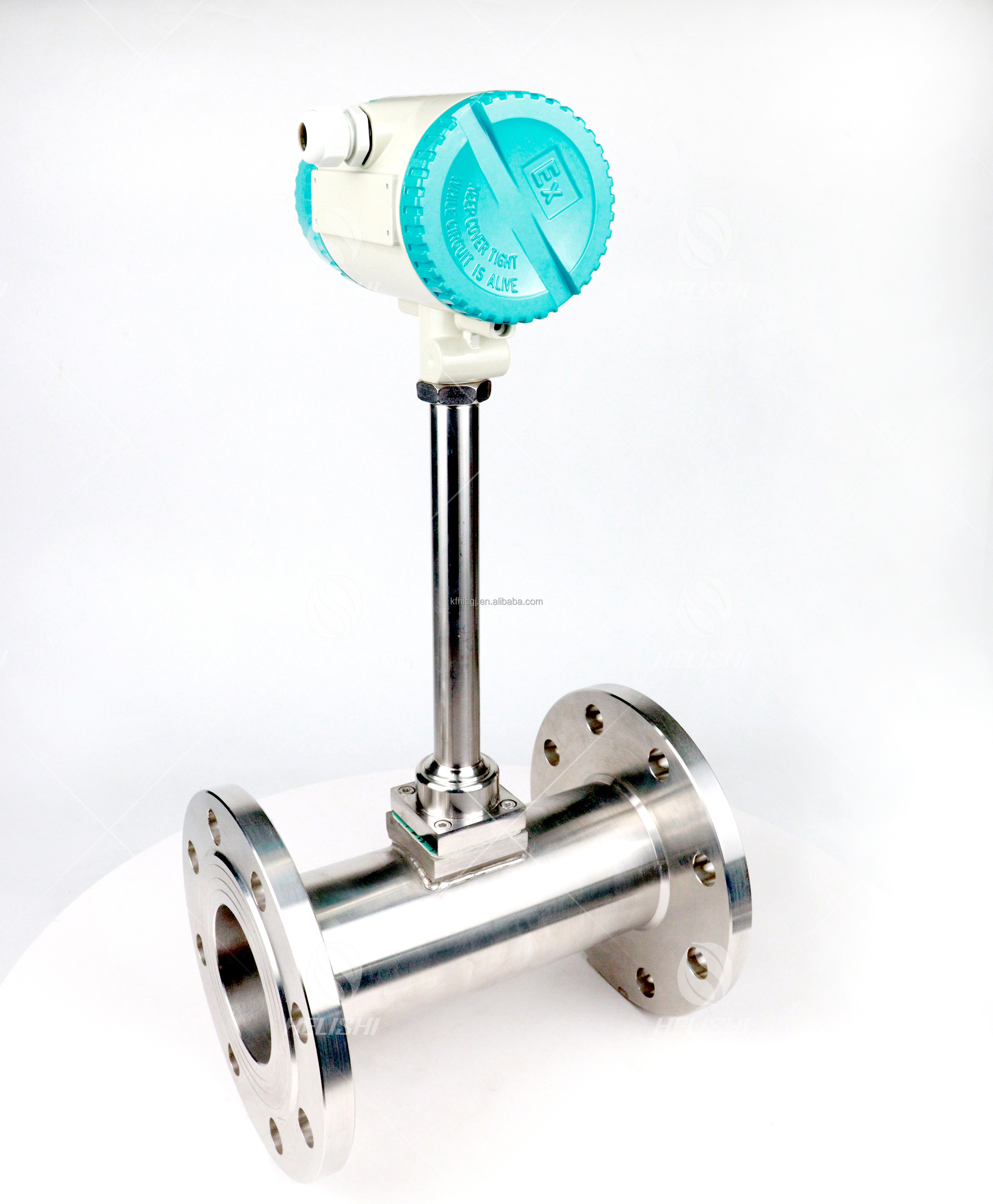

Vortex flow meter with temperature and pressure compensation and
high temperature rod, g
enerally used for high temperature steam, compressed air, etc.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
HLS
-
Model Number:
-
HLSML-LUGB
-
Medium:
-
Water Liquid All liquid gas
-
Power supply:
-
24VDC
-
Accuracy:
-
1.0% /1.5%
-
Application:
-
Measuring Fluid
-
Output:
-
4-20mA /RS485
-
Connection:
-
Flange Clamp Thread
-
Material:
-
SS304
-
Display:
-
LCD Digital
-
Protection Class:
-
IP65 IP68
Quick Details
-
Type:
-
Variable Area Water Flowmeters, Variable Area Air & Gas Flowmeters, Variable Area Petrolum Flowmeters, Variable Area Oil Flowmeters
-
Warranty:
-
12 months
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
HLS
-
Model Number:
-
HLSML-LUGB
-
Medium:
-
Water Liquid All liquid gas
-
Power supply:
-
24VDC
-
Accuracy:
-
1.0% /1.5%
-
Application:
-
Measuring Fluid
-
Output:
-
4-20mA /RS485
-
Connection:
-
Flange Clamp Thread
-
Material:
-
SS304
-
Display:
-
LCD Digital
-
Protection Class:
-
IP65 IP68
Product Description
High Temperature rs485 4-20 ma Nitrogen Compressed Air Gas Steam Flow Meter Vortex
LUGB type vortex flow meter is an important instrument for flow measurement and automatic control. It can be used for flow measurement of gas, liquid and steam. It is widely used in petroleum, chemical, metallurgy, heat, textile, paper, electric power,environmental protection and municipal construction.
It is Widely used in iron and steel, electric power, petroleum, chemical industry, coal, metallurgy,Papermaking, water supply and drainage, food, medicine and other industries.
Digital vortex steam vortex flow meter insert vortex flowmeter flow range：
|
Diameter（DN）
|
Liquid（Test medium: normal temperature water） Unit: m³/h
|
|
Gas（Test medium:：20℃ 101325Pa Air）Unit: m³/h
|
|
||
|
|
Standard Type
|
Extended Type
|
Extended Type
|
Extended Type
|
||
|
15
|
0.8~6
|
0.5~8
|
6~40
|
5~50
|
||
|
20
|
1~8
|
0.6~12
|
8~50
|
6~60
|
||
|
25
|
1.5~12
|
0.8~16
|
10~80
|
8~120
|
||
|
40
|
2.5~30
|
2~40
|
25~200
|
20~300
|
||
|
50
|
3~50
|
2.5~60
|
30~300
|
25~500
|
||
|
65
|
5~80
|
4~100
|
50~500
|
40~800
|
||
|
80
|
8~120
|
6~160
|
80~800
|
60~1200
|
||
|
100
|
12~1200
|
8~250
|
120~1200
|
100~2000
|
||
|
125
|
20~300
|
12~400
|
160~1600
|
150~3000
|
||
|
150
|
30~400
|
18~600
|
250~2500
|
200~4000
|
||
|
200
|
50~800
|
30~1200
|
400~4000
|
350~8000
|
||
|
150
|
80~1200
|
40~1600
|
600~6000
|
500~12000
|
||
|
300
|
100~1600
|
60~2500
|
1000~10000
|
600~16000
|
||
|
400
|
200!~3000
|
120~5000
|
1600~16000
|
1000~25000
|
||
|
500
|
300~5000
|
200~8000
|
2500~25000
|
1600~40000
|
||
|
600
|
500~8000
|
300~10000
|
4000~40000
|
2500~60000
|
||
|
Multi-functional non corrosive liquid flow meter turbine for sale detail images:
|
|
|
|
|
||||
|
Measure Medium
|
|
Measure Medium
|
|
|
||||
|
Diameter Nominal
|
|
DN15-DN300(DN150~DN2000 Insert type
|
|
|
||||
|
Explosion-Proof
|
|
laIICT6
|
|
|
||||
|
Nominal pressure
|
|
1.6Mpa, 2.5Mpa, 4.0Mpa
|
|
|
||||
|
Accuracy
|
|
±1%,±1.5%;Insert type:±1.5%,±2.5%
|
|
|
||||
|
Medium Temperature
|
|
－40℃～350℃
|
|
|
||||
|
Power Supply
|
|
12-24V/DC or 3.6V battery powered
|
|
|
||||
|
Signal output
|
|
Square wave pulse ( not including the battery power supply type ): high level or low level6V,1V; current: 4~ 20mA
|
|
|
||||
Flange Steam Vortex Flow Meter d
ifferent media different accessories:
Vortex flow meter
C without anything, generally used for liquids and normal gases
|
How to place an order quickly
|
|
|
|
1.
|
Measuring medium: liquid, gas, or steam
|
|
|
2.
|
Measuring pipe size: DN15,DN20,DN25,DN32,DN40 and so on
|
|
|
3.
|
Temperature: Normal temperature maxi 250 ℃, 330 ℃ needs to be customized
|
|
|
4.
|
Communication, Whether RS485, modbus communication is required
|
|
|
5.
|
Connection method: flange clamping, clamp, flange
|
|
|
Other requirements can be customized
|
|
|
