Quick Details
-
Mounting Type:
-
wiring
-
Description:
-
Photoelectric Sensor, Proximity Switch
-
Manufacturing Date Code:
-
2023
-
Model Number:
-
ET1369
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
EZONEDE
-
Theory:
-
Infrared
-
Output:
-
3-80cm
-
Product name:
-
Infrared Obstacle Avoidance Photoelectric Sensor
-
Condition:
-
100% brand new
-
Color:
-
Yellow + Black
-
Part number:
-
E18-D80NK
-
DC / SCR / Relay Control output:
-
100mA/5V supply
-
Working Voltage:
-
DC 5V
-
consumption of current:
-
DC <25mA
-
response time:
-
<2ms
-
effective distance:
-
3-80CM adjustable
-
working environment temperature:
-
-25 ° C to +55 ° C
Quick Details
-
Usage:
-
Obstacle Avoidance
-
Series:
-
proximity switch sensor
-
Features:
-
Detection Range Adjustable
-
Mounting Type:
-
wiring
-
Description:
-
Photoelectric Sensor, Proximity Switch
-
Manufacturing Date Code:
-
2023
-
Model Number:
-
ET1369
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
EZONEDE
-
Theory:
-
Infrared
-
Output:
-
3-80cm
-
Product name:
-
Infrared Obstacle Avoidance Photoelectric Sensor
-
Condition:
-
100% brand new
-
Color:
-
Yellow + Black
-
Part number:
-
E18-D80NK
-
DC / SCR / Relay Control output:
-
100mA/5V supply
-
Working Voltage:
-
DC 5V
-
consumption of current:
-
DC <25mA
-
response time:
-
<2ms
-
effective distance:
-
3-80CM adjustable
-
working environment temperature:
-
-25 ° C to +55 ° C

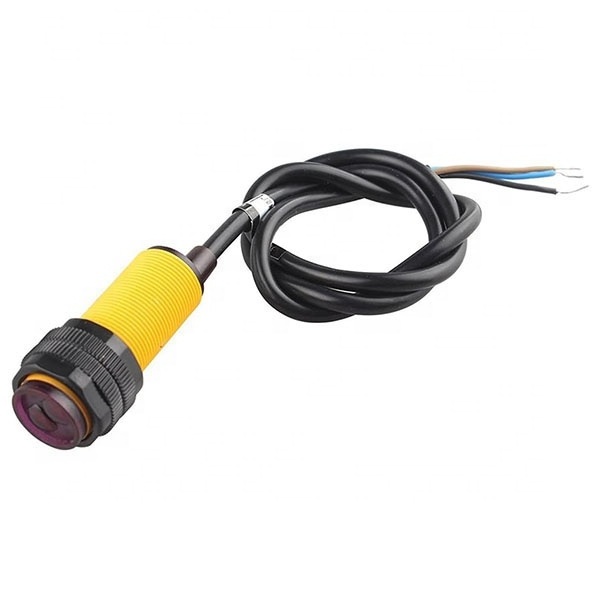

E18-D80NK Infrared Obstacle Avoidance Photoelectric Sensor Proximity Switch 3-80cm Detection Range Adjustable for Smart Car Robot
Description:
This is a set of transmitter and receiver in one of the photoelectric sensor. Detection distance can be adjusted according to the requirements. The sensor has a detection distance by visible light interference is small, cheap, easy to assemble, easy to use features, can be widely used robot obstacle avoidance, pipeline piecework and many other automation products.
Electrical Characteristics:
U: 5VDC
I: 100mA
Sn :3-80cm
Size:
Diameter: 17mm
Sensor length: 45MM
Lead Length: 45CM
Applications:
1, the production line goods automatic counting device
2, multi-functional reminder
3, Maze Robot
4, kitchen Automation system
5, security anti-theft system
Photoelectric sensor (photoelectric switch) NPN normally open
Model: E18-D80NK.
Photoelectric switch E18 Technical parameters:
1, the output current DC / SCR / Relay Control output: 100mA/5V supply
2, the consumption of current DC <25mA
3, the response time <2ms
4, point angle: ≤ 15 °, the effective distance of 3-80CM adjustable
5, object detection: transparent or opaque
6, the working environment temperature: -25 ° C to +55 ° C
7, the standard sensing object: sunlight below 10000LX incandescent 3000LX
8, Case Material: Plastic
Package Content:
1Pcs x E18-D80NK Infrared Obstacle Avoidance Photoelectric Sensor
