Quick Details
-
Row Distance(mm):
-
25 - 50 mm
-
Usage:
-
peanut harvester
-
Place of Origin:
-
China
-
Brand Name:
-
chens-lift
-
Dimension(L*W*H):
-
2200*850*800mm
-
Weight:
-
180 KG
-
product name:
-
Agricultural Machine Groundnut Harvester Combine Peanut Harvesting
-
Color:
-
Customer Requirement
-
Power:
-
More than 15Hp
-
Suitable for:
-
peanut harvesting
-
Function:
-
Harvester Crop
-
Capacity:
-
5-7mu/h
-
Dimension:
-
2000*800*800mm
-
Engine type:
-
pull-type
-
Total loss rate:
-
1%(below)
-
Working depth:
-
120-160mm
Quick Details
-
Number of Rows:
-
2
-
Working Width(mm):
-
85 mm
-
Tractor Power(HP):
-
15 - 54 HP
-
Row Distance(mm):
-
25 - 50 mm
-
Usage:
-
peanut harvester
-
Place of Origin:
-
China
-
Brand Name:
-
chens-lift
-
Dimension(L*W*H):
-
2200*850*800mm
-
Weight:
-
180 KG
-
product name:
-
Agricultural Machine Groundnut Harvester Combine Peanut Harvesting
-
Color:
-
Customer Requirement
-
Power:
-
More than 15Hp
-
Suitable for:
-
peanut harvesting
-
Function:
-
Harvester Crop
-
Capacity:
-
5-7mu/h
-
Dimension:
-
2000*800*800mm
-
Engine type:
-
pull-type
-
Total loss rate:
-
1%(below)
-
Working depth:
-
120-160mm

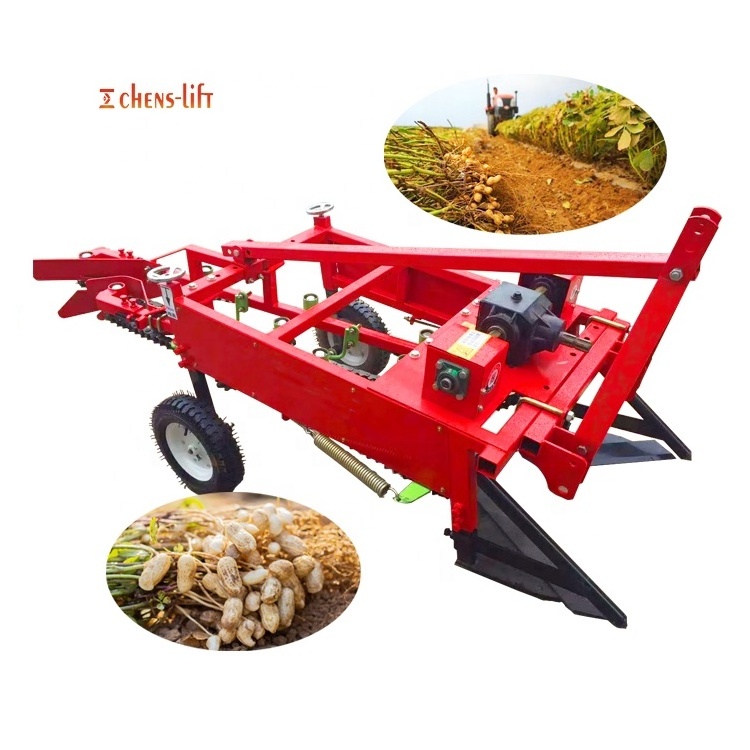

Small peanut harvester machine price in sri lanka mini tractor mounted combine groundnut harvesting picker peanut harvester
Product Description
|
Model
|
4HYS-85
|
Secondary treatment rate(%)
|
<3
|
||
|
Matching Horsepower
|
>15Hp
|
Self-weight(kg)
|
185
|
||
|
Spindle speed(r/min)
|
600-940
|
Dimension(mm)
|
2200*850*800
|
||
|
Damage rate(%)
|
<1
|
Working efficiency(mu/h)
|
5-7
|
||
|
Working width(cm)
|
75-85
|
Clearance loss rate(%)
|
<3
|
||
|
Working depth(cm)
|
0-20
|
Linkage
|
3 pointed hitch
|
||
|
Packing Dimension(cm)
|
210*85*55
|
|
|
||
Advantages:
The dig-pull combined peanut harvester is mainly composed of a Vine detaching device, a Clamp chain, a digging shovel and other components. Ensure the orderliness, neatness and smoothness of peanut raising and conveying operations.
1.Vine detaching device
Advantage:
1.1 Strong and durable, it will not bend and deform when encountering hard soil and rocks;
1.2 The sharp mouth design, the separation is complete, and the peanut seedlings are not clamped;
1.3 The installation height and angle are adjustable, and the applicability is strong. (It can be adjusted according to the terrain, soil texture, and plant status.)
1.1 Strong and durable, it will not bend and deform when encountering hard soil and rocks;
1.2 The sharp mouth design, the separation is complete, and the peanut seedlings are not clamped;
1.3 The installation height and angle are adjustable, and the applicability is strong. (It can be adjusted according to the terrain, soil texture, and plant status.)
2.Clamp chain
2.1 The design of the inclination angle of the clamping chain, the effect of raising seedlings is
good, and the soil is clean;
2.2 It adopts a large opening design, and the closing time is short;
2.3 The height of the clamping point from the ground is small, and the adaptability of harvesting low crops is better.
2.4 When the forward speed is 1m/s, the clamping chain speed is 1.2m/s, the absolute clamping speed is 0.7m/s, α2+β2=92°, the vines always keep upward, and the positive extraction operation is realized.
good, and the soil is clean;
2.2 It adopts a large opening design, and the closing time is short;
2.3 The height of the clamping point from the ground is small, and the adaptability of harvesting low crops is better.
2.4 When the forward speed is 1m/s, the clamping chain speed is 1.2m/s, the absolute clamping speed is 0.7m/s, α2+β2=92°, the vines always keep upward, and the positive extraction operation is realized.
3.Digging shovel
3.1 The digging shovel is changed from the push shear of the flat shovel to the sliding shear, which
not only reduces the digging resistance but also does not accumulate soil;
3.2 The excavation shovel can adjust the depth of the soil up and down, with strong applicability;
3.3 Strong and durable, it will not bend and deform when encountering hard soil and rocks
not only reduces the digging resistance but also does not accumulate soil;
3.2 The excavation shovel can adjust the depth of the soil up and down, with strong applicability;
3.3 Strong and durable, it will not bend and deform when encountering hard soil and rocks
