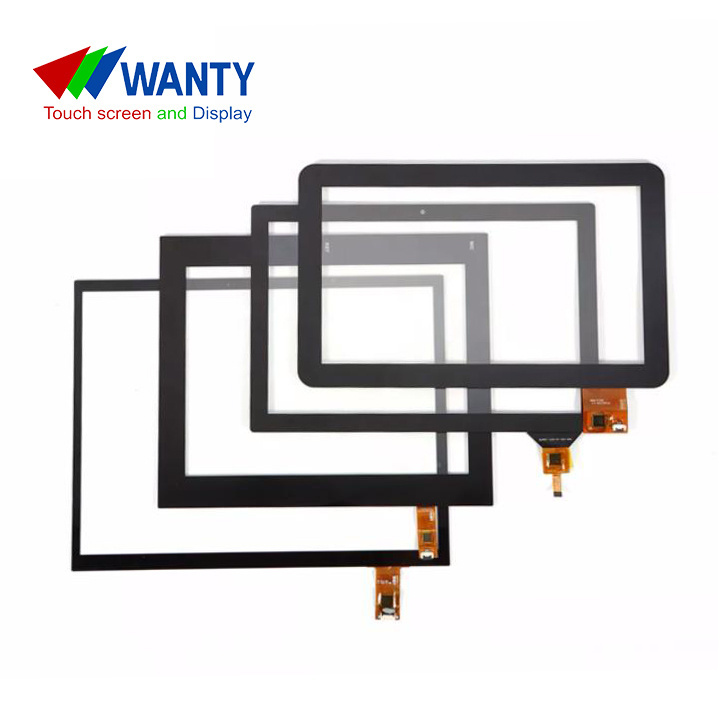

Multi Touch Custom PCAP Touchscreen 7 8.4 10.1 12.1 12.3 15 15.6 17 18.5 19 21.5 27 32 43 55 Inch Capacitive Touch Screen Panel

Multi Touch Custom PCAP Touchscreen 7 8.4 10.1 12.1 12.3 15 15.6 17 18.5 19 21.5 27 32 43 55 Inch Capacitive Touch Screen Panel

FOB Reference Price: Get Latest Price

≥2 Pieces

US $23.9

≥100 Pieces

US $18.9

≥500 Pieces

US $13.9

≥5000 Pieces

US $8.9

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Total Thickness:: 1.1mm

VA(mm):: 344.40±0.2*193.80±0.2

Power Voltage:: 5V

OD(mm):: 373.00±0.2*232.70±0.2

Transparency:: ≥82%

Driver IC:: ILI2510

Touch points:: Multi Point Touch

Touch type:: PCAP Capacitive Touch

Touch Screen:: Capactive Multi Touch Screen

Application:: ATM.POS.Open Frame Machine ...etc

Quick Details

Type:: Capacitive touch screen

Brand Name:: WANTY

Place of Origin:: Guangdong, China

Total Thickness:: 1.1mm

VA(mm):: 344.40±0.2*193.80±0.2

Power Voltage:: 5V

OD(mm):: 373.00±0.2*232.70±0.2

Transparency:: ≥82%

Driver IC:: ILI2510

Touch points:: Multi Point Touch

Touch type:: PCAP Capacitive Touch

Touch Screen:: Capactive Multi Touch Screen

Application:: ATM.POS.Open Frame Machine ...etc

Product Paramenters

【Specifications】Custom size capacitive touch panel,with Custom controller interface card. 【Advantages 】The design of touch panel makes the operation more convenient, NO button damage issue for after long time use,it support Custom points multi-touch technology allows you to swipe, scroll, select, zoom in, zoom out, and move a cursor in 3-5 ms. 【Support systems】 This touch panel can widely support Operate System. 【Convenience operation】 There are software CD and manual come with the package,Pls install the touch panel to the screen ,then install the driver as the manual ,then the touch screen can work well

Size:	Custom size
Touch Type:	Capacitive Touch Panels
LCD Type:	TFT
Touch Points:	10 Points，Accept customization
Display Type:	IPS，TN,Accept customization
Touch Structure:	G+G
Pin No.	50Pin，Accept customization
Anti-Glare/Anti-Reflection/Anti-Fingerprints:	Available，Accept customized functions
Application Fields	Industrial Control, Home Automation, Medical Device, Self-service Terminal etc

Product Description

Wanty Recommend :

Welcome please contact wanty sales to get free samples to match your industrial projects( Click “ contact suppier ”)

send inquiry now!

TFT LCD Touch Display :

Product Size: 0.91-23.8 inch
Touch Interface : USB, I2C

Display Interface: RGB, LVDS, MIPI, EDP, SPI, TTL, MCU
Bonding Method :
Air Bonding (Tape Bonding);
Optical Bonding ( OCA / Direct Bonding)

Customized Capacitive Touch Screen:

Product Size: 0.91-23.8 inch
Interface: USB, I2C

Customization Services: Touch Customization- Anti Glare, Anti Reflection, Anti Explosion, Anti Fingerprints, Anti Static, IK Anti Impact, Waterproof, Logo Printnig, Shape, Interface type, Interface position and direction, Outline Dimensions, Thickness etc

HD-MI & USB Touch Disaply:

Product Size: 3.5-15.6 inch
Structure Type: Capacitive Touch Screen & TFT LCD Display & PCB
Interface Type: HD-MI , USB
Resolution:
800*480,1024*600,1280*800,1920*1080
Touch Points: 5-10 Points
