Quick Details
-
Power:
-
14600
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SANY
-
Maximum Digging Height:
-
3665 mm
-
Maximum Digging Depth:
-
2215 mm
-
Machine Weight:
-
1820 kg
-
Max Digging Radius:
-
4000 mm
-
Rated Speed:
-
3.7/2.1 km/h
-
Warranty of core components:
-
One year or above
-
Length (During transportation):
-
3575 mm
-
Width(During transportation):
-
980/1350 mm
-
Height (During transportation):
-
2420 mm
-
Std. Track Width:
-
230 mm
-
Track Gauge:
-
750/1120 mm
-
Min. Ground Clearance:
-
180mm
-
Tail Swing Radius:
-
920 mm
-
Type:
-
mini Excavator
-
Rated Power:
-
11.2/2400 kW/rpm
-
Displacement:
-
0.993/0.854 L
Quick Details
-
Operating Weight:
-
1.82 Tons
-
Bucket capacity:
-
0.04 m3
-
Engine Brand:
-
/
-
Power:
-
14600
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SANY
-
Maximum Digging Height:
-
3665 mm
-
Maximum Digging Depth:
-
2215 mm
-
Machine Weight:
-
1820 kg
-
Max Digging Radius:
-
4000 mm
-
Rated Speed:
-
3.7/2.1 km/h
-
Warranty of core components:
-
One year or above
-
Length (During transportation):
-
3575 mm
-
Width(During transportation):
-
980/1350 mm
-
Height (During transportation):
-
2420 mm
-
Std. Track Width:
-
230 mm
-
Track Gauge:
-
750/1120 mm
-
Min. Ground Clearance:
-
180mm
-
Tail Swing Radius:
-
920 mm
-
Type:
-
mini Excavator
-
Rated Power:
-
11.2/2400 kW/rpm
-
Displacement:
-
0.993/0.854 L

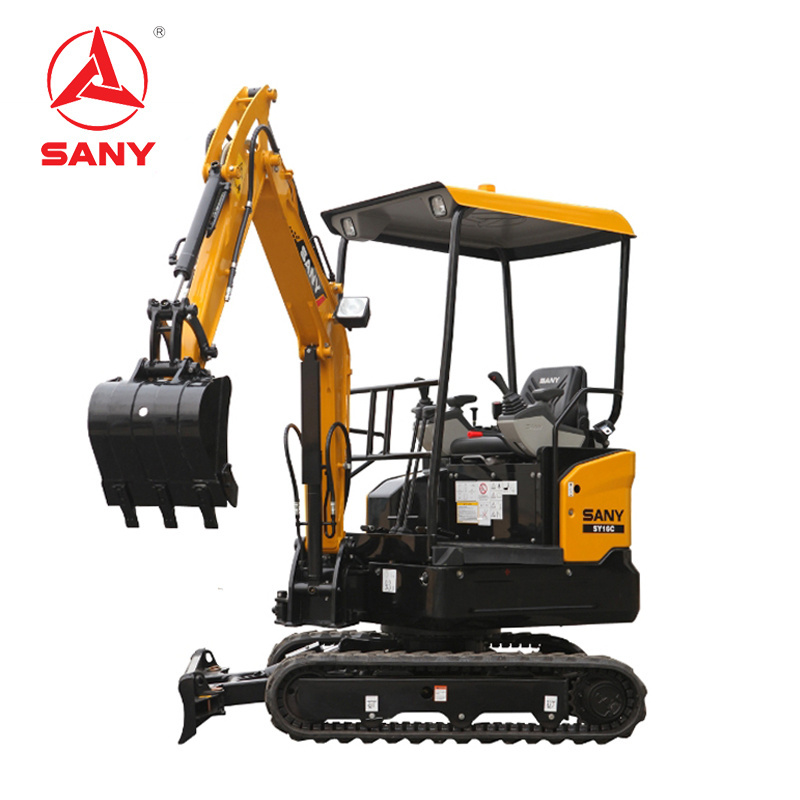

SANY SY16C 1.6 tons Eco- friendly mini bagger of Hydraulic Tunnel Excavator for Sale
Specifications
|
Technical Paraments |
|
|
Dimensions |
|
|
Overall length |
3575 mm |
|
Overall width |
980/1350 mm |
|
Overall height |
2420 mm |
|
Std. Track Width |
4325mm |
|
Track Gauge |
750/1120 mm |
|
Min. Ground Clearance |
180mm |
|
Tail Swing Radius |
920 mm |
|
Roller Gauge |
1225 mm |
|
Operation Range |
|
|
Max. Digging height |
3665 mm |
|
Max. Dumping height |
2635 mm |
|
Max. vertical Digging depth |
2215 mm |
|
Max. Digging radius |
4000 mm |
|
Min. Swing radius |
1655 mm |
|
Engine |
|
|
Model |
3TNV74F/3TNV70 |
|
Rated Power |
11.2/2400 kW/rpm |
|
Displacement |
0.993/0.854 L |
|
Specification |
|
|
Overall Weight |
1750kg |
|
Bucket Capacity |
0.04 m3 |
|
Bucket Digging force |
15.2 kN |
|
Arm Digging force |
9.2 kN |
|
Travel(high/low) |
3.7/2.1 km/h |
|
Swing Speed |
10 rpm |
|
Grade Ability |
58%/30° |
|
Ground Pressure |
29.1kpa |
|
Service Capacities |
|
|
Fuel tank |
23L |
|
Hyd tank |
21L |
|
Structure |
|
|
Boom |
1810 mm |
|
Arm |
1130 mm |
|
Bulldozing plate |
|
|
Width x height |
1350×270 mm |
|
Rise/drop |
310×320 m |
Benefits & Features
1) Higher efficiency,
2) Lower fuel consumption
3) Operation comfort,
4) With wide applications in various narrow environments such as forest, farm & indoors.
Product Show
Producing Environment
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,
3: What about the delivery time?
A: 7-20 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs
