Quick Details
-
Brand Name:
-
eOUTIL
-
Model Number:
-
DL420
-
Material:
-
Aluminum
-
Product name:
-

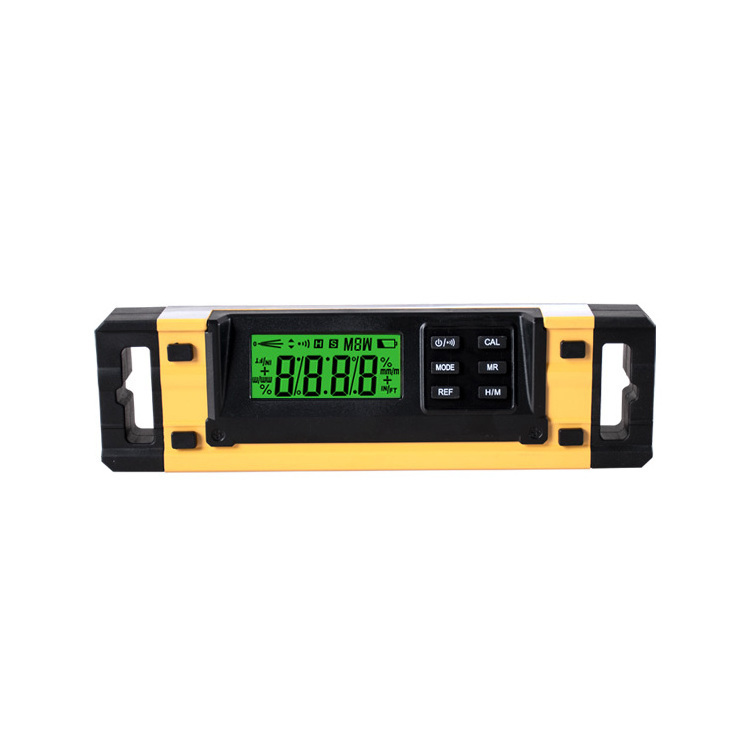

Digital Level
-
Item size:
-
220x28x64mm
-
Net weight:
-
228g
-
Screen display:
-
LCD with backlight
-
Measuring range:
-
0 to 360° (4*90°)
-
Resolution:
-
0.05°
-
Accuracy:
-
±0.1° at 0° and 90°; ±0.2° at the other angles
-
Power supply:
-
2 * AAA 1.5V batteries
-
Working temperature:
-
0~40℃
-
Usage:
-
DIY
Quick Details
-
Grade:
-
DIY
-
Warranty:
-
1 year
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
eOUTIL
-
Model Number:
-
DL420
-
Material:
-
Aluminum
-
Product name:
-
Digital Level
-
Item size:
-
220x28x64mm
-
Net weight:
-
228g
-
Screen display:
-
LCD with backlight
-
Measuring range:
-
0 to 360° (4*90°)
-
Resolution:
-
0.05°
-
Accuracy:
-
±0.1° at 0° and 90°; ±0.2° at the other angles
-
Power supply:
-
2 * AAA 1.5V batteries
-
Working temperature:
-
0~40℃
-
Usage:
-
DIY
| Item code | DL420 |
| Item size | 220x28x64mm |
| Net weight | 228g |
| Body material | Aluminum Shell+TPR |
| Packing details | Color box + instruction manual |
| MOQ | 100pcs |
| Screen display | LCD with backlight |
| Horizontal level measuring range | 0 to 360° (4*90°) |
| Resolution | 0.05° |
| Accuracy | ±0.1° at 0° and 90°; ±0.2° at the other angles |
| Measures Mode | ° degrees, % percent, mm/m, IN/FT |
| Dust & Water Resistance Standards | IP54 |
| Other Features |
- Audible tone at horizontal & vertical - Automatic shut-off after 3 minutes - Set Zero function for checking relative angles - Low battery indication - Flip display: The display rotates automatically with overhead measurements - Self calibration - Hold function to freeze the measurement - Memory recall (8 sets values) - 2 Hang holes on end caps - Working temperature: 0~40℃ |
| Operated Power | 2*1.5V AAA batteries (not included) |
| Payment Terms | T/T (30% deposit before production, 70% balance against copy of B/L) |
| Lead time | 35-40 days after receiving the deposit |
| Service | OEM/ODM available, customized service |
| Samples | Available |
