Quick Details
-
Voltage:
-
220V, Customized acceptable
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Dession Machinery
-
Dimension(L*W*H):
-
(L)4323X(W)2998X(H)3700mm
-
Measuring:
-
Screw Measuring Combination Weigher
-
Filling range:
-
150-2000ml
-
Packing Speed:
-
10-50 bags/min
-
Bag width:
-
80-250mm
-
Bag Length:
-
80-350mm
-
Roll film Width& Diameter:
-
Max: (W)520mm, (D)320mm
-
Film Material:
-
Composite material:OPP/CPP,OPP/CE,MST/PE/PET/PE
-
Bag sealing type:
-
back sealing
-
Controller System:
-
CPU or PLC
-
Machine Material:
-
304# Stainless Steel & Carbon
-
Certification:
-
CE
Quick Details
-
Function:
-
Capping, COATING, Embossing, FILLING, Gluing, Labeling, Laminating, Sealing, SLITTING, Wrapping
-
Packaging Type:
-
Bags, Film, Foil, Pouch, Stand-up Pouch
-
Packaging Material:
-
Paper, Plastic, Wood
-
Voltage:
-
220V, Customized acceptable
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Dession Machinery
-
Dimension(L*W*H):
-
(L)4323X(W)2998X(H)3700mm
-
Measuring:
-
Screw Measuring Combination Weigher
-
Filling range:
-
150-2000ml
-
Packing Speed:
-
10-50 bags/min
-
Bag width:
-
80-250mm
-
Bag Length:
-
80-350mm
-
Roll film Width& Diameter:
-
Max: (W)520mm, (D)320mm
-
Film Material:
-
Composite material:OPP/CPP,OPP/CE,MST/PE/PET/PE
-
Bag sealing type:
-
back sealing
-
Controller System:
-
CPU or PLC
-
Machine Material:
-
304# Stainless Steel & Carbon
-
Certification:
-
CE
Grc / portland cement / CEMENTS Powder Packing Machine price
OPERATION VIDEO BY DS-520DZ
(PLEACE COPY THE ADDRESS AND PASTE IT TO THE WEBSITE ):
https://www.youtube.com/watch?v=ssIqucwGVQM&feature=youtu.be
MACHINE REAL PHOTOS

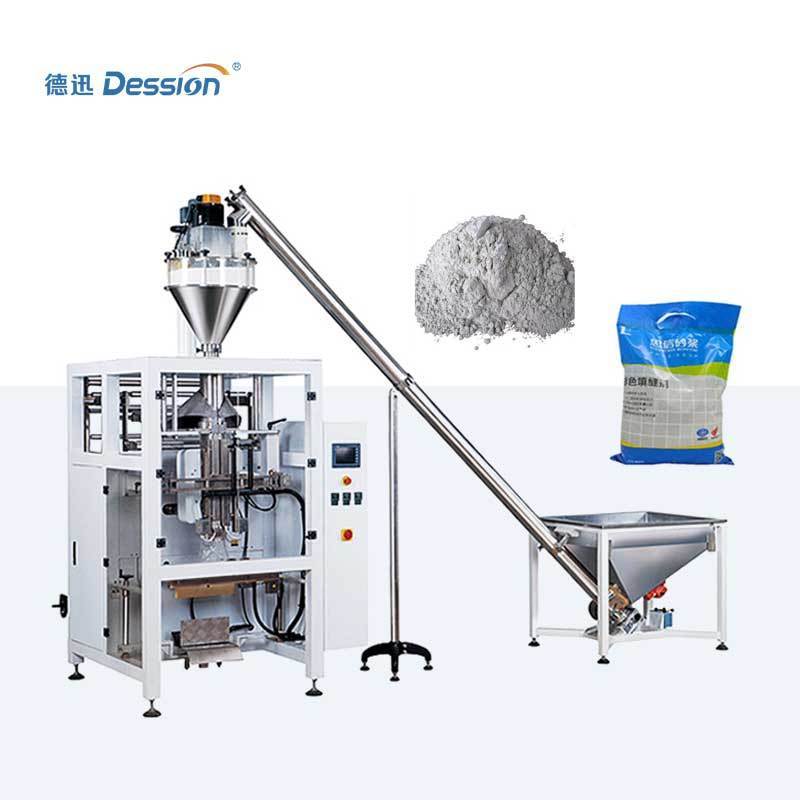

COMPLETE SET OF DS-520DZ MACHINE
Application
Dession screw measuring automatic matching system packing machine, It suitable to use in packing all kinds of powder material, such as: Flour, Milk, Hean powder, Seasoning, mask powder, fruit powder, medicines powder, Health food and so on.
All Kinds Of Powder Can Packing
Dession Provides various Bag stype for your choose:
FEATURES & ADVANTAGES
1.Efficient: Bag - making, filling, sealing, cutting, heating, date / lot number achieved in one time;
2. Intelligent: Packing speed and bag length can be set through the screen without part changes;
3. Profession: Independent temperature controller with heat balance enables different packing materials;
4. Characteristic: Automatic stop function, with safe operation and saving the film;
5. Convenient: Low loss, labor saving, easy for operation and maintenance.
Dession electrical accessories offer you
2 YEARS WARRANTY ,
& FREE LIFE TIME MAINTAINANCE
Technical Specifications between Dession similar machines
| Model | DS-320L | DS-420L | DS-520L | DS-720L |
| Measuring Range | 150 ~ 150ml | 150-1500ml | 150~2000mL | 150~4000ml |
| Packaging Speed | 5 ~ 70bags/min | 5-60bags/min | 10~50bags/min | 10~40bags/min |
| Bag Width | 50 ~ 150mm | 60-200mm | 80~250mm | 100350mm |
| Bag Length | 80 ~ 240mm | 80-300mm | 80~350mm | 100~450mm |
| Film Roll Width | Max.320mm | Max.420mm | Max:520mm | Max:720mm |
| Machine Size | (L)1185 x (W)935 x (H)1245mm | (L)1217 x (W)1015 x (H)1343mm | (L)1488*(W)1080*(H)1490mm | (L)1716*(W)1260*(H)1820mm |
| Machine Weight | 550KG | 650KG | 750KG |
900KG
|
Optional device for your choose:
1. Date Coder
2. Hole Punching Device( Pinhole, Round hole, the butterfly hole )
3. Linking bag control device
4. Air-filling Device
5. Air Exhaust Device
6. Tear Notch Device
5. Nitrogen inflation device
6. Gusset bag
QUALITY GUARANTEE
CE Certificate with European Standard
