Shinewash commercial rollover car washing machine automatic self service car washing tools and equipment for car wash business

Shinewash commercial rollover car washing machine automatic self service car washing tools and equipment for car wash business

FOB Reference Price: Get Latest Price

≥1 Sets

US $22500

≥2 Sets

US $22000

≥5 Sets

US $21500

≥10 Sets

US $21000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Size:: L2850*W3850*H3000mm

Material:: Galvanized Steel

Warranty:: 3 Year

Item:: rollover car wash machine

Water Supply:: Pipeline DN25, Flow≥100L/min

Power Supply:: 380V 50HZ

Air Supply:: Pressure 0.6-0.8Mpa

Wash Speed:: 2.5-5min/car

Water consumption:: 60-80L/car

Usage:: Automatic Car Wash

Washing System:: Service 24 hours

Customization:: Accepted

Keyword:: car washing tools and equipment

Quick Details

Place of Origin:: Henan, China

Brand Name:: Shinewash

Model Number:: S3

Size:: L2850*W3850*H3000mm

Material:: Galvanized Steel

Warranty:: 3 Year

Item:: rollover car wash machine

Water Supply:: Pipeline DN25, Flow≥100L/min

Power Supply:: 380V 50HZ

Air Supply:: Pressure 0.6-0.8Mpa

Wash Speed:: 2.5-5min/car

Water consumption:: 60-80L/car

Usage:: Automatic Car Wash

Washing System:: Service 24 hours

Customization:: Accepted

Keyword:: car washing tools and equipment

Shinewash commercial rollover car washing machine automatic self service car washing tools and equipment for car wash business

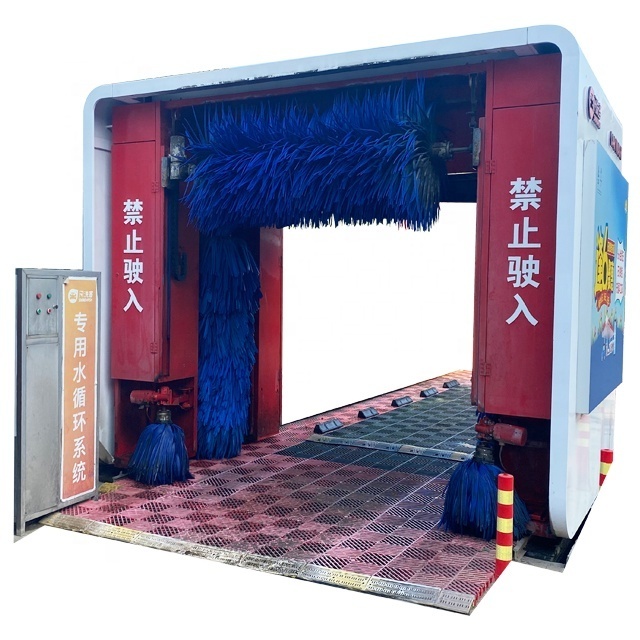

S3 Rollover Car Wash Machine

Features:

1# Efficient washing, highly automated, safe and convenient, without manual labor;

2# 4 Wash modes for choice, and support other wash mode customization

3# Machine frame uses high quality thickened galvanized steel material, service life more than 15 years!

4# 3 year warranty support, long life time after-sales service;

5# Supply machine appearance and color customization service.

The main frame is made of high quality normalized steel plate with a thickness of more than 3mm. The plate is processed by laser cutting to accurately locate the position of each component, and then it is formed to plate by a bending machine. After sandblasting, galvanizing, and painting, it is assembled by mortise and tenon joint. The standard modular design of the whole machine is strong and never deformed; the anti-rust process is firstly phosphatized and galvanized, with external high-temperature car paint, the machine is absolutely guaranteed to have a long service life (15 years of service life).

Mitsubishi PLC Control System

Japanese Mitsubishi PLC control system is used to control the washing procedures precisely, together use with banner photoelectric sensor

High quality Motor Reducer

Famous brand reducer brand, IP67 waterproof, dustproof and shakeproof, it is very durable and energy saving, and high working performance.

AirTAC Air Cyclinder

The cylinder body is made of high-precision stainless steel pipe with high strength, corrosion resistance and compact size,

Siemens Frequency Converter

The frequency converter is mainly used to control and regulate the speed of three-phase AC asynchronous motor, with stable performance and super overload capacity

Banner Photoelectric Sensor

American banner photoelectric sensor is known as the central system of the car washing machine, both protect the machine and washed vehicles without damages, achieve safe washing.

Pepperl+Fuchs Proximity Switch

Pepperl+Fuchs proximity switch is used to control the movement of the brushes, keep a certain distance of the car, so as to protect both the machine and the washed vehicles.

* Imported Quality EVA Brush

Solid, non porous, soft and safe, no damage to paint, no sediment, no water absorption. The car body and tire parts are
respectively configured with soft and hard brushes with different flexibility, and completely wrapped cleaning, it can not only
ensure that the paint is not damaged, but also thoroughly clean the hub and other parts that are easy to accumulate dirt.

* New Intelligent Air drying Control System

Shinewash car washing machine adopts a 4-fan fixed air drying system, which can automatically adjust the air drying power according to the vehicle model, reducing power consumption and saving energy under the condition of ensuring the air drying rate of more than 95%. The main body of the fan adopts turbine type, with noise reduction of more than 60%.

Product Paramenters

Product Name	S3 Rollover Automatic Car Wash Machine
Material	Galvanized Steel (stainless steel is optional)
Function	Auto car washing unmanned
Wash speed	2.5-5min/car
Machine size	L2850W3850H3000mm
Installation size	L11000W3800H3100mm
Total power	25Kw
Drying fan power	5.5Kw (4sets)
Water supply	Pipeline DN25, Flow≥100L/min
Power supply	380V 50HZ
Water consumption	60-80L/car
Electricity consumption	0.6Kwh/car
Shampoo consumption	10-20ml
Water wax consumption	10-20ml
Warranty	3 Year

Products Usage

Wash Mode

Customer feedback

Company Introduction

ShineWash is a leading domestic technology enterprise integrating R&D, production, sales, after-sales and operation of car wash machines. It sells and invests more than 1,000 fully automatic car wash machine annually. ShineWash has completed two rounds of venture capital and total financing amount is over 100 million. The production base is located in the airport area of Zhengzhou City, Henan Province, has 200 acres of workshops and dozens of R&D personnel.

Shinewash always adhere to the needs of customers as the guide, in order to create high-quality, high-reliability, energy-saving automatic car wash equipment, to provide a variety of high-quality services.
Choose us, you will choose the quality and credibility. Shinewash, make the life easier!

Certifications

Packing&Shipping

Shinewash Rollover 5 brushes automatic carwash car washing machine for cars Packaging Show :

FAQ

Q. What size cars S3 automatic rollover car wash machine can apply for ? A: Maximum car wash size: 6000*2100*2100mm.

Q. What's time cost for complete fine wash of S3 automatic rollover car wash machine? A. Complete fine wash with high pressure water spray, wax, foam and air drying totally cost about 2-5 minutes. Q. How about the air drying result? A. Uses design of air fluid mechanics principle to achieve long-distance high-pressure air cylinder, can reach 95% drying result. Q. What's power supply required for running S3 automatic rollover car wash machine? A. S3 automatic car wash machines require 3 phase industry power supply, in China the standard is 380V/50Hz, if customer require different voltage or frequency, we support customization service. Q. How to make installation and after sale service? A* If there’s an overseas subsidiary available in your region, you can contact our local technician to support your installation, training and after sale service. * If an overseas subsidiary can’t be found in your region, we can dispatch technician to support your installation and training, but the traveling expense should be on customer’s account, this will include visa cost, air tickets cost, hotel with restaurant cost, and customer need to pay for technician salary USD100/day. Q. What need to be prepared before machine installation? A* 3 phase industry power supply, 25Kw. * Water supply, with a water tank. (2000 liters) * Air compressor 1 set. * Floor cement thickness need to be more than 20cm. * Scaffold 2 pcs. * Electric Hammer 1 pc, configurator 10, 14, 16 drills each one piece. * Electric Welder 1 pc. * Polisher 1 pc. * Infrared Level 1 pc. * Rough twine 10 meters. * Hand Electric Drill 1 pc. Q. What's the warranty of S3 automatic rollover car wash machine? A. We offer 3 years warranty for complete machine, all spare parts included,
