Quick Details
-
Applicable Models:
-
Fit for most of cars
-
Combination:
-
other
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
V317
-
Warranty:
-
1 Years
-
Languages:
-
English, German, ltalian, Dutch, French, spanish, Chinese, Russian.
-
Applicable Vehicle:
-
Most Cars Can Be Used
-
Dimensions:
-
168*89*25mm
-
Product Name:
-
Car OBD2 EOBD Code Scanner
-
Display:
-
2.8inches
-
Operating Temperature:
-
-20 ~65c
Quick Details
-
Car Fitment:
-
Bahman
-
Voltage:
-
no, 12~24V
-
Power:
-
no
-
Applicable Models:
-
Fit for most of cars
-
Combination:
-
other
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
V317
-
Warranty:
-
1 Years
-
Languages:
-
English, German, ltalian, Dutch, French, spanish, Chinese, Russian.
-
Applicable Vehicle:
-
Most Cars Can Be Used
-
Dimensions:
-
168*89*25mm
-
Product Name:
-
Car OBD2 EOBD Code Scanner
-
Display:
-
2.8inches
-
Operating Temperature:
-
-20 ~65c

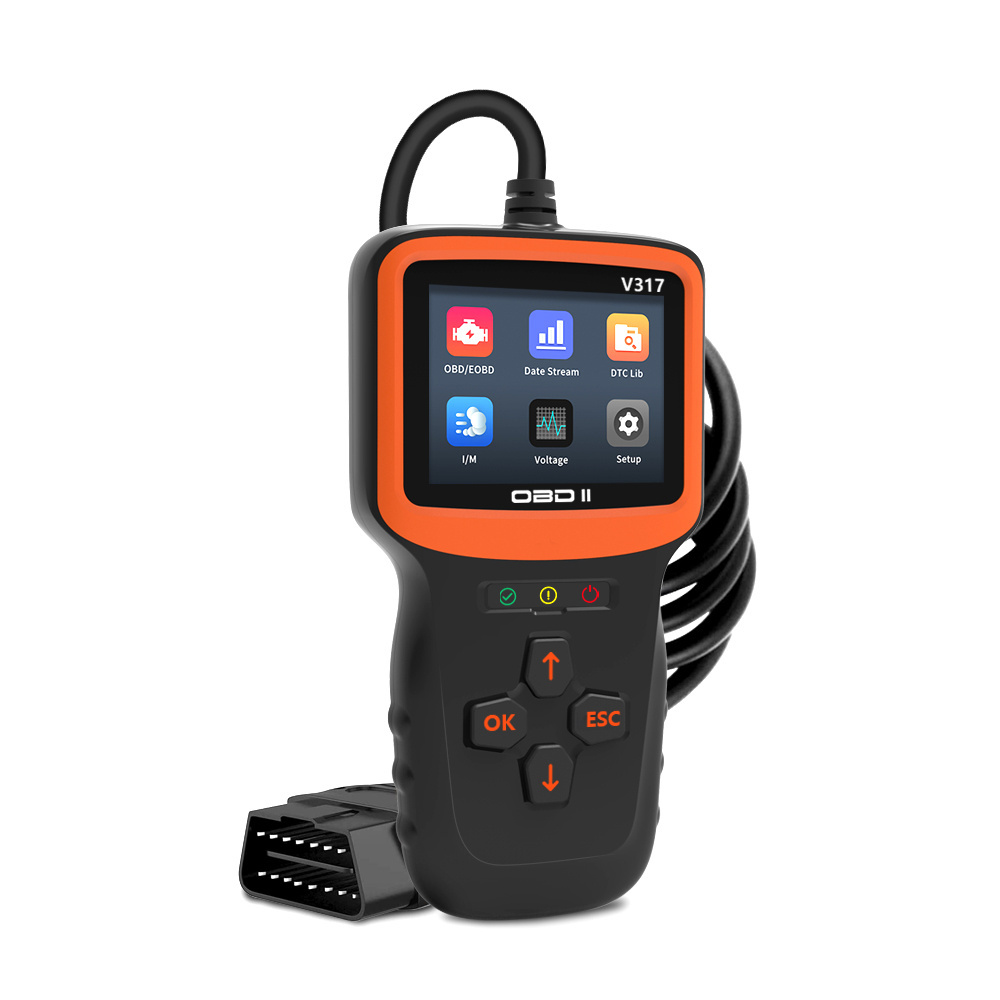

OBD2 Code Scanner CAN BUS car Code Reader OBD II Diagnostic Tool
TooI description
1. The OBD plug is connected to the OBD connector of the vehicle. 2. 2.8 color display screen, resolution: 240*320
3. press the button to the right or page up
4. confirm key
4. EsC to return.
5. press the button to the left or next page
6. Green light: support the vehicle detection
yellow light: lt is read that the vehicle is faulty
Red light: The product is energized normally
product parameters
working voltage: DC9 ~16V
working current: about 50mA
operating environment: -20 ~65c
storage temperature: -30 ~80c
Dimensions: 168*89*25mm
Eight languages: English, German, ltalian, Dutch, French, spanish, Chinese, Russian.
Main functions
support nine standard protocols of OBD ll/EOBD.
support car battery voltage test.
support gasoline model reading, clearing vehicle fault code, reading data stream,freezing frame information, checking MlL status,
reading vehicle information,
oxygen sensor test, fuel evaporation system
(mode 8)test.
support fault code information query.
support data stream playback function, view/delete fault code, data stream, and freeze frame information.
support eight languages English, German, ltalian, Dutch, French, spanish, chinese, Russian.
support Agreement
1.sAE J1850 pwM(41.6kbaud)
2.sAE J1850 Vpw(10.4kbaud)
3.lso9141-2(5 baud init, 10.4kbaud)
4.lso14230-4 kwp(5 baud init, 10.4 kbaud)
5.lso14230-4 kwp(fast init, 10.4 kbaud)
6.lso15765-4 CAN(11bit lD, 500 kbaud)
7.lso15765-4 CAN(29bit lD, 500 kbaud)
8.lso15765-4 CAN(11bit lD, 250 kbaud)
9.lso15765-4 CAN(29bit lD, 250 kbaud)
product accessories
Accessories Host *1 Manual *1
