Quick Details
-
Material of lock body:
-
304 stainless steel
-
Size:
-
68*70*18mm
-
Tensile strength:
-
500KG
-
Working temperature:
-
-20℃~+60℃
-
Protection level:
-
IP66
-
Working current:
-
5%~85%RH
-
Applicable door weight:
-
4kg~50kg
-
Response time:
-
≤500 ms
-
Service life:
-
500,000 times
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
KERONG
-
Product Name:
-

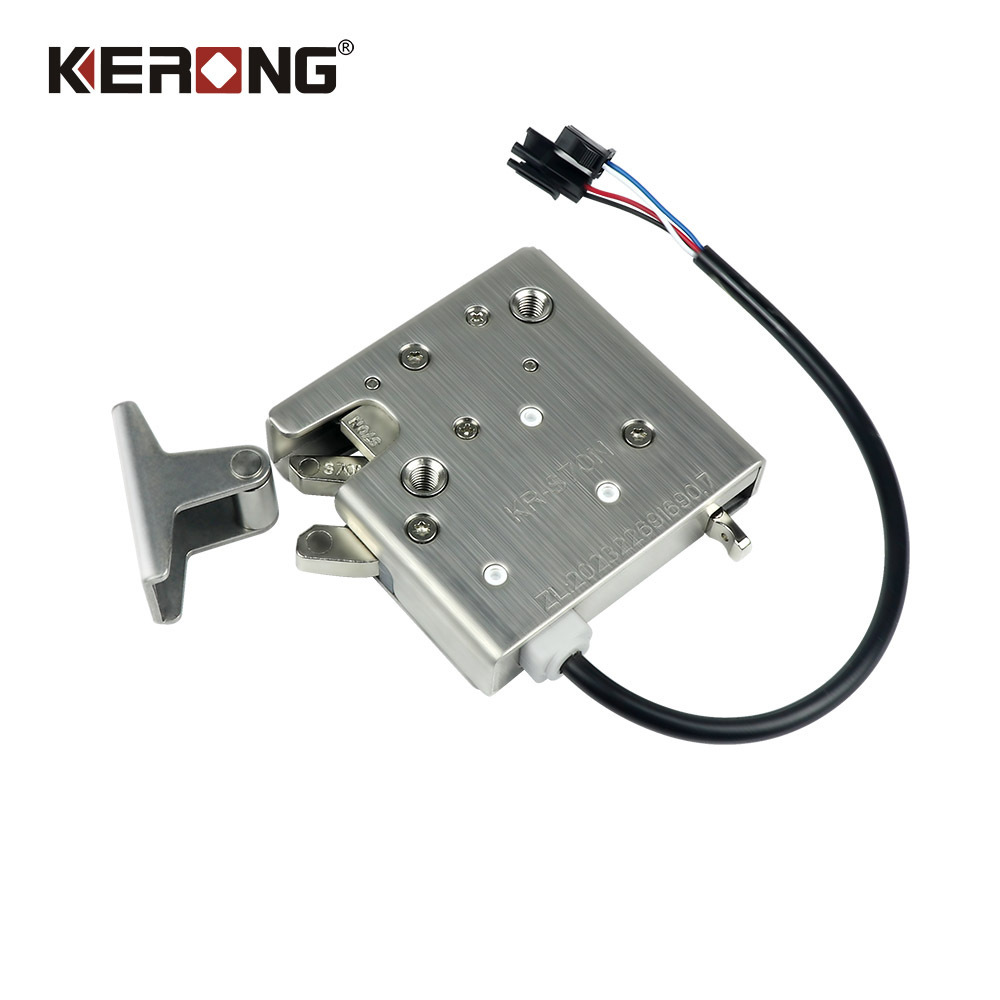

Waterproof Electronic Rotary Latch
-
Material of lock body:
-
304 stainless steel
-
Size:
-
68*70*18mm
-
Tensile strength:
-
500KG
-
Working temperature:
-
-20℃~+60℃
-
Protection level:
-
IP66
-
Working current:
-
5%~85%RH
-
Applicable door weight:
-
4kg~50kg
-
Response time:
-
≤500 ms
-
Service life:
-
500,000 times
Product Paramenters
|
Brand
|
KERONG
|
|
Product Model
|
KR-S70N
|
|
Material
|
304 Stainless Steel
|
|
Size
|
68*70*18mm
|
|
Weight of Lock
|
305g
|
|
Color
|
Silver
|
|
Surface Treatment
|
Brushed texture surface
|
|
Working Voltage
|
8~24V
|
|
Working Current
|
70mA@12V
|
|
Power Consumption
|
0.84w
|
|
Working Life
|
200,000 times
|
|
Detective Switch
|
Omron
|
|
Drive Mode
|
Motor
|
|
Application
|
Gym Locker, Electric Cabinet, Parcel Storage Locker, Supermarket Locker, etc
|
|
Certifications
|
CE, RoHS, FCC
|
Product Specification
1. AWG24 wires with PVC protecting tube
2. Support customizing wires and connectors
3. High strength & steel construction:Operates against high mechanical loads
4. Convenient mechanical override enables manual release during power failure.
5. Internal Omron micro switch for latch open/close output signal, 500,000-time working life.
6. Compact latch housing minimizes space requirements and maintains clean, concealed exterior look
2. Support customizing wires and connectors
3. High strength & steel construction:Operates against high mechanical loads
4. Convenient mechanical override enables manual release during power failure.
5. Internal Omron micro switch for latch open/close output signal, 500,000-time working life.
6. Compact latch housing minimizes space requirements and maintains clean, concealed exterior look
