Quick Details
-
Model Number:
-
AE-Pure Series
-
Place of Origin:
-
China
-
Throughput:
-
1~96
-
Process volume:
-
50~10000μl
-
Collection efficiency:
-
>95%
-
Magnetic rod number:
-
20,24,32,96
-
Purification accuracy:
-
100 copy sample positive rate>95%
-
Stability:
-
CV<5%
-
Heating for lysis tube:
-
Ambient temperature~120°C
-
Storage Capacity:
-
more than 100 programs
-
Pollution Control:
-
UV light
-
Power Supply:
-
450W
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Brand Name:
-
AELAB
-
Model Number:
-
AE-Pure Series
-
Place of Origin:
-
China
-
Throughput:
-
1~96
-
Process volume:
-
50~10000μl
-
Collection efficiency:
-
>95%
-
Magnetic rod number:
-
20,24,32,96
-
Purification accuracy:
-
100 copy sample positive rate>95%
-
Stability:
-
CV<5%
-
Heating for lysis tube:
-
Ambient temperature~120°C
-
Storage Capacity:
-
more than 100 programs
-
Pollution Control:
-
UV light
-
Power Supply:
-
450W
Products Description
Nucleic Acid Purification System
Products introduction
Auto-Pure series products is an automated system for purifying DNA, RNA, proteins and cells from a variety of sample materials, such as blood, cells and tissue samples. The Auto-Pure purification technology is automated and enables high-speed, high-quality processing with no cross-contamination between the samples or reagent carry-over.
The following automated instruments platforms are available for different processing requirements:

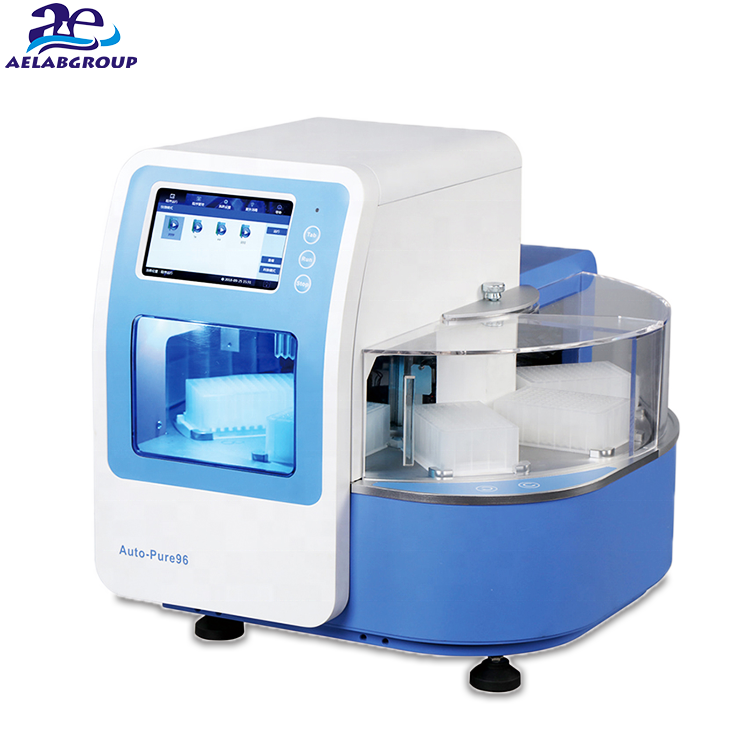

Auto-Pure96
1.Purification of 96 samples in one run
2.Processing volume of 50-1000ul with 2.2ml Deep Well 96 plate
Auto-Pure24
1.Purification of 24 samples in one run
2.Processing volume of 50-10000ul with 14.6ml Deep Well 24 plate
Auto-Pure32A
1.Purification of 32 samples in one run
2.Processing volume of 10-1000ul with 2.2ml Deep Wel l 96 plate
Auto-Pure20A
1.Purification of 20 samples in one run
2.Processing volume of 50-3000ul with 4ml-tube strips for Auto-Pure20A
Auto-Pure20B
1.Purification of 20 samples in one run
2.Processing volume of 50-5000ul with 6.5ml-tube strips for Auto-Pure20B
Auto-Pure16A
1.Purification of 16 samples in one run
2.Processing volume of 10-1000ul with 2.2ml Deep Well 96 plate
Auto-Pure10B
1.Purification of 10 samples in one run
2.Processing volume of 50-5000ul with 6.5ml-tube strips for Auto-Pure10B
Auto-Pure10BS (with dry bath)
1.Purification of 10 samples in one run
2.Processing volume of 50-5000ul with 6.5ml-tube strips for Auto-Pure10B
Auto-Pure10BW (without heating for lysis and elution)
1.Purification of 10 samples in one run
2.Processing volume of 50-5000ul with 6.5ml-tube strips for Auto-Pure10B
Operational advantages
Antipollution measures
Simple and intelligentized operation
Description
Process samples up to 1ml, 3ml or 5ml
With the Auto-Pure series can process up to 32 samples per run when the working volume is up to 1ml. With the ability to change the instrument configuration, the customers can elevate the sample processing volume up to 3ml or 5ml to obtain higher yields of the purified product, and the throughput up to 20 samples.
Product introduction
Auto-Pure10B, Auto-Pure10BW, Auto-Pure10BS and Auto-Pure16A is a miniaturized magnetic bead method nucleic acid extraction and purification instrument, which is developed on the basis of Auto-pure20B and Auto-pure32A. Auto-pure10 series can extract up to 10 samples at the same time, with a maximum sample volume of 5ml. Auto-pure10BS combined with dry bath heating function, small instruments in volume, it is an overwhelming choice for large sample extraction on site; Auto-pure16A can accept 16 samples at most simultaneously, maximum sample volume is 1ml
Magnetic head for AE-Pure96
AE-Pure96 consumable
AE-Pure96 consumable
Magnetic head for AE-Pure24
AE-Pure24 consumable
AE-Pure24 consumable
AE-Pure32A consumable
AE-Pure20A consumable
AE-Pure20B consumable
Special features for Auto-Pure20A
1.Patented design of 9-tubes strip
2.Process samples up to 3ml and Max.sample volume 1.2ml
3.Reducing reagent waste and good for research use
Special features for Auto-Pure20B
1.Patented design for 5ml tubes strip
2.Process samples up to 5ml and Max.sample volume 2ml
3.Patented design for line-mixing the sample, it’s good for cell free fetal DNA and next-generation sequencing technology and non-invasive prenatal diagnosis
Matching product for Auto-Pure series: SealBio-2 SealBio-2 of Adapter for Auto-Pure tube strips
Matching product for Auto-Pure20 series: FCM-1 FCM-1 Film Cutting Machine
Features & Specification
Features:
Auto-Pure32A/Auto-Pure20A/Auto-Pure20B:
1.Easily to use with 7 inch touch screen
2.Very simple operation (easy to install, operate, maintain) without computer
3.Very fast extraction protocol, 15~40 minutes / cycle depending on sample type and method
4.Universal built-in program for easy using and high purity and excellent yield of nucleic acid
5.UV lamp to avoid cross contamination
7.Drawer design to prevent possible injuries
6.Open system can optimize purification proposal according to various magnetic beads kits
8.Capable of extracting 1~20 samples or 1~32samples per run, and process samples up to 1ml, 3ml and 5ml
Auto-Pure10 series
Auto-Pure10B
1.Purification of 10 samples in one run
2.Processing volume of 50-5000ul with 6.5ml-tube strips for Auto-Pure10B
Auto-Pure10BS (with dry bath)
1.Purification of 10 samples in one run
2.Processing volume of 50-5000ul with 6.5ml-tube strips for Auto-Pure10B
Auto-Pure10BW (without heating for lysis and elution)
1.Purification of 10 samples in one run
2.Processing volume of 50-5000ul with 6.5ml-tube strips for Auto-Pure10B
Auto-Pure16A
1．Purification of 16 samples in one run
2．Processing volume of 10-1000ul with 2.2ml Deep Well 96 plate
Instrument features
1.3.4 inch touch screen, easy to use.
2.Temperature and protocols can be edited and saved according to different reagent requirements.
3.Short operation time: 15~40min per run
4.High yield of nucleic acid with low magnetic bead loss and good repeatability of results.
5.UV disinfection, avoid cross contamination.
6.Open system which can apply to different magnetic bead extraction reagent.
7.APP software (Android system) which can monitor the system in real time through mobile device.
8.Using the PC software, user operate easily the machine.
9.Screw rod design which guarantee high operating accuracy; large guide rail design makes the structure more reliable.
10.With QR code identification function, special reagent can be recognized, no need to program or obtain protocols.
11.Small volume, suitable for extraction on site.
Technical Specifications:
|
Type
|
Auto-Pure32A
|
Auto-Pure20A
|
Auto-Pure20B
|
Auto-Pure96
|
Auto-Pure24
|
||||
|
Throughput
|
1~32
|
1~20
|
1~20
|
1~96
|
1~24
|
||||
|
Process volume
|
50~1000ul
|
50~3000μl
|
50~5000μl
|
50~1000μl
|
50~10000μl
|
||||
|
Collection efficiency
|
>95%
|
>95%
|
>95%
|
>95%
|
>95%
|
||||
|
Magnetic rod number
|
32
|
20
|
20
|
96
|
24
|
||||
|
Plate types
|
96 Deepwell plate
|
3ml tube strip
|
5ml tube strip
|
96 Deepwell plate
|
24x14.6ml plate
|
||||
|
Purification accuracy
|
100 copy sample positive rate>95%
|
|
|
|
|
||||
|
Stability
|
CV<5%
|
|
|
|
|
||||
|
Heating for lysis tube
|
Ambient temperature~120°C
|
|
|
|
|
||||
|
Heating for elution tube
|
Ambient temperature~120°C
|
|
|
|
|
||||
|
Operation
|
7 inch color touch screen
|
|
|
|
|
||||
|
Extraction steps
|
Lysis, binding, washing and elution
|
|
|
|
|
||||
|
Storage Capacity
|
more than 100 programs
|
|
|
|
|
||||
|
Protocol Management
|
Create, edit, delete, protocol mode
|
|
|
|
|
||||
|
Pollution Control
|
UV light
|
|
|
|
|
||||
|
Lighting
|
Yes
|
|
|
|
|
||||
|
Extension interface
|
4 standard USB port, built-in SD card
|
|
|
|
|
||||
|
Exhaust
|
Fan
|
|
|
|
|
||||
|
Power Supply
|
450W
|
450W
|
450W
|
450W
|
450W
|
||||
|
Dimensions
|
400 × 470 × 450mm
|
400 × 520 × 450mm
|
400 × 520 × 450mm
|
560 × 620 × 500mm
|
560 × 620 × 500mm
|
||||
|
Weight
|
25Kg
|
28Kg
|
28Kg
|
54Kg
|
54Kg
|
||||
|
Type
|
Auto-Pure10B
|
Auto-Pure10BW
|
Auto-Pure10BS
|
Auto-Pure16A
|
|||
|
Throughput
|
1~10
|
1~10
|
1~10
|
1~16
|
|||
|
Process volume
|
50~5000ul
|
50~5000μl
|
50~5000μl
|
50~1000μl
|
|||
|
Collection efficiency
|
>95%
|
>95%
|
>95%
|
>95%
|
|||
|
Magnetic rod number
|
10
|
10
|
10
|
16
|
|||
|
Plate types
|
5ml tube strip
|
5ml tube strip
|
5ml tube strip
|
96 Deepwell plate
|
|||
|
Purification accuracy
|
100 copy sample positive rate>95%
|
|
|
|
|||
|
Stability
|
CV<5%
|
|
|
|
|||
|
Heating for lysis tube
|
Ambient temperature~120°C
|
|
|
|
|||
|
Heating for elution tube
|
Ambient temperature~120°C
|
|
|
|
|||
|
Operation
|
3.4 inch color touch screen
|
|
|
|
|||
|
Extraction steps
|
Lysis, binding, washing and elution
|
|
|
|
|||
|
Storage Capacity
|
more than 100 programs
|
|
|
|
|||
|
Software
|
APP software and PC software
|
|
|
|
|||
|
Pollution Control
|
UV light
|
|
|
|
|||
|
Lighting
|
Yes
|
|
|
|
|||
|
Extension interface
|
4 standard USB port, built-in SD card
|
|
|
|
|||
|
Exhaust
|
Fan
|
|
|
|
|||
|
Power Supply
|
300W
|
300W
|
300W
|
300W
|
|||
|
Dimensions
|
340 × 350 × 410 mm
|
340 × 350 × 410 mm
|
340 × 350 × 410 mm
|
340 × 350 × 410 mm
|
|||
|
Weight
|
18Kg
|
18Kg
|
18.5Kg
|
18Kg
|
|||
