Quick Details
-
Type:
-
K type thermocouple
-
temperature range:
-
0-250
-
model number:
-
WRKK
-
probe tube matarial:
-
SS316 / 304SS / 316L customized
-
accuracy:
-
+/-2.2C
-
structure:
-
wire type
-
probe diameter:
-
4mm,5mm,6mm customized
-
probe length:
-
30mm,50mm,80mm,100mm and customized
-
Wire material:
-
metal wire,PFE wire, silicon wire, fiberglass wire
-
wire length:
-
1 meter, 2meter, customized
Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
xbl
-
Model Number:
-
K
-
Type:
-
K type thermocouple
-
temperature range:
-
0-250
-
model number:
-
WRKK
-
probe tube matarial:
-
SS316 / 304SS / 316L customized
-
accuracy:
-
+/-2.2C
-
structure:
-
wire type
-
probe diameter:
-
4mm,5mm,6mm customized
-
probe length:
-
30mm,50mm,80mm,100mm and customized
-
Wire material:
-
metal wire,PFE wire, silicon wire, fiberglass wire
-
wire length:
-
1 meter, 2meter, customized

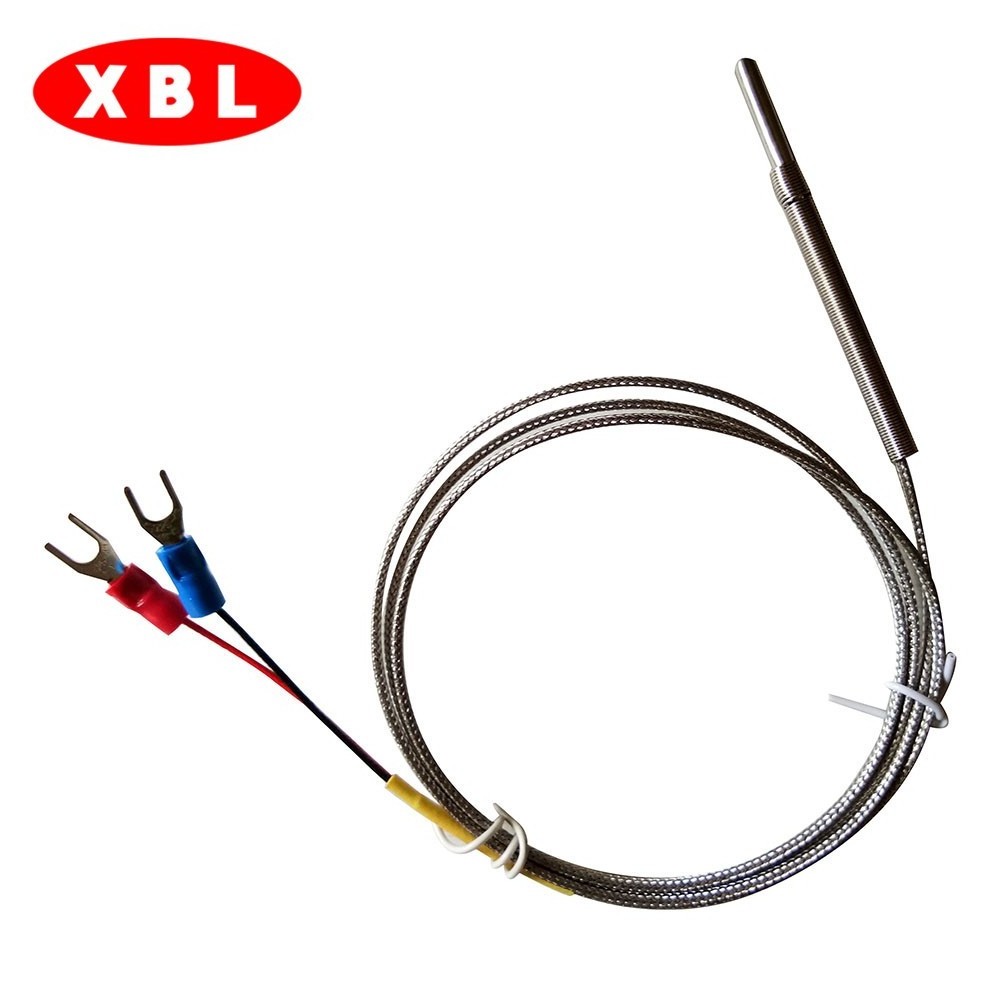

Stainless steel tube K type thermocouple
1.Detailed Product Description
1.mark:K
2. Probe material:SS316 Size:5*100mm
3.Wire material: 2M best metal wire
4.Temperature: 0~500C
5.ISO9001-2008
2.Specification
The type K is the most common type of thermocouple. It’s inexpensive, accurate, reliable, and has a wide temperature range. The type K is commonly found in nuclear applications because of its relative radiation hardness. Maximum continuous temperature is around 1,100C.
|
Thermocouple catelory |
Product model |
Graduation mark |
Thermometric scope |
Protection tubings |
Specification Total length |
|
|
Single Nickel chromium Nisiloy |
WRKK-_01 WRKK-_91 |
Ungroud
|
K |
0~800°C 0~1000°C |
304 321 310S GH3030 INCONEL600 |
Slef-determined by customers |
|
WRKK-_02 WRKK-_92 |
Ground |
|||||
|
Double Nickel chromium Nisiloy |
WEKK 2 -_01 WEKK 2 -_91 |
Ungro ud |
||||
|
WEKK 2 -_02 WEKK 2 -_92 |
Ground |
|||||
3.Order guidelines
1. Model
2. Graduation mark
3. Installation forms
4. Protecting tube diameter and materials
5. wire material and wire length
6. Using temperature
Water proof carton box or wooden box
